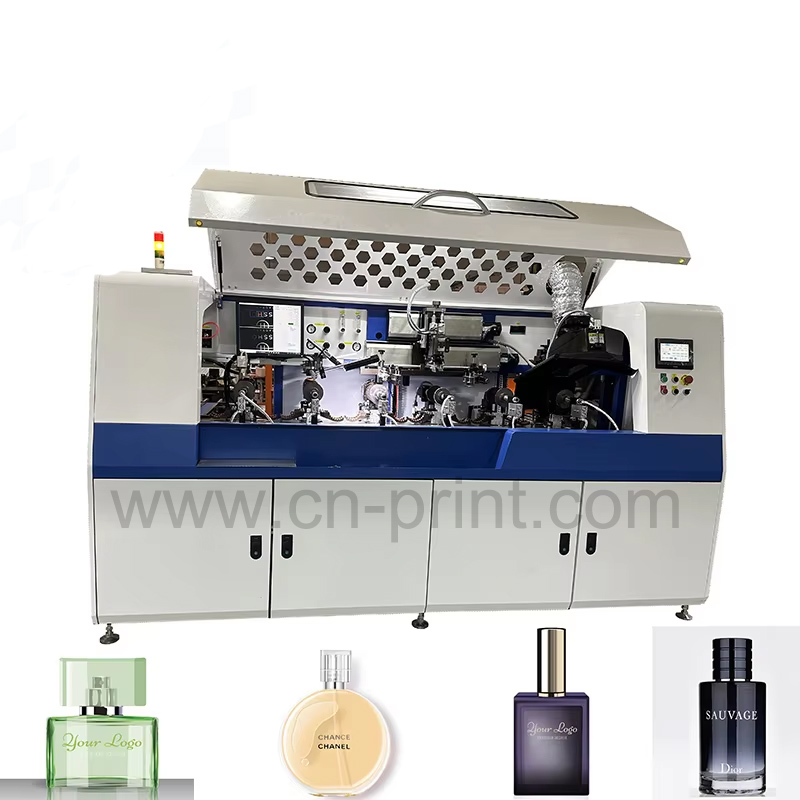

cosmetic bottle screen printing machine for Glass perfume Bottle water glass bottle Screen Printing machine with CCD Image positioning

Model No.︰LC-CNC106
Brand Name︰LC
Country of Origin︰China
Unit Price︰-Minimum
Order︰1 UNIT
Product
Contect Us

Product Details

1color Automatic Spain Glass Bottle Screen Printing Machine

Fast, Innovative, Convenient and Green

This full servo printing machine can print round, oval, square, polygonal plastic and glass products. The visual positioning system can locate the bottle bottom or bottle body.
Compact look and reduced overall dimensions make it suitable for small-sized companies as well.
User-friendly interface.

screen printing head can be replaced to hot stamping head,make multi color screen printing and hot stamping in one line.

CNC106 monochrome 6 station turntable machine, with double vision, electrostatic dust removal, flame treatment, LEDUV system, can print glass self-drying oil, LED oil, plastic UV oil, but also can change the hot foil head! Instead of traditional mechanical models, shuttle models!



Specification

Model No. LC-CNC106
Printing color 1 Color
Printing speed 2700-3600 pcs/h
Max Product size round diameter 100mm, length 300mm
Applicable products

Round ,Square,Oval and other special shape glass plastic bottles,

jars,cans ,cups

Left and right stroke of scraper 355 mm
Scraper, oil return knife up and down stroke Cylinder control 20mm, adjustable screw stroke 50mm
Compressed air 5-6 bar
Power supply 380V/50HZ
Total power 20 KW





Feature

1.Auto loading and unloading with multi axis servo robot.
2.Dust clean
3.Auto flame treatment before printing and UV LED curing after printing .
UV LED lamps and high-efficiency engines assure reduced energy consumption, Zero ozone emission and reduced CO2 production.
4.Auto printing system with all servo driven:printing heat ,mesh screen frame ,rotation etc.
all jigs installed with servo motors for rotation (no need gears, easy and fast products changeover)
5. Quick and easy change over from one product to another. All parameters automatic setting simply in touch screen. it only takes 20 minutes to debug each color.
6.All ethercat servo motors with industrial PLC control&touch screen operation system,internet cable connection available,easy for fucture maintenance and ungrading.
7.Adopt linear high-speed precision CCD scanning : for cylindrical products without registration point, repeat print to be double colors.
8. Well built machine house with CE standard safety design.
9.Can use UV ink or thermoplastic ink.

Machine Details

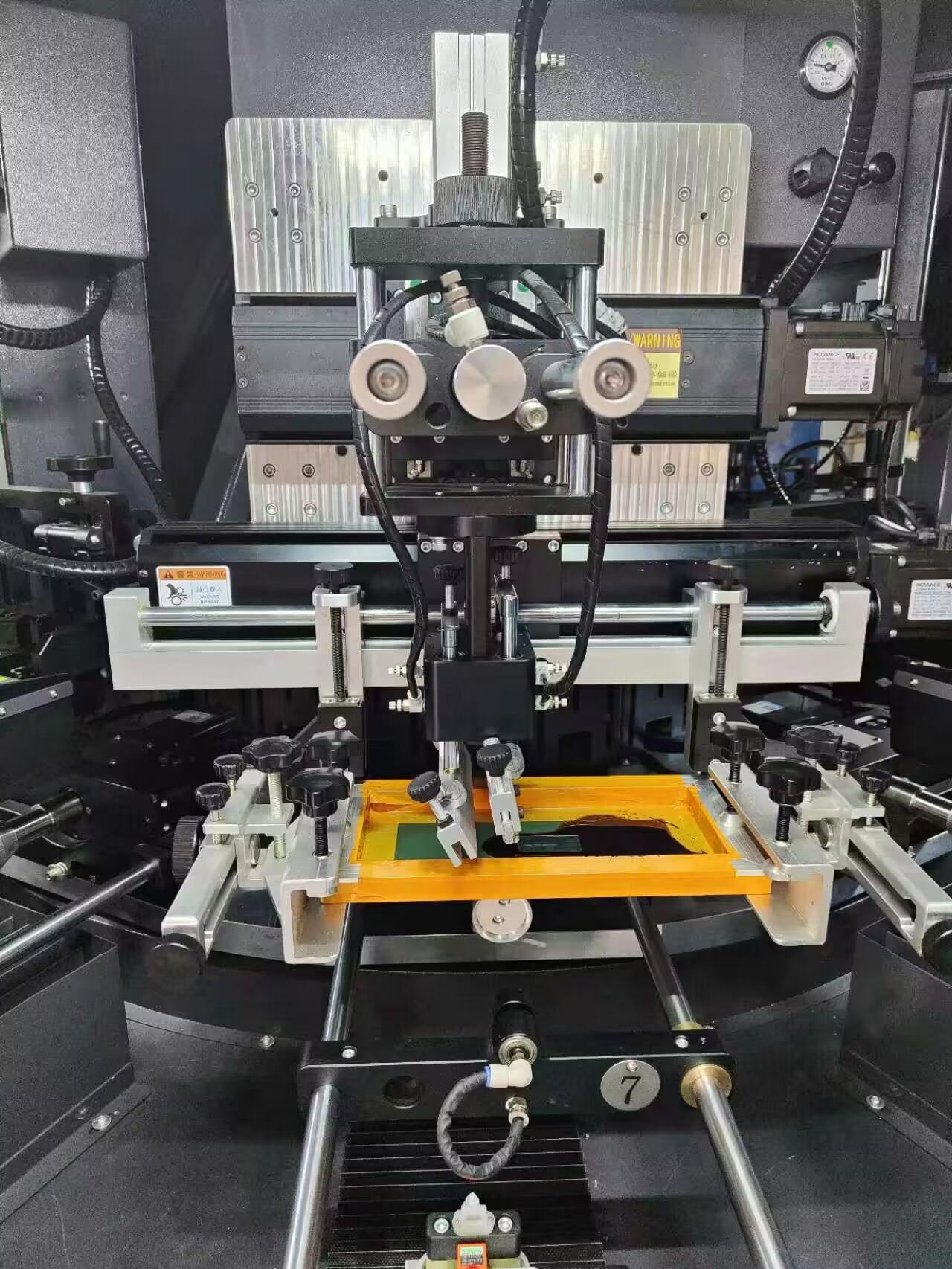

turntable printing

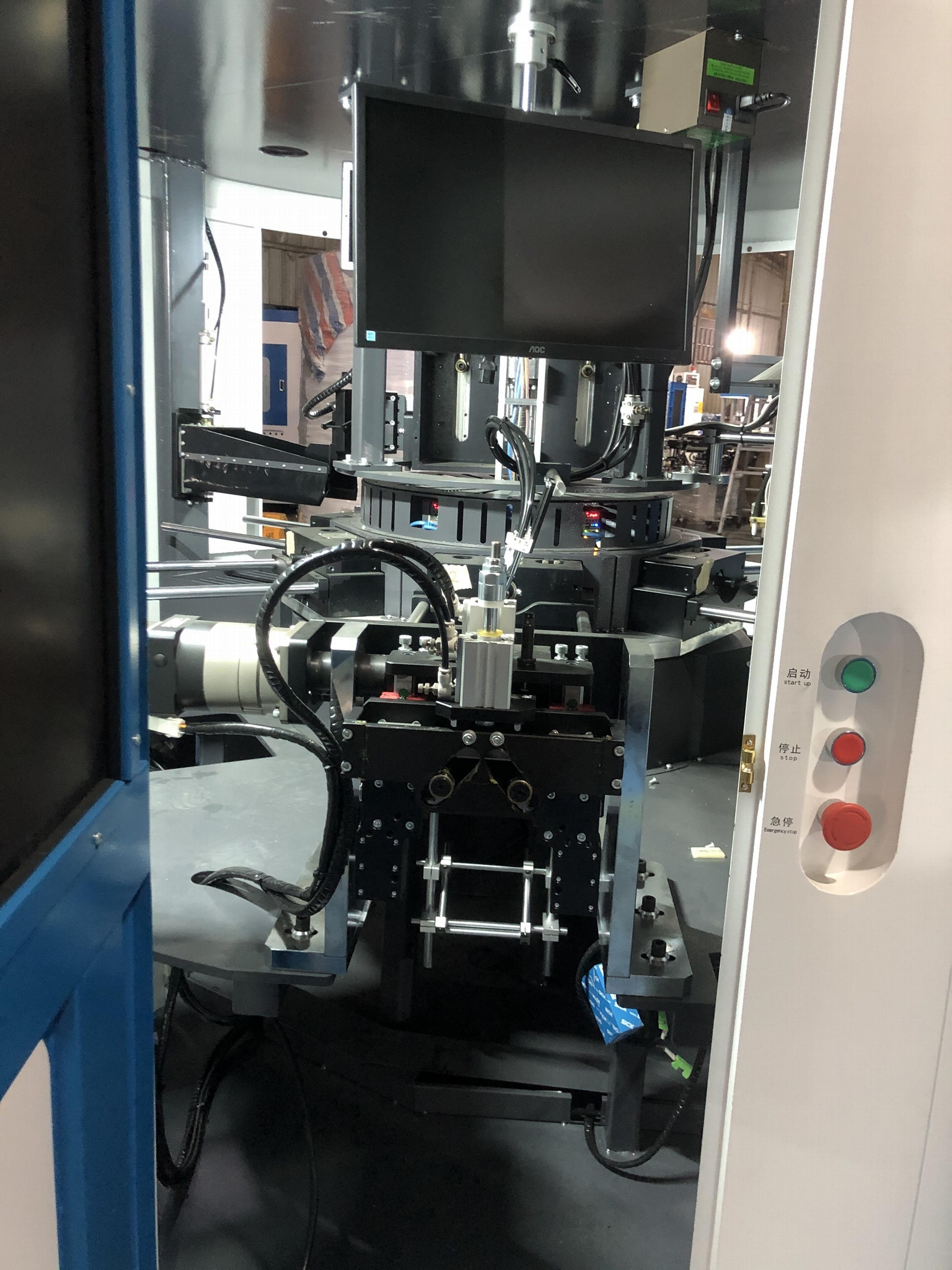

Loading and unloading manipulator

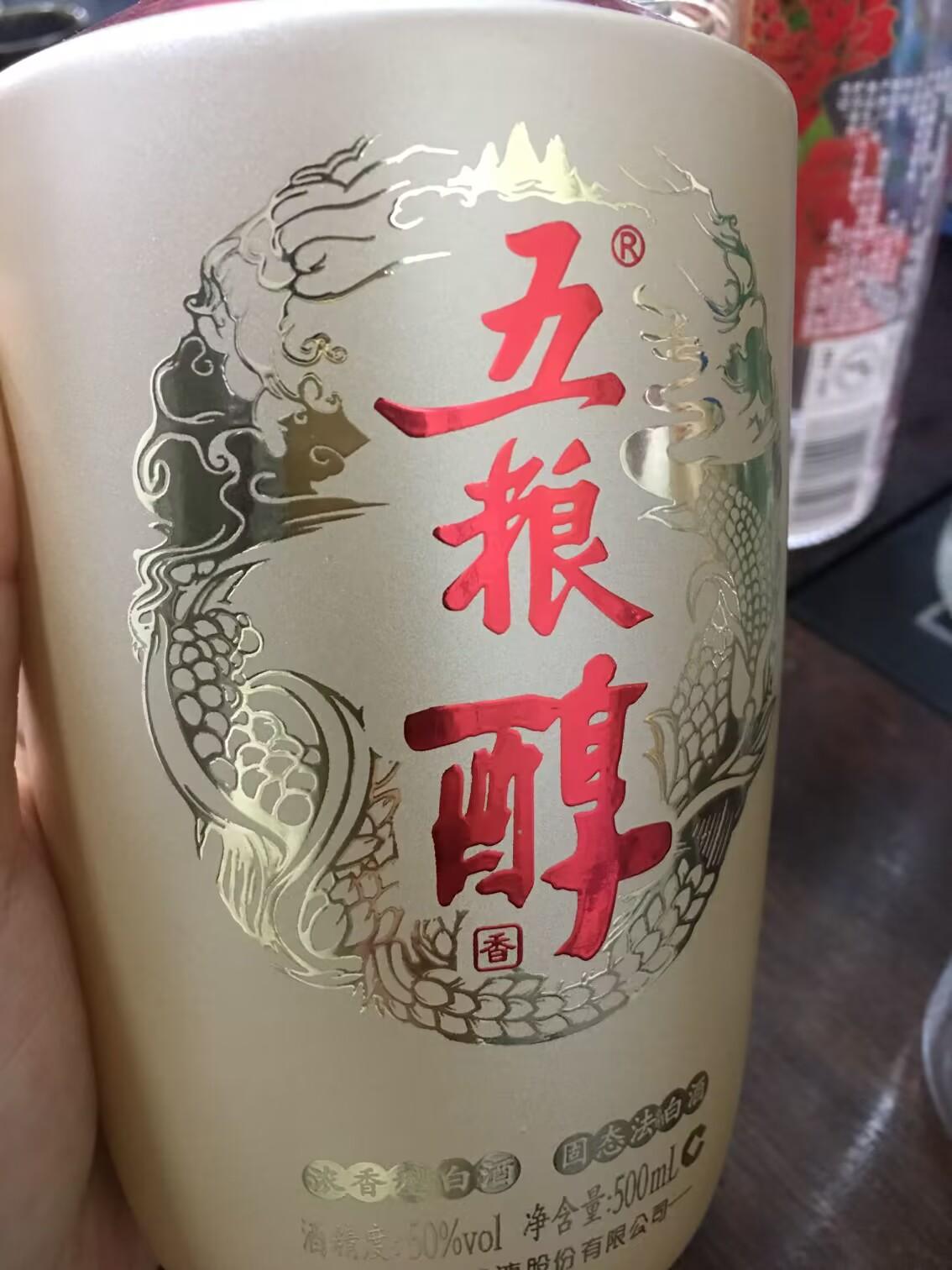

Printing Sample

Price Terms︰ FOB Shenzhen , China

Packing︰ Wooden case

Lead Time︰ 60 Days

Standards Certificate︰ CE

Application area︰ Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, C

Main Parts︰ PLC, Pressure vessel, servo motor, CCD image positioning
