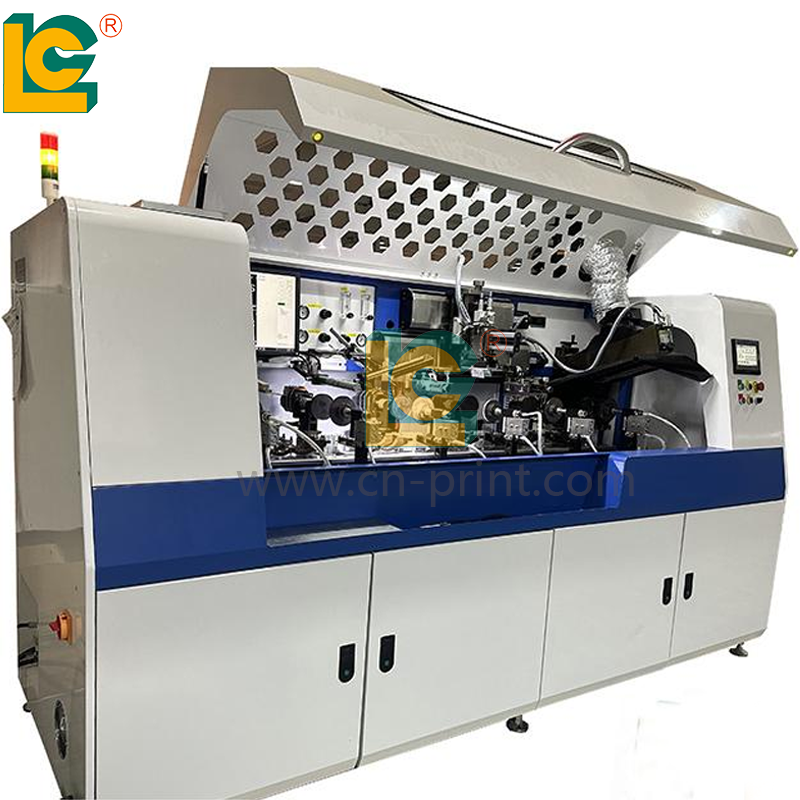

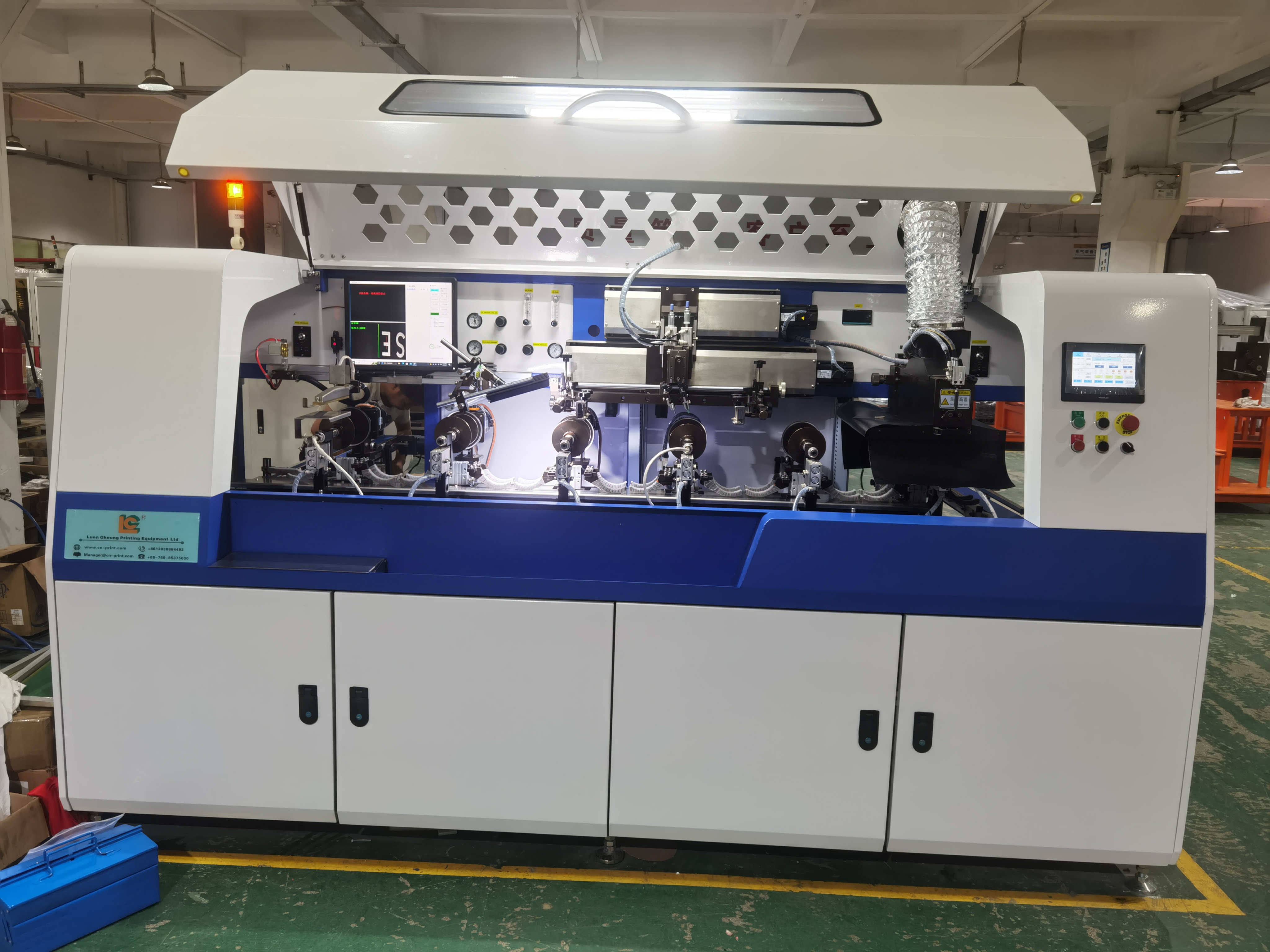

Plastic Glass Bottle Screen Printer CNC106-S Automatic metal With Shuttle for glass bottle drink custom perfume bottle wine bottles

Automatic Silk Screen Printing machine For Glass Bottle Jar plastic cup

• This machine with auto feeding ,flame treatment,CCD image positioning ,CNC Servo screen printing ,UV curing ,auto unloading.
• It fit for printing round, oval, square, and other special shape glass and plastic ,metal products. The visual positioning system can locate the bottle bottom or bottle body.

Specification

Feature

1.Auto loading and unloading with multi axis servo robot.
2.Dust clean
3.Auto flame treatment before printing and UV LED curing after printing .
UV LED lamps and high-efficiency engines assure reduced energy consumption, Zero ozone emission and reduced CO2 production.
4.Auto printing system with all servo driven:printing heat ,mesh screen frame ,rotation etc.
all jigs installed with servo motors for rotation (no need gears, easy and fast products changeover)
5. Quick and easy change over from one product to another. All parameters automatic setting simply in touch screen. it only takes 20 minutes to debug each color.
6.All ethercat servo motors with industrial PLC control&touch screen operation system,internet cable connection available,easy for fucture maintenance and ungrading.
7.Adopt linear high-speed precision CCD scanning : for cylindrical products without registration point, repeat print to be double colors.
8. Well built machine house with CE standard safety design.
9.Can use UV ink or thermoplastic ink.

Machine Details

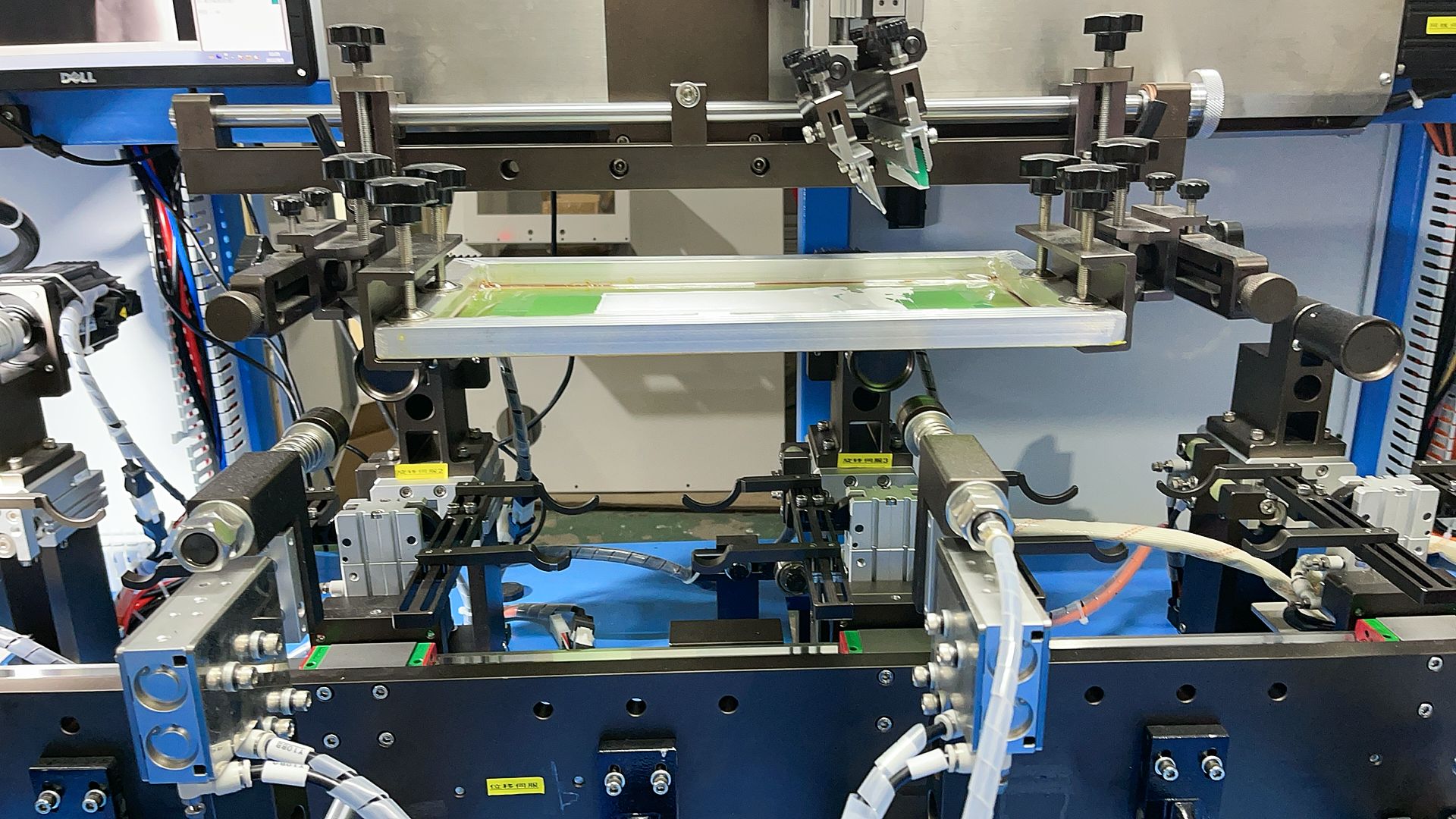

screen printing

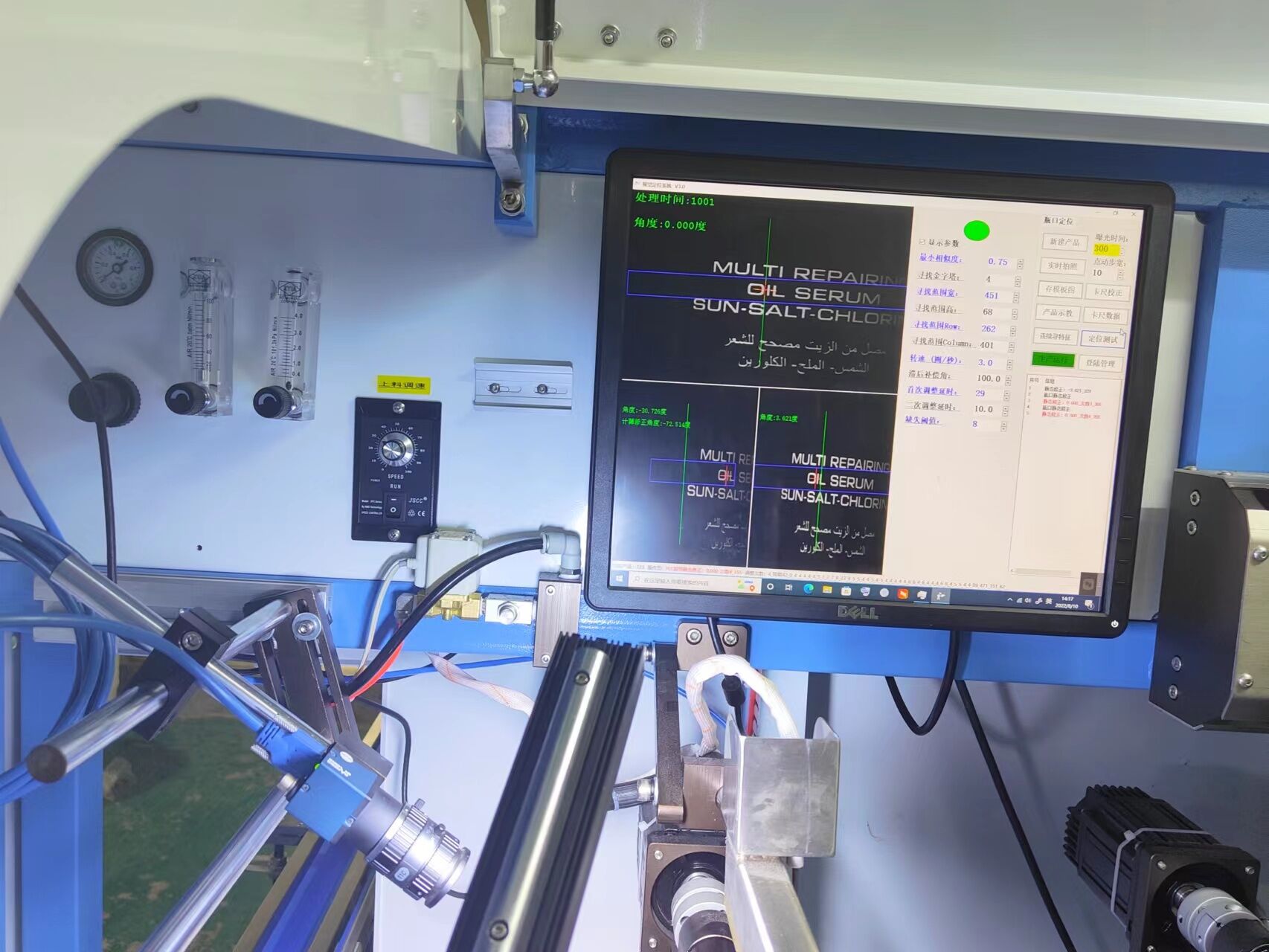

displayer

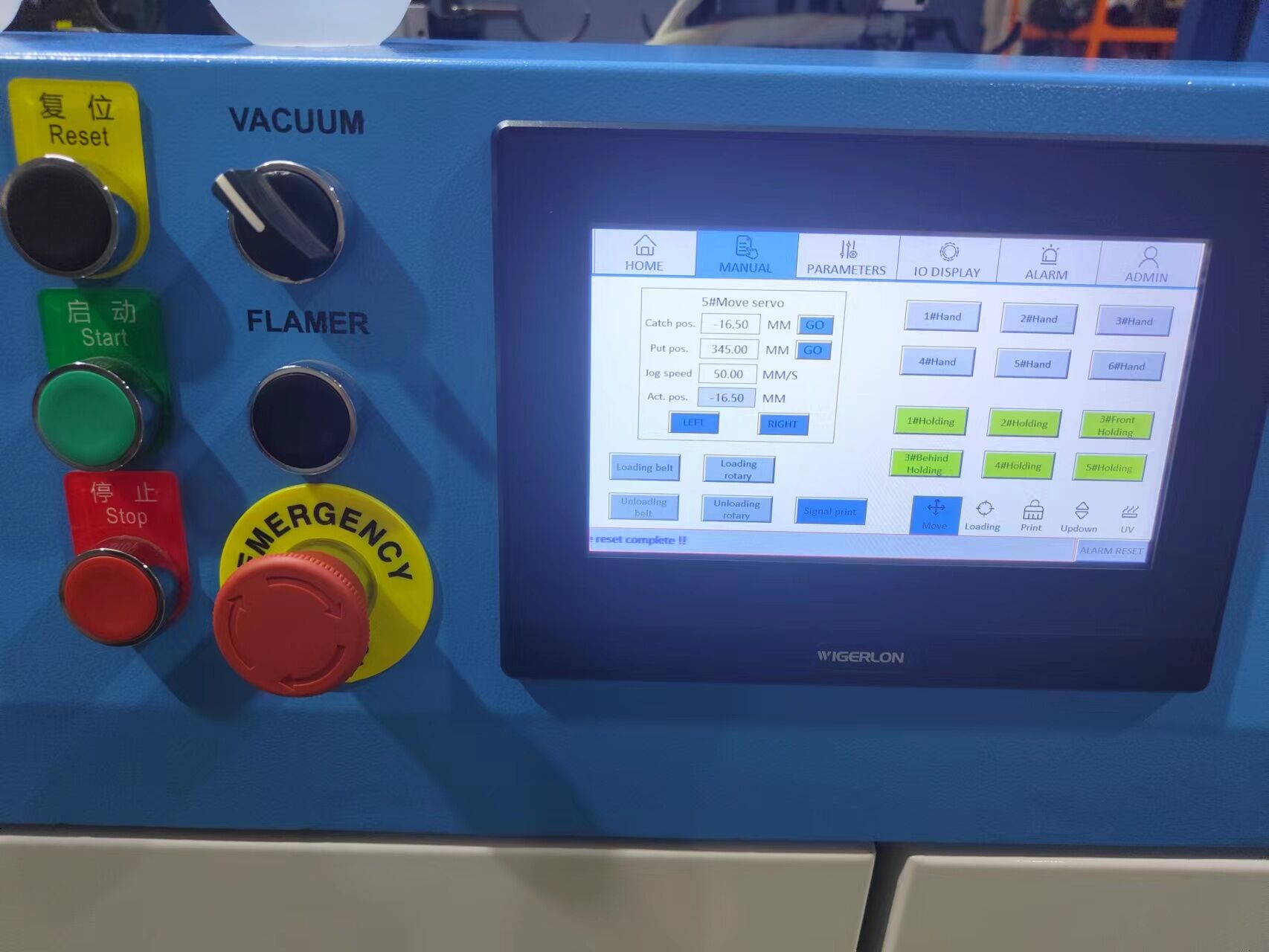

Touch control

Printing Sample

Price Terms︰ FOB Shenzhen , China

Packing︰ Wooden case

Lead Time︰ 60 Days

Standards Certificate︰ CE

Application area︰ Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, C

Main Parts︰ PLC, Pressure vessel, servo motor, CCD image positioning
