3 color tube full automatic LC-310T screen printing machine for plastic bottle
Brand Name︰LC
Country of Origin︰China
Unit Price︰-Minimum
Order︰1 unit
3 color full automatic screen printing machine for tube
Machine Specialty
-

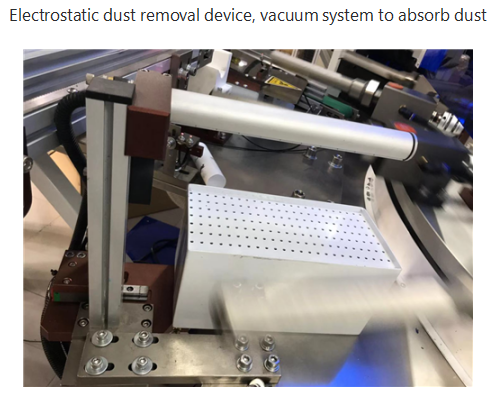

Electrostatic dust removal device, vacuum system to absorb dust
-
Flame treatment system, eliminate static electricity; Optionally add corona system
-
The glazing system is at the bottom of the hose to prevent the smooth oil from dripping onto the hose
-
The only UV station of the whole machine ensures the drying efficiency of light oil
-
One alignment system: sensing the tail sealing point, left and right alignment
-
Standardized screen printing station, easy loading and unloading
-
After screen printing, LED lights are used to dry, saving a lot of electricity, while not hurting eyes
-
Electric motion control system, servo turntable host imported from Germany high precision
Specification
| Model No.： | LC-310T |
| Air pressure requirements： | 0.5-0.7Mpa 20㎡/H |
| Speed： | ≥50 PCS/min |
| Applicable hose size： | 13-60 mm |
| Voltage： | 380VAC/50HZ |
| Applicable hose length： | 40-220 mm |
| Machine weight： | 4000 KG |
| Machine size： | 3319*3313*2030 (mm) |
| Soft pipe wall thickness： | 0.4-0.6 mm |
| Printable material： | PE extruded pipe or aluminum-plastic co-extruded hose |

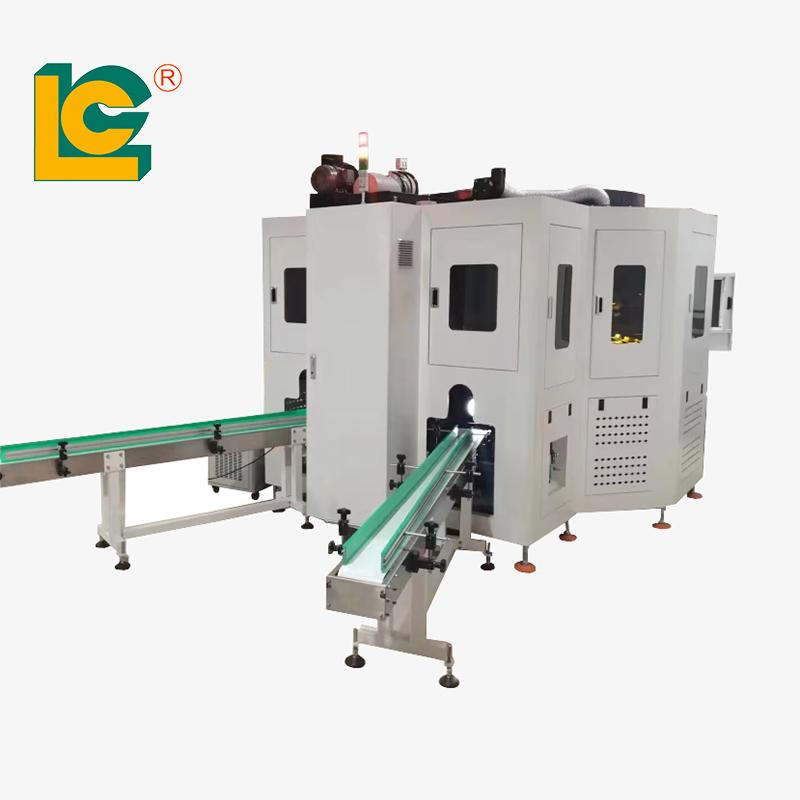

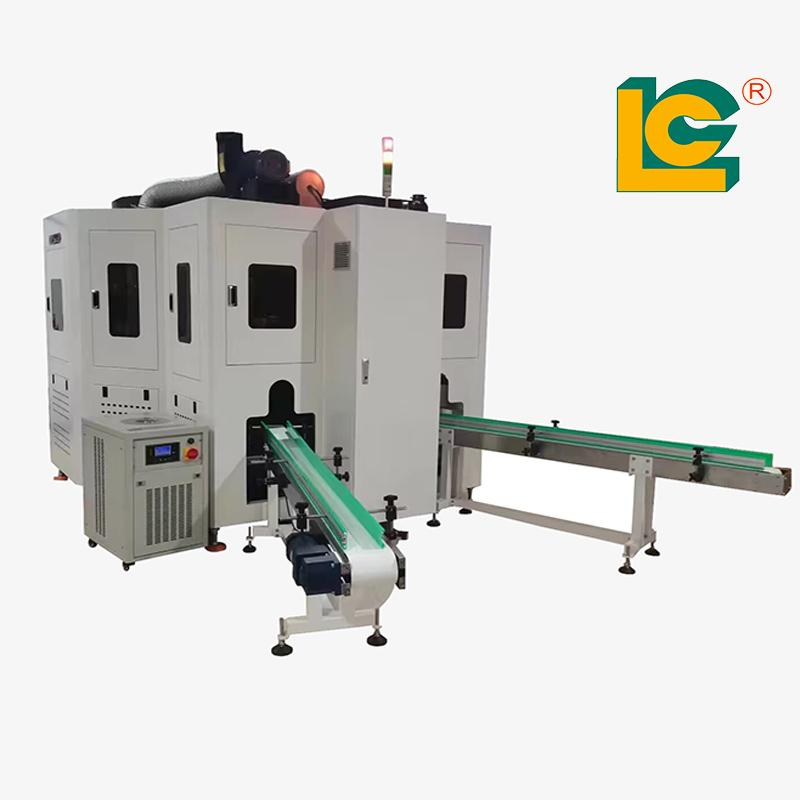

Machine Picture
Printing Sample
Price Terms︰ FOB Shenzhen , China
Packing︰ Wooden case
Lead Time︰ 50 Days
Standards Certificate︰ CE
Application area︰ Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, C
Gross Weight︰ 4700kg
-
