professional golden leather logo embossed foil hot stamping machine HS300S With Servo System For Glass Bottles

Model No.︰LC-HS300S
Brand Name︰LC
Country of Origin︰China
Unit Price︰Minimum
Order︰1 unit
Product
Contect Us

Product Details

PLC Control Servo Positioning Cosmetic Tube Hot Stamping Machine

 This hot stamping machine is designed for stamping on the surface of round objects like tube, bottles.Printing objects such as lipstick, cosmetic bottles, scour bottles, drink bottles, etc....It adds servo system for color registration to ensure the stamping position is accurate.With fast speed and low energy consumption.



Specification

Model number HS300S
Hot Stamping plane plate size 200*150mm
Cylinder size 60mm
Wattage 3500W
Max.stamping pressure 4900N
Max.stamping speed 1000 pcs/hr
warranty one year
Gross dimension 124*89*166cm
Gross weight 300KG



Function:

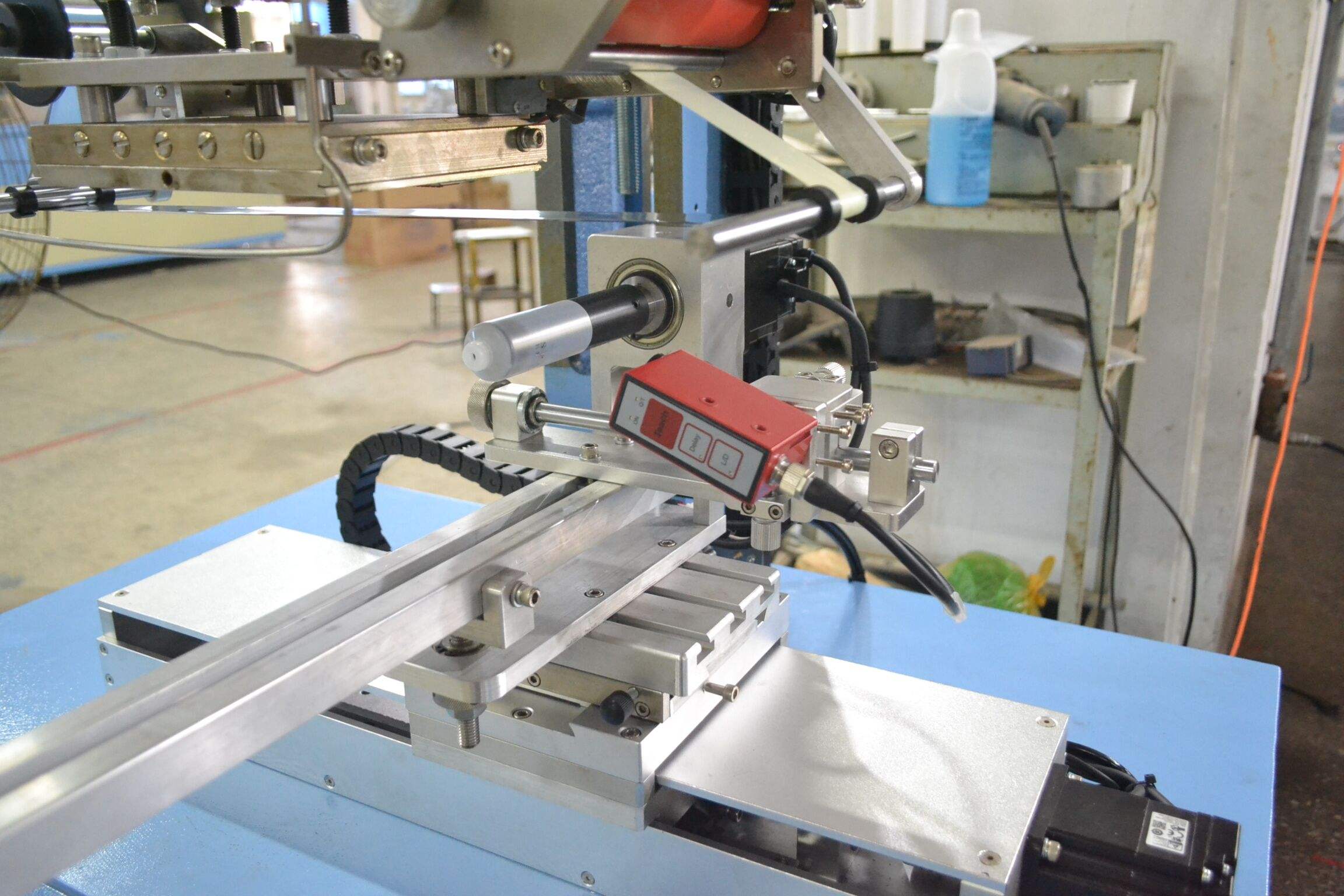

1. Add servo system for color registration. The machine should be PLC contorl, left and right by servo system, the frame move by electric, roating by servo system, do not need gear,with color sensor .

2.With the crank design,which has powerful stamping pressure and little consumption of air pressure.

3.Worktable is adjustable in front-back,left-right direction and revolvable,which ensures the quick and safe operation.

4.Stamping pressure,temperature and time are adjustable.

5.Automatic foil feeding and rolling with adjustable function.

6.Height of the stamping head is adjustable.

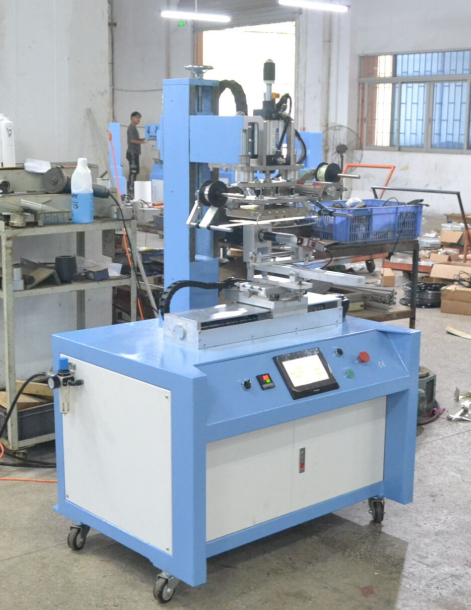

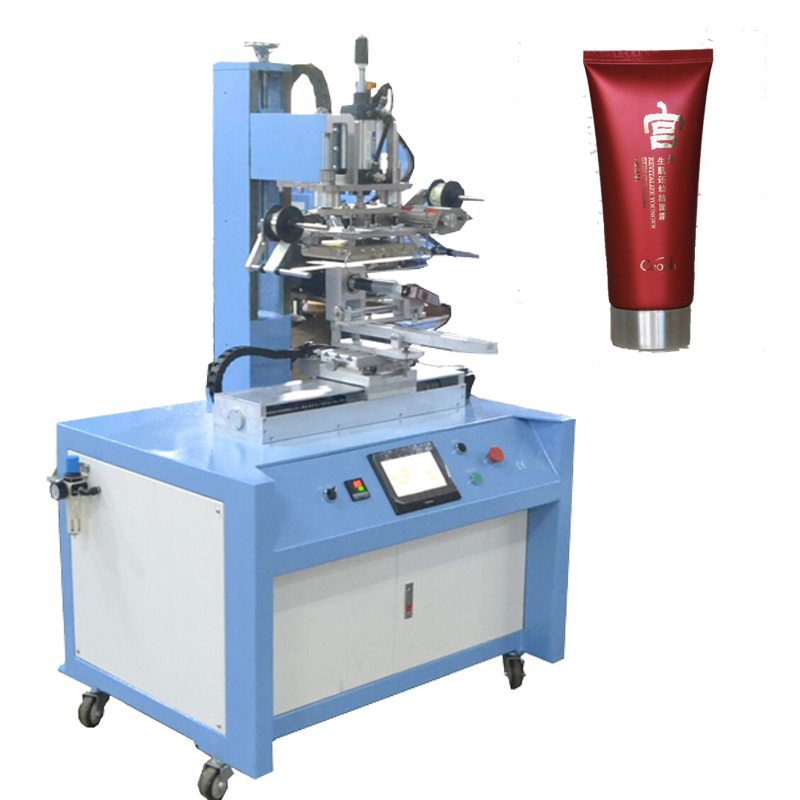

Machine Picture



Printing Sample

Price Terms︰ FOB ShenZhen, China

Packing︰ WOODEN CASE

Lead Time︰ 15 DAYS AFTER PAYMENT

Standards Certificate︰ CE

Application area︰ GIFT, TOYS, Plastic , package case , box ,craft,fabric handbag,leather,paper and plastic.

Main Parts︰ HEATING PLATE 、PLC Control Servo System
