Oil Pressure / Hydraulic Type TH-460-1 Hot Foil Stamping Machine for Notebooks、 envelopes

Model No.︰TH-460-1
Brand Name︰LC
Country of Origin︰China
Unit Price︰US $ 5390 / UNIT
Minimum Order︰1 UNIT
Product
Contect Us

Product Details

Product Description

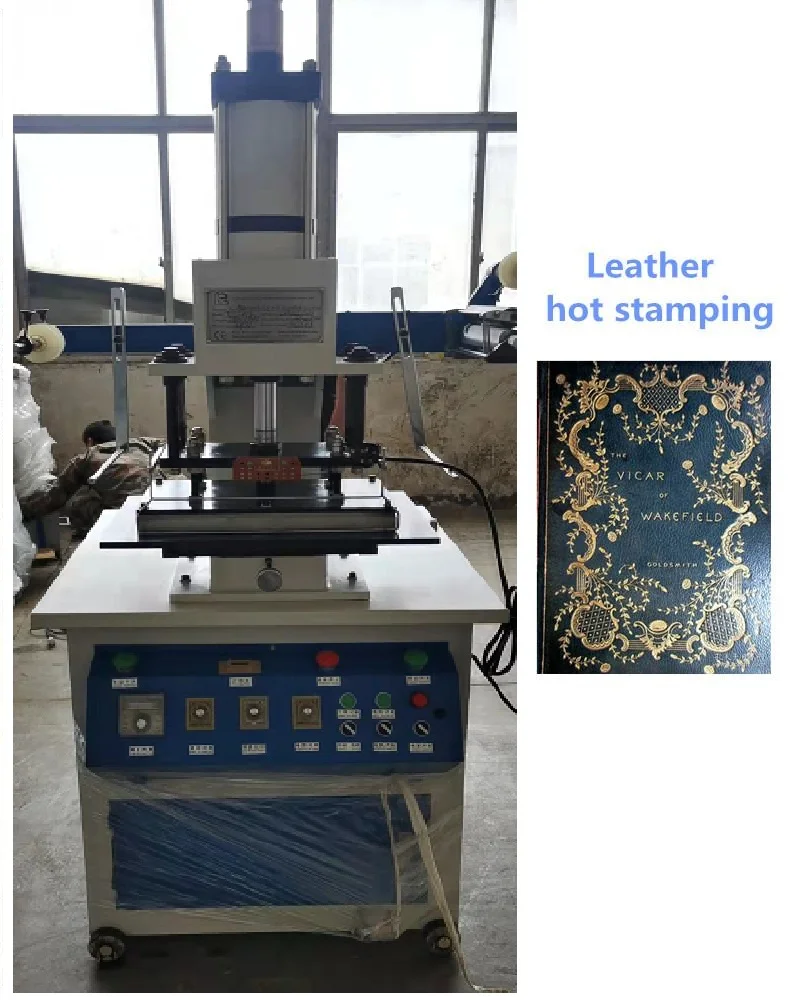

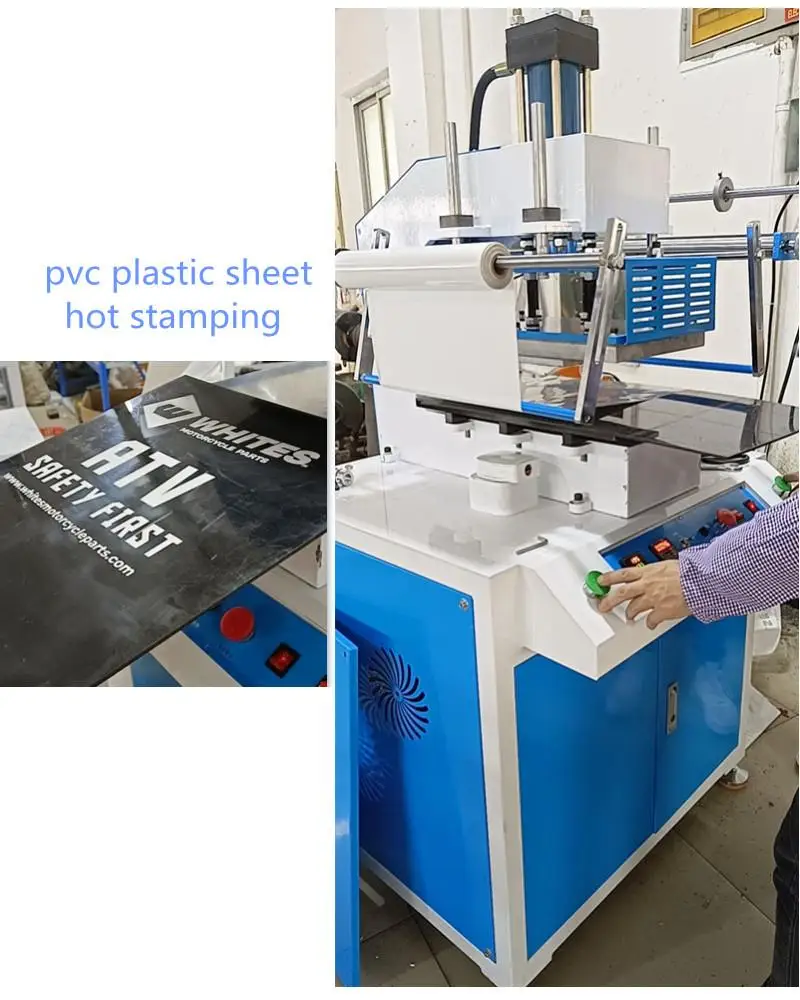

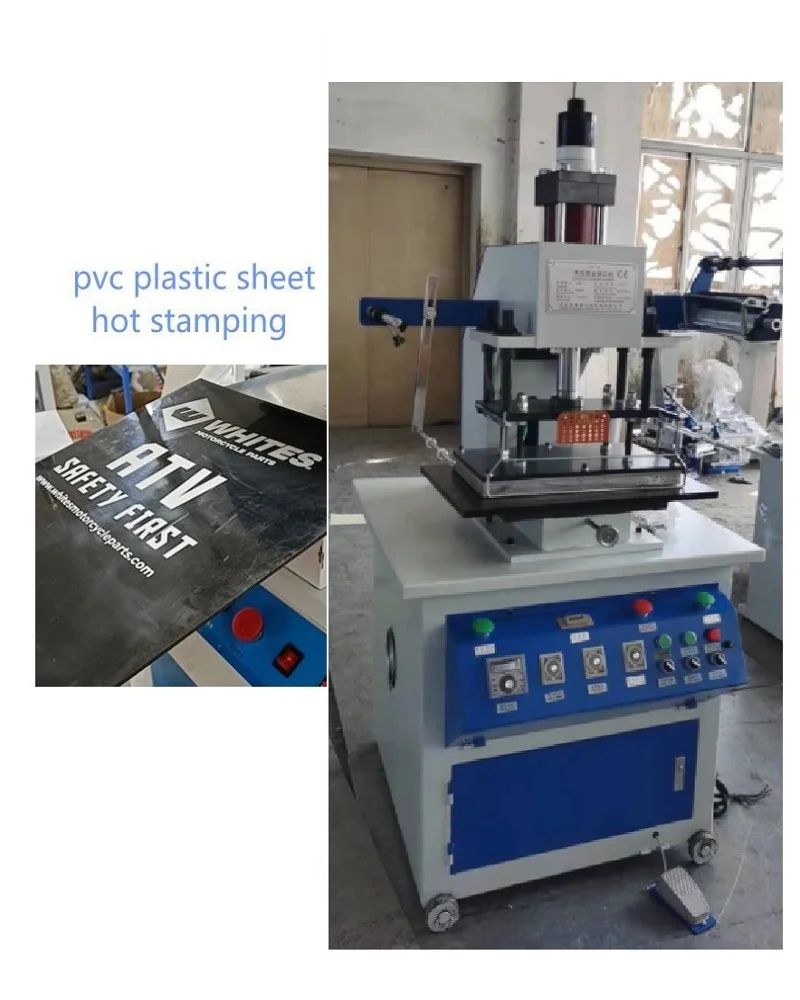

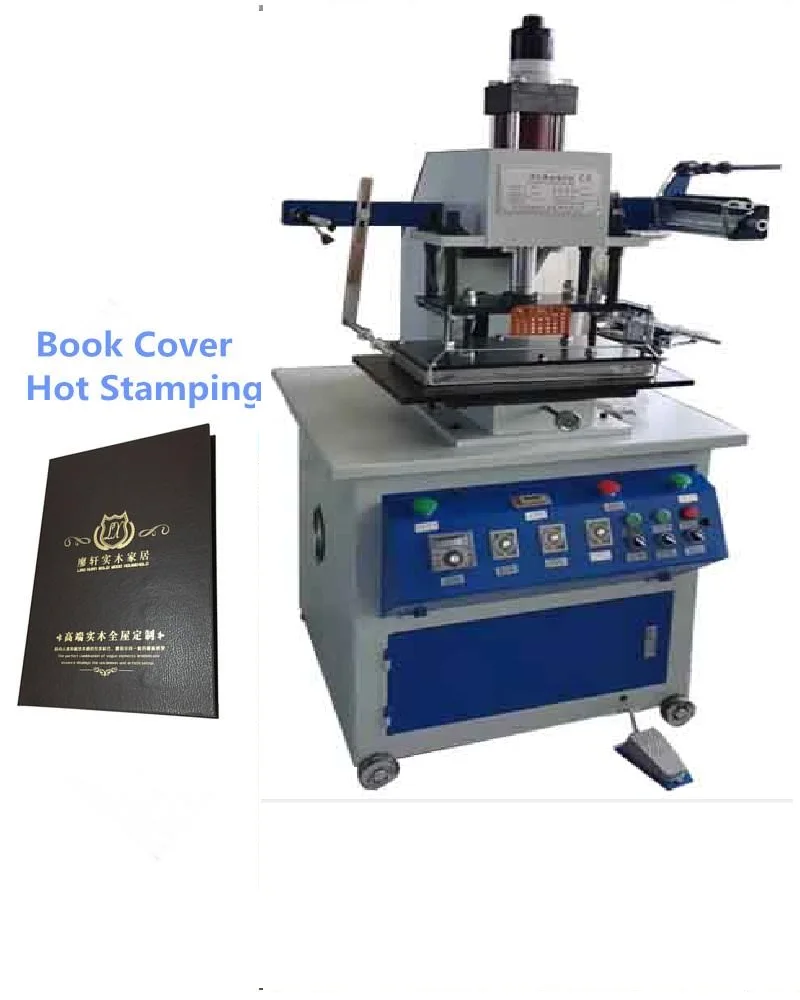

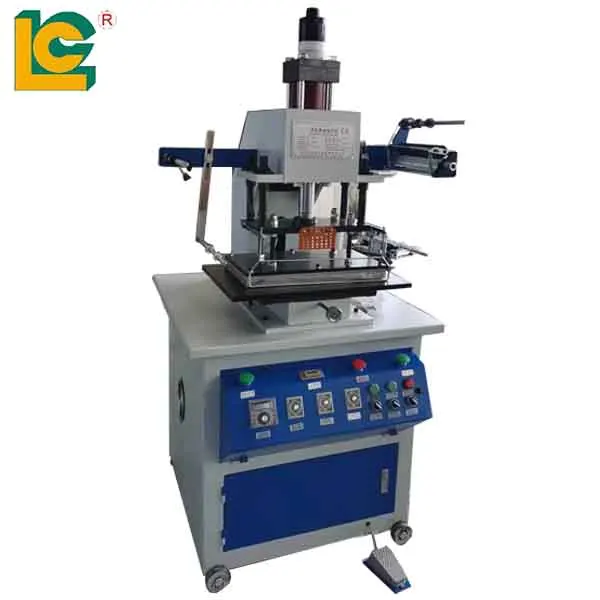

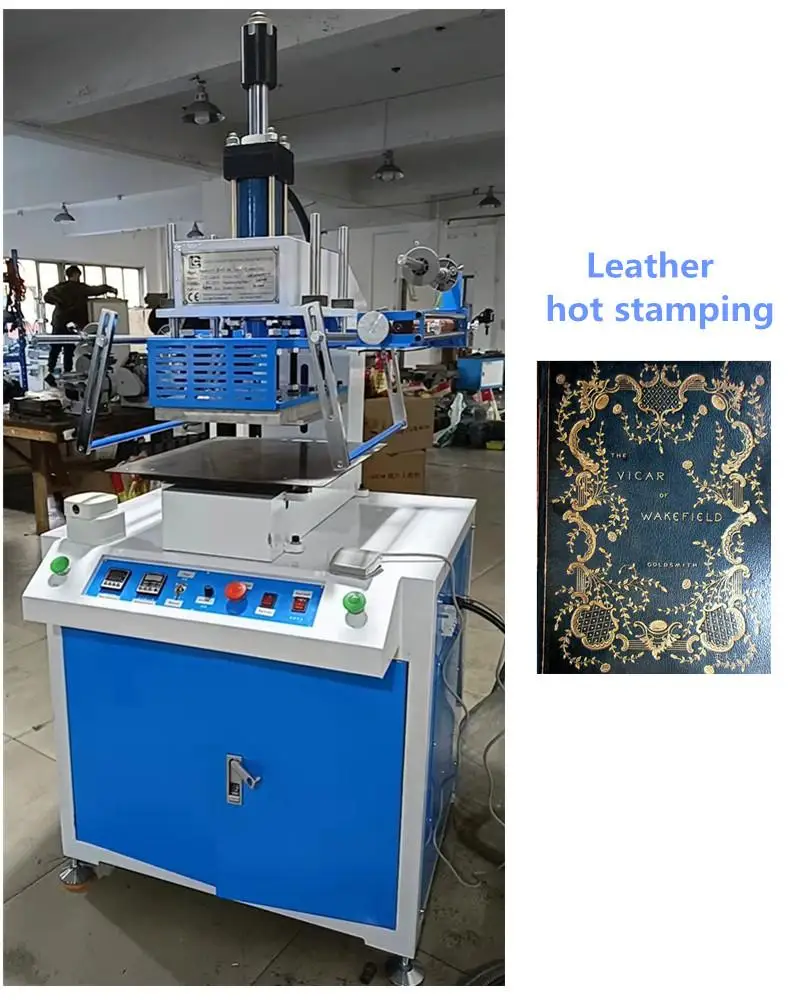

Hydraulic Pressure Oil Pressure Hot Foil Stamping Machine
The Oil PRESSURE /Hydrulic Pressure automation Hot Gilding machine TH-460-1series of machine are applied to surface stamping and branding for Paper,plastics, leather, wood, etc. products.They use pneumatic control and motor reduction gear to transmit printing ribbons with their lengths being properly controlled.Having the advantages of convenient operation, high automation,high pressing
pressure and beautiful appearance,they are ideal equipments for stamping and impressing.


Machine Advantage

This machine operates on the principle of Oil PRESSURE /Hydrulic Pressure automation, and the temperature, hot stamping time, and ribbon step amount are controlled by the instrument.Oil Cylinder Hydrclic pressure and speed can be adjusted through a pressure
regulator/throttle valve. The control panel is placed on the tripod to avoid damage to electrical components caused by the vibration of the print head. The belt feeding part of the machine can adjust the belt density evenly, and will not change the belt
density due to the larger diameter of the take-up part, saving you the cost of hot stamping paper. The operation mode of the machine is divided into foot switch control or manual push mode. The cylinder of this machine is lubricated without grease, so there is no need to add lubricating oil in the oil cup.
Specification
item
value
Type
Heat Press Machine
Applicable Industries
Manufacturing Plant, Printing Shops, Other, Advertising Company
Condition
New
Plate Type
Flatbed Printer
Place of Origin
Guangdong
Brand Name
LC
Model Number
TH-460-1
Usage
Other
Automatic Grade
Semi-automatic
Color & Page
single color
Voltage
220v
Weight
450KG
Warranty
1 Year
Key Selling Points
Easy to Operate
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Pump, Other
Driven Type
Hydraulic
Power input
220V/60Hz
Power
2800W
Speed
10-60time/min
Max Pressure
2T
Temperature
MAX300℃
Printable area
460*260
Apply range
100mm
Gross weight
470kg
Package size
920*900*1850MM




Price Terms︰ FOB Shenzhen , China

Packing︰ Wooden case

Lead Time︰ 60 Days

Standards Certificate︰ CE

Application area︰ Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, C

Main Parts︰ PLC, Pressure vessel, servo motor, CCD image positioning
