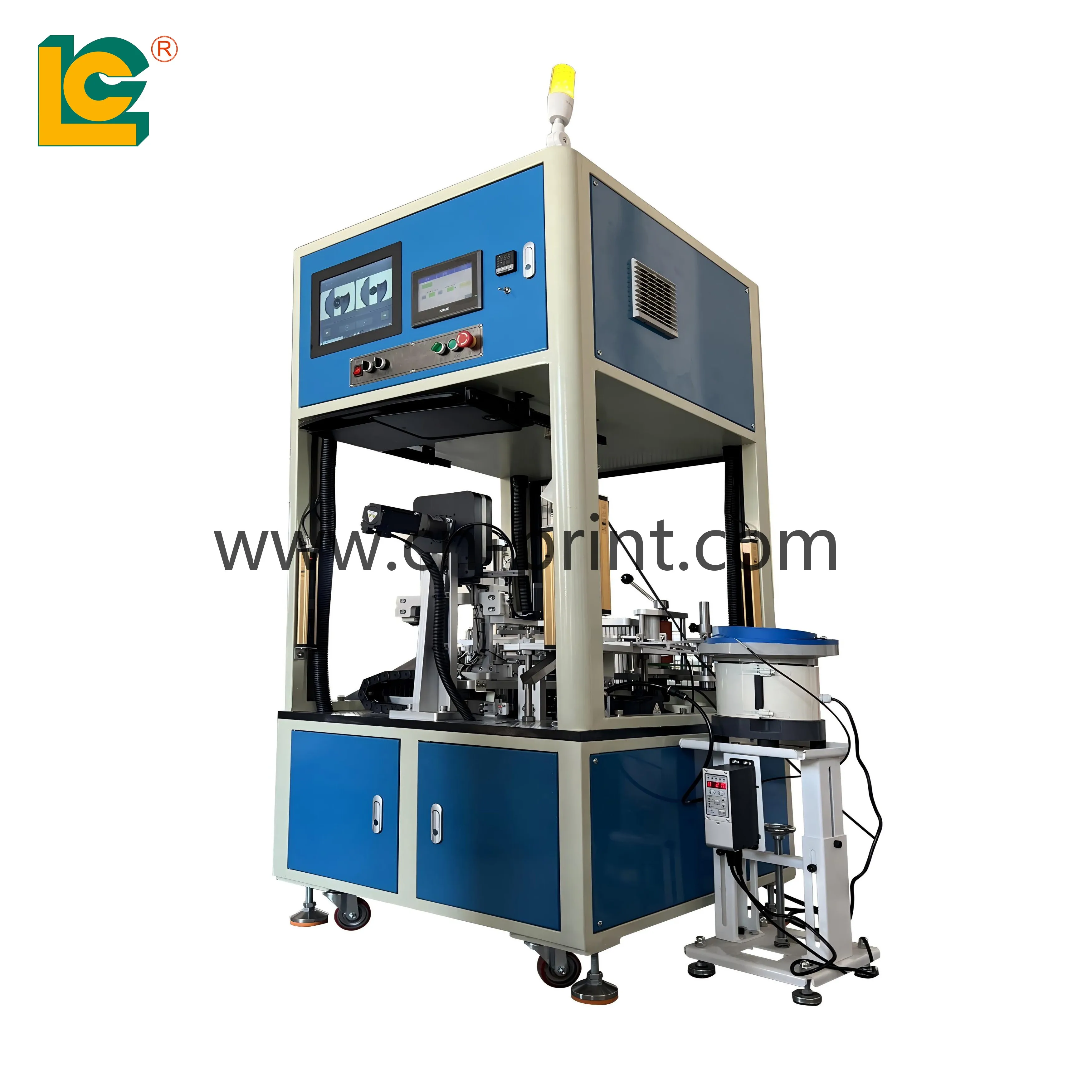

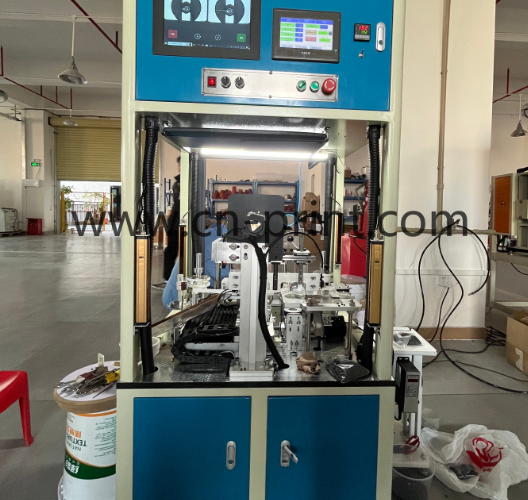

CCD positioning Number Wheel Gilding Press Machine for Combination Lock hot foil stamping machine

Model No.︰LC- TC-RD3
DBrand Name︰LC
Country of Origin︰China
Minimum Order︰1 pc
Product
Contect Us

Product Details

Product Description



Advantage:

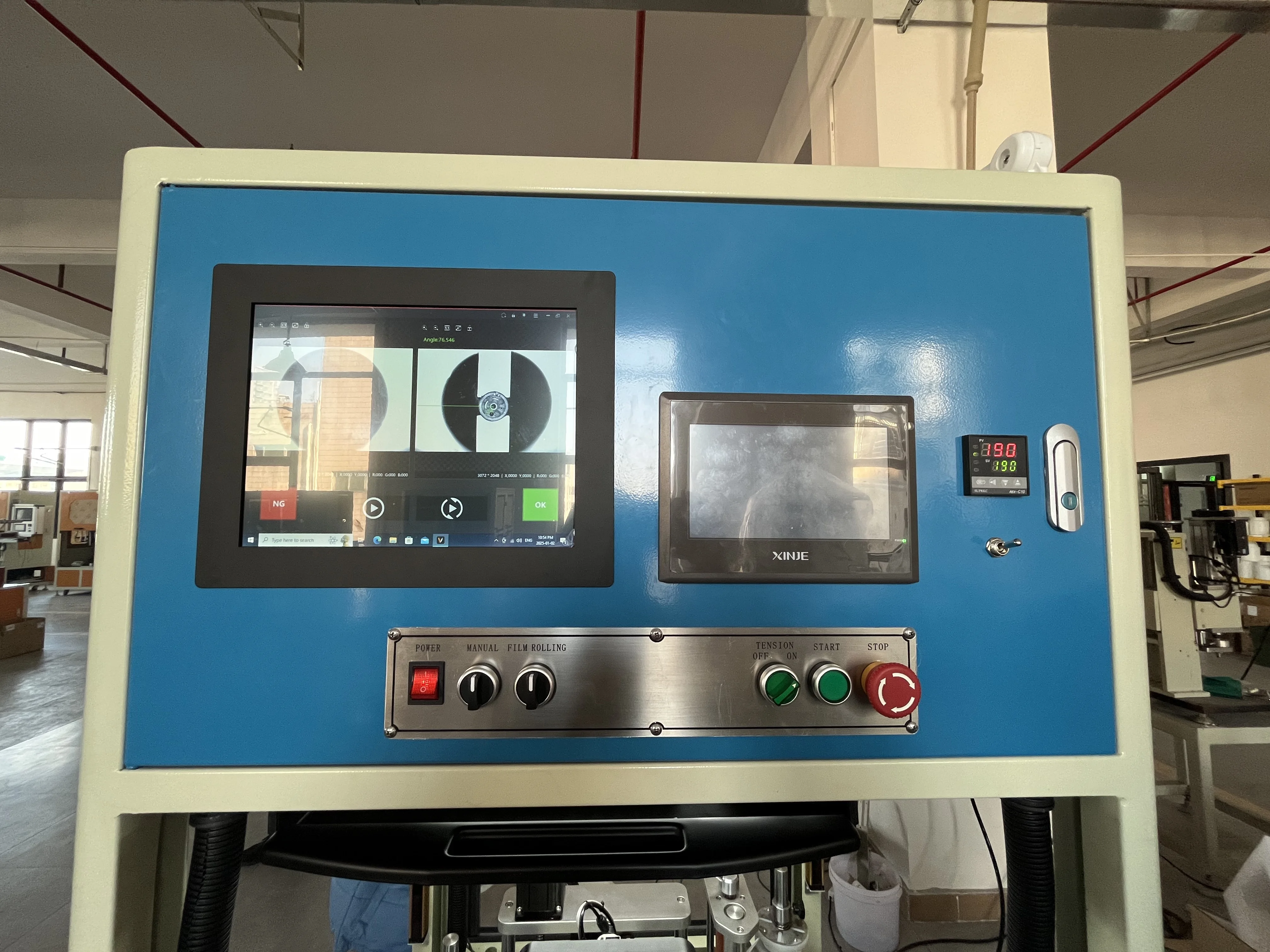

1.The machine with CCD system, PLC control, touch screen display, easy to understand operation, multiple sets of data
stored in memory, easy to replace and use different products

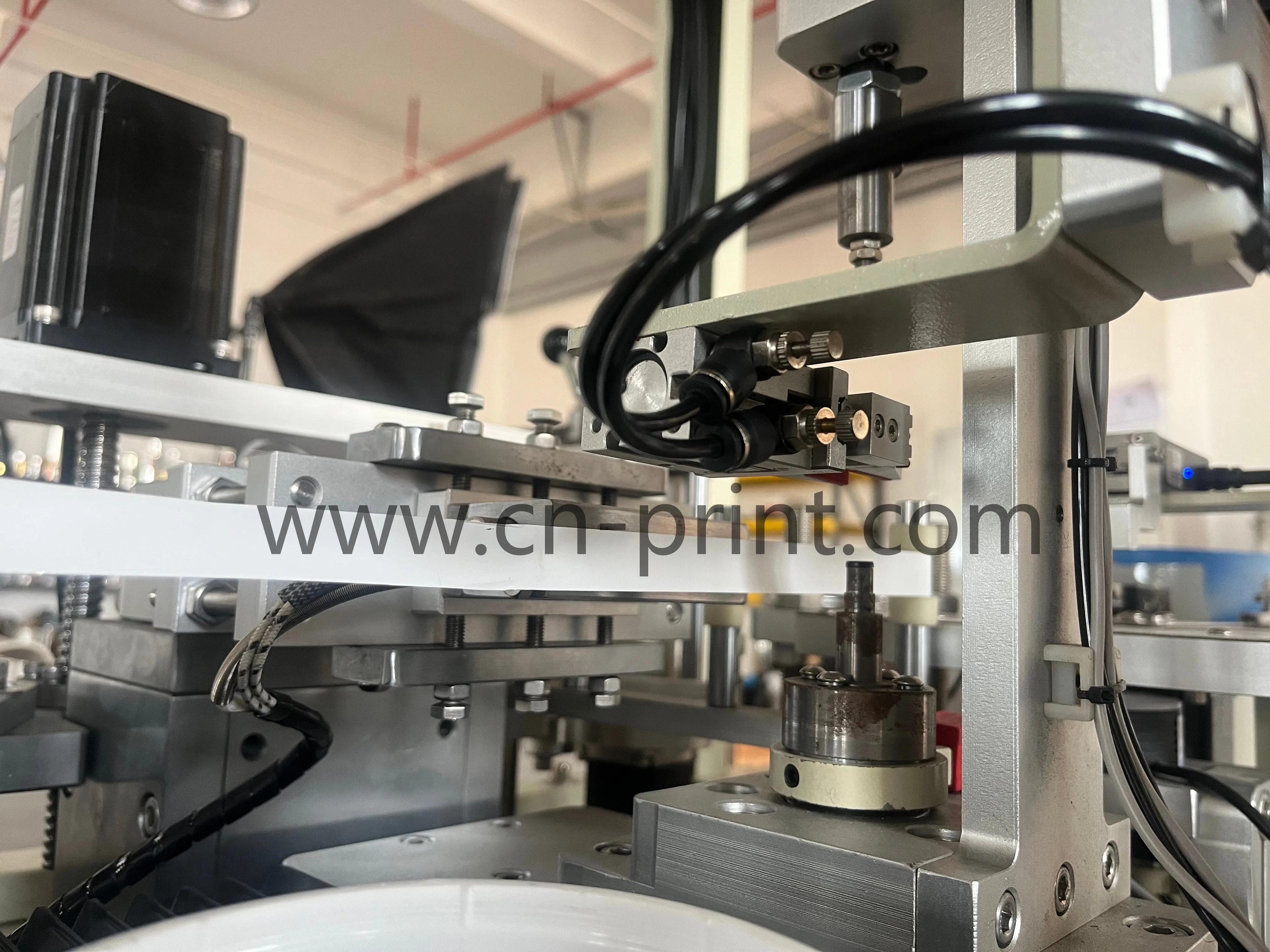

2.The fixture ejection uses a high-precision servo motor to control the movement of the upper silver guide rail with high precision

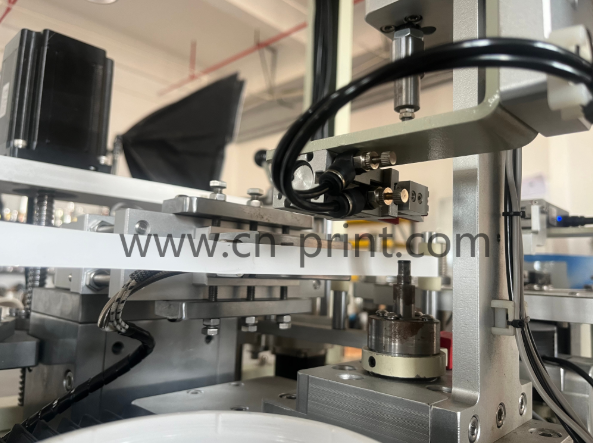

3.The up and down movement of the iron is controlled by high-precision cylinders.

(1) Computer control, man-machine interface is easy to operate
(2) Hot stamping pressure, temperature and speed can be adjusted
(3) Built-in self-counting, automatic positioning

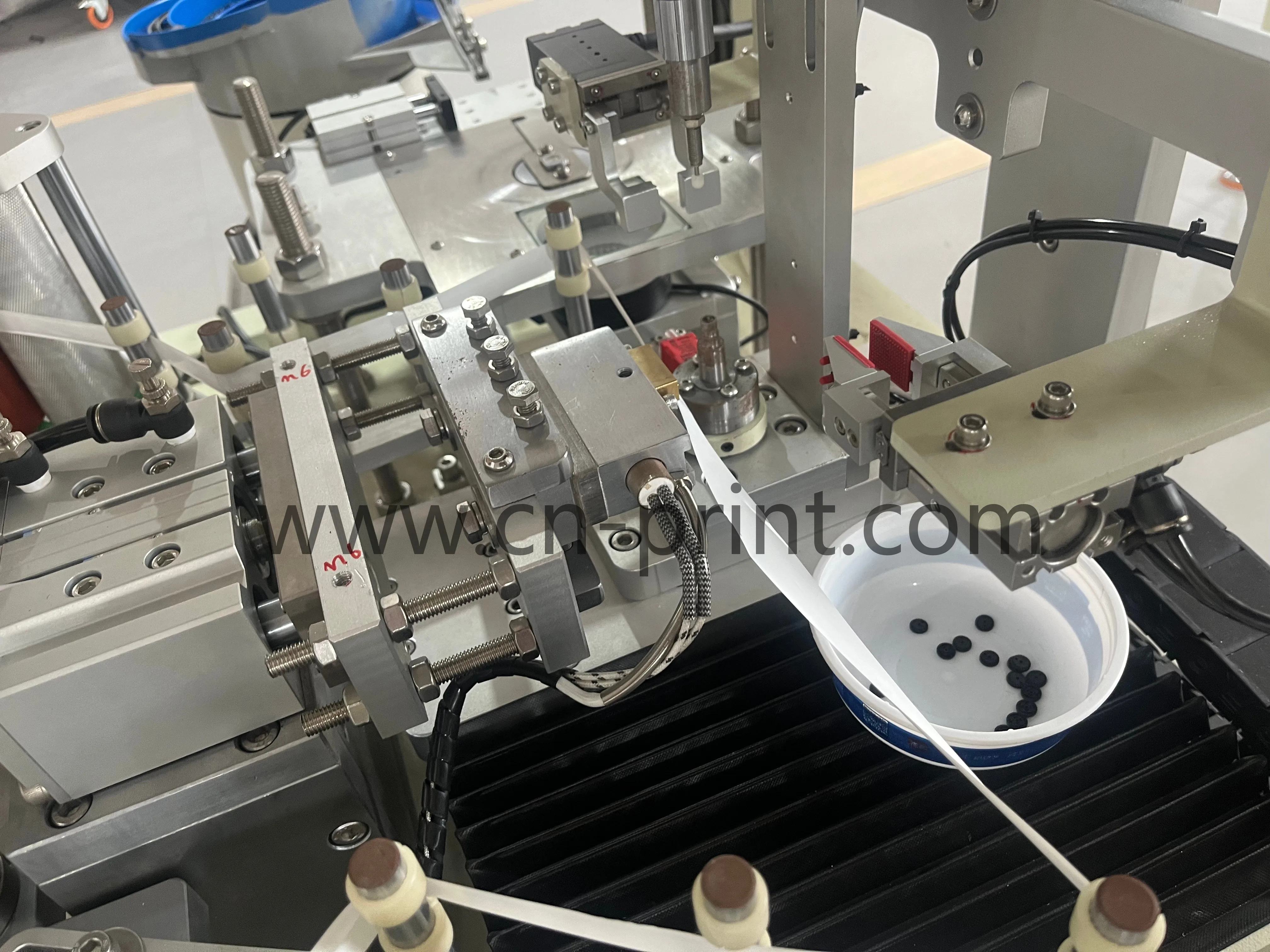

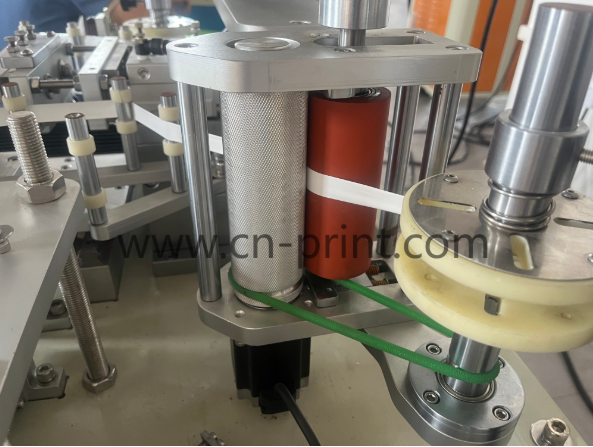

(4) Automatic foil feeding, foil retracting and adjustable, no foil every time the machine stops
(5) The height of the hot stamping head is adjustable and the range is large

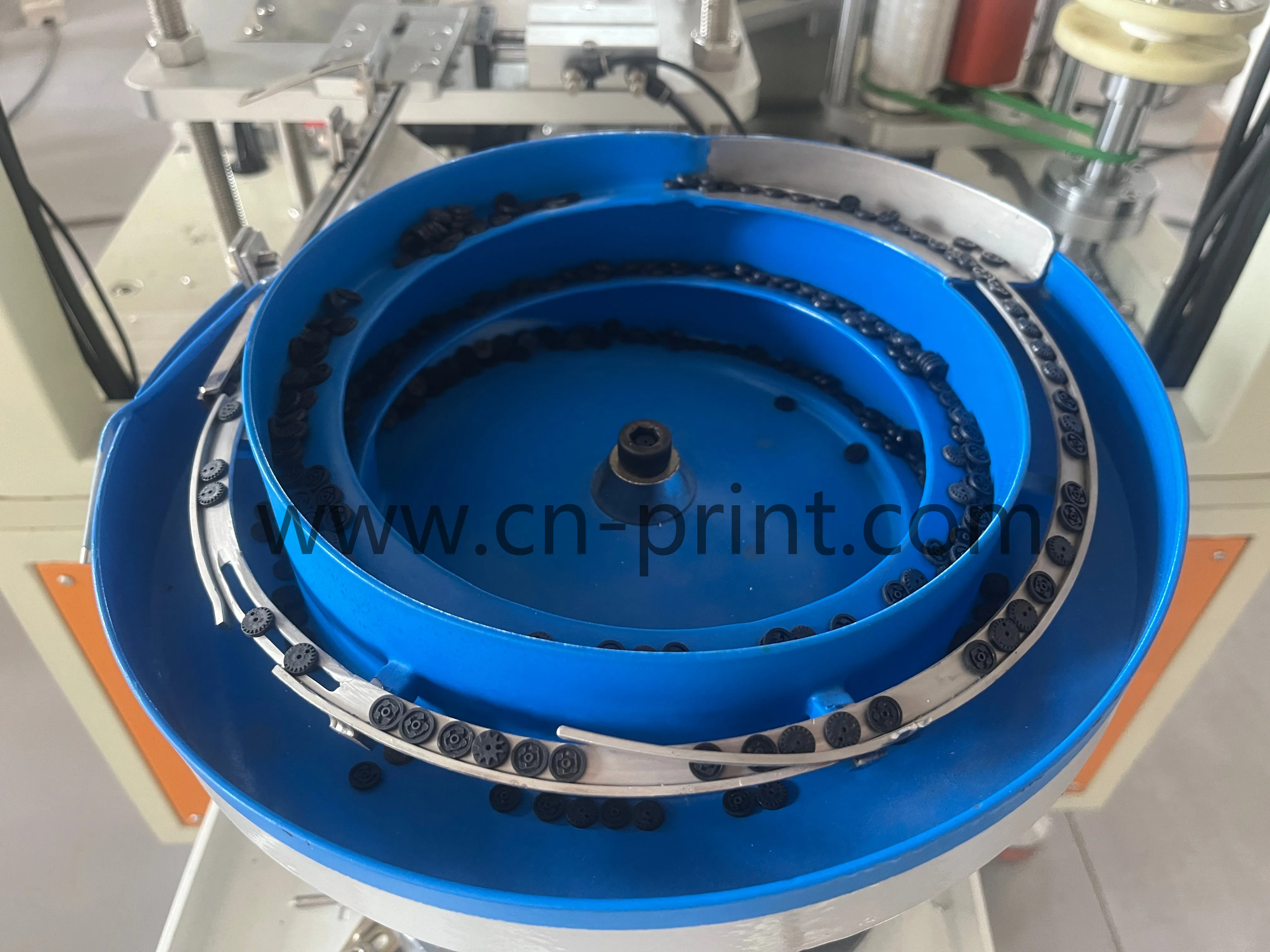

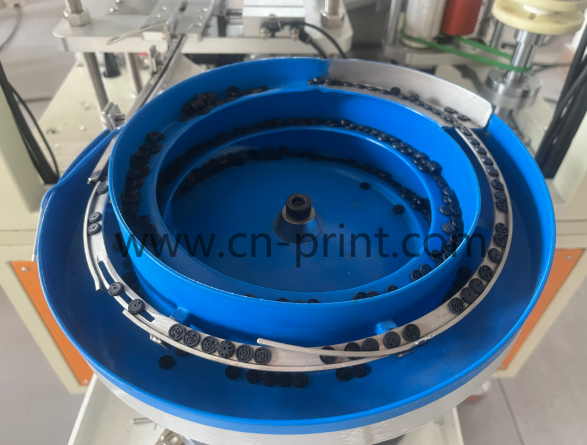

(6) The conveyor belt is used for feeding, and the product is automatically output.

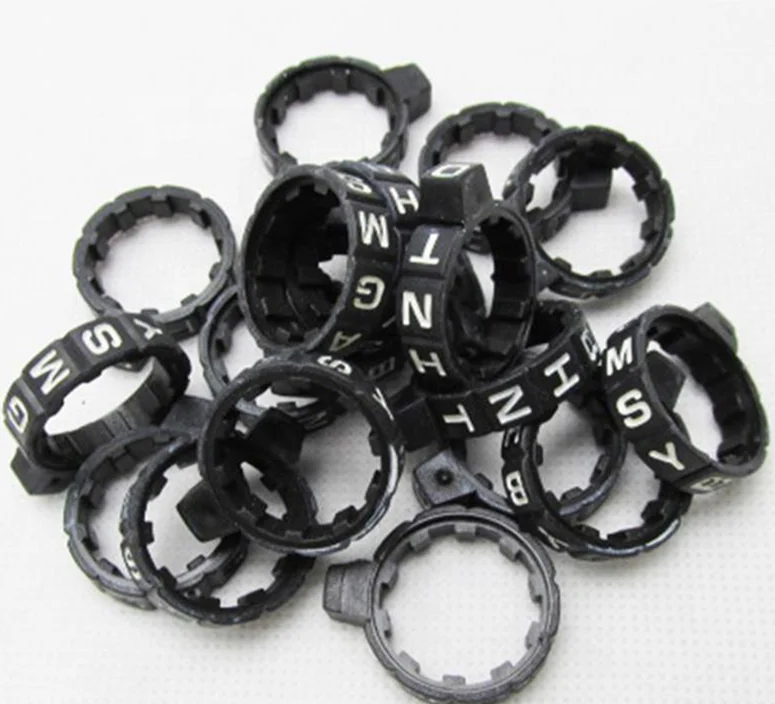

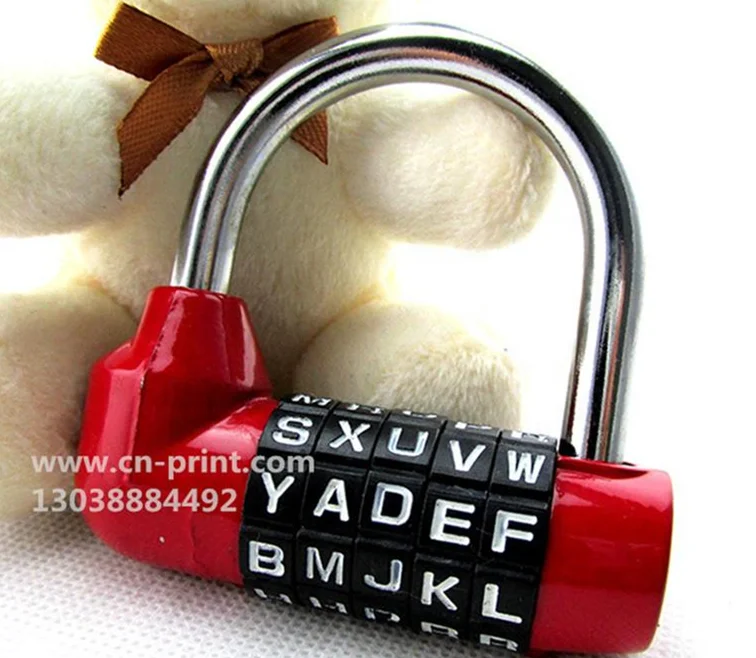

Printing Samples
For more information,Pleaes contact me
Specification
item
value
Type
Heat Press Machine
Applicable Industries
Manufacturing Plant, Printing Shops, Other, Advertising Company
Condition
New
Plate Type
Hot stamping machine
Place of Origin
GUA
Brand Name
LC
Model Number
LC-PT-ZD
Usage
Number wheel,plastic, cap,small round item, other
Automatic Grade
Automatic
Color & Page
single color
Voltage
220V 50/60HZ
Dimensions(L*W*H)
1250*800*1850mm
Weight
500KG
Warranty
1 Year
Key Selling Points
High Productivity
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Other, PLC, Engine
Driven Type
Pneumatic
Product name
Hot Stamping Machine
Printing Item
Number wheel
Max hot stamping size
35*80mm
Hot stamping temperature selection range
0℃~300℃
Hot stamping pressure range
250kg
Maximum hot stamping speed
15pcs/min
Heating power
2000W
Air pressure
5-7bar
Machine size
1250*800*1850mm
Machine weight
500kg
