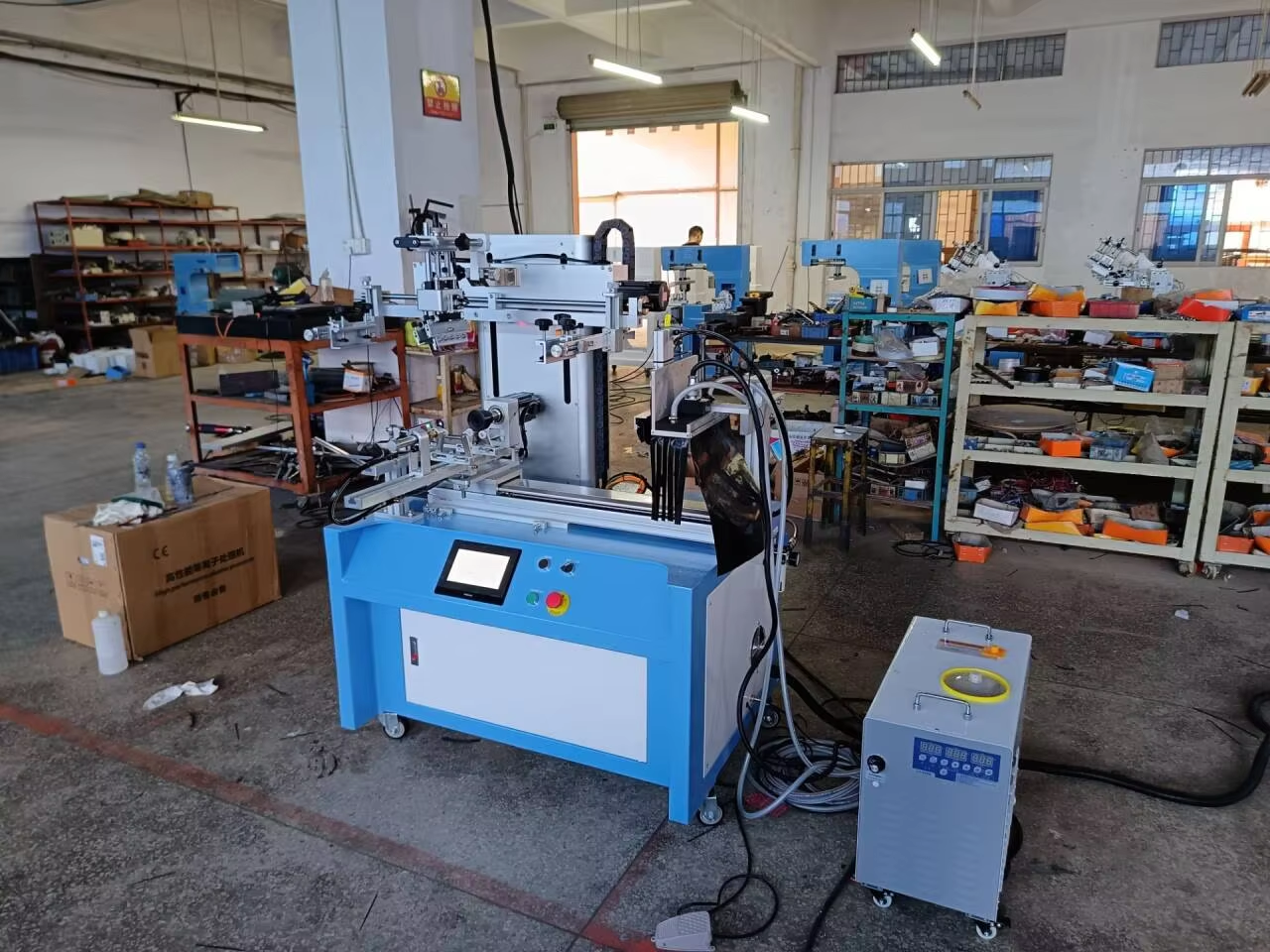

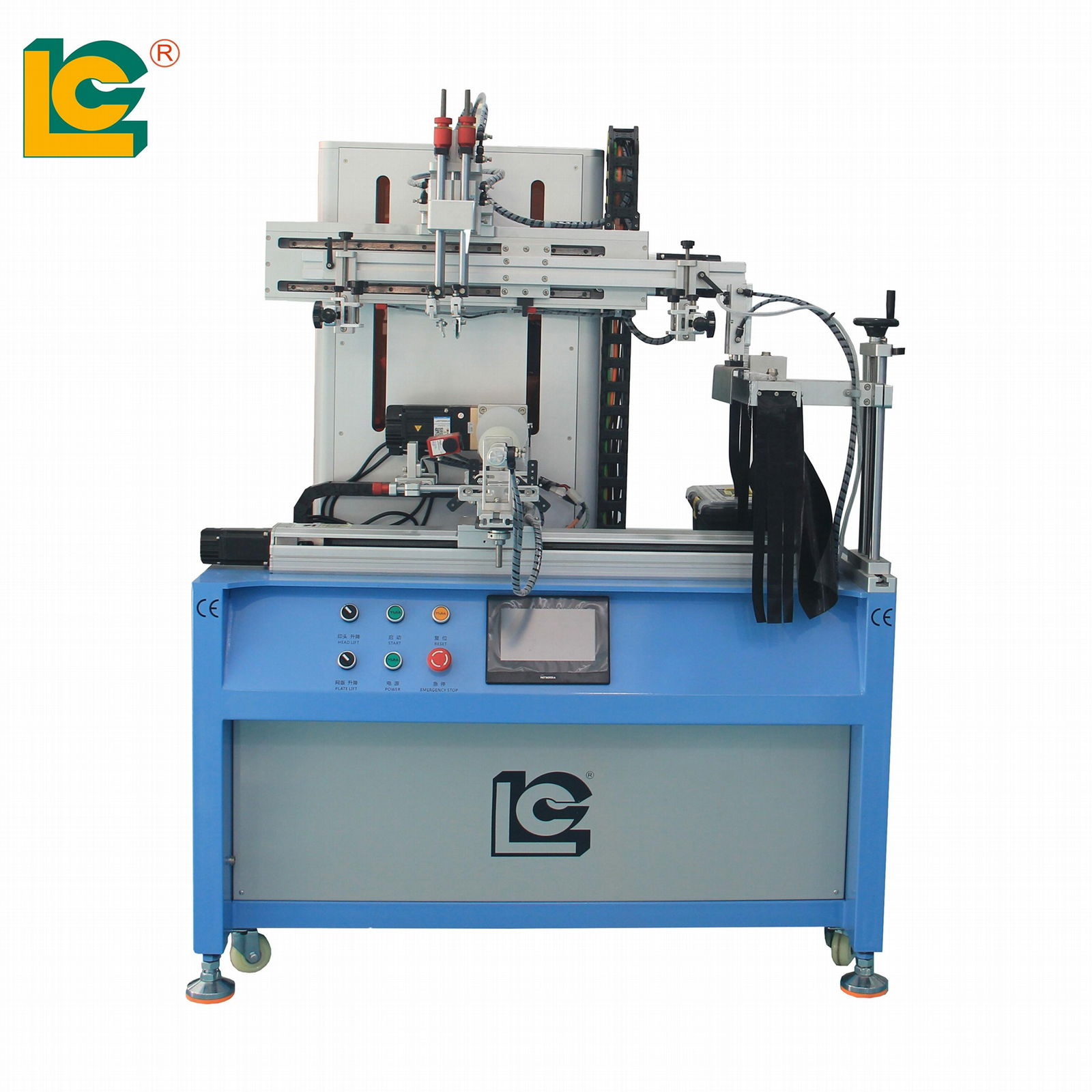

Semi-Automatic Multicolor Screen Printing Machine

Products Description

Model number	LC-400ES+UV	Product appearance	Round
Max Printing diameter	Φ120mm	Max printing arc length	370mm
Printing Speed	800 PC/H	Machine Weight	420kg
Machine gross weight	330kg	Air pressure	0.5Mpa
Voltage power	220V/50HZ	Application area	bottles

Specifications

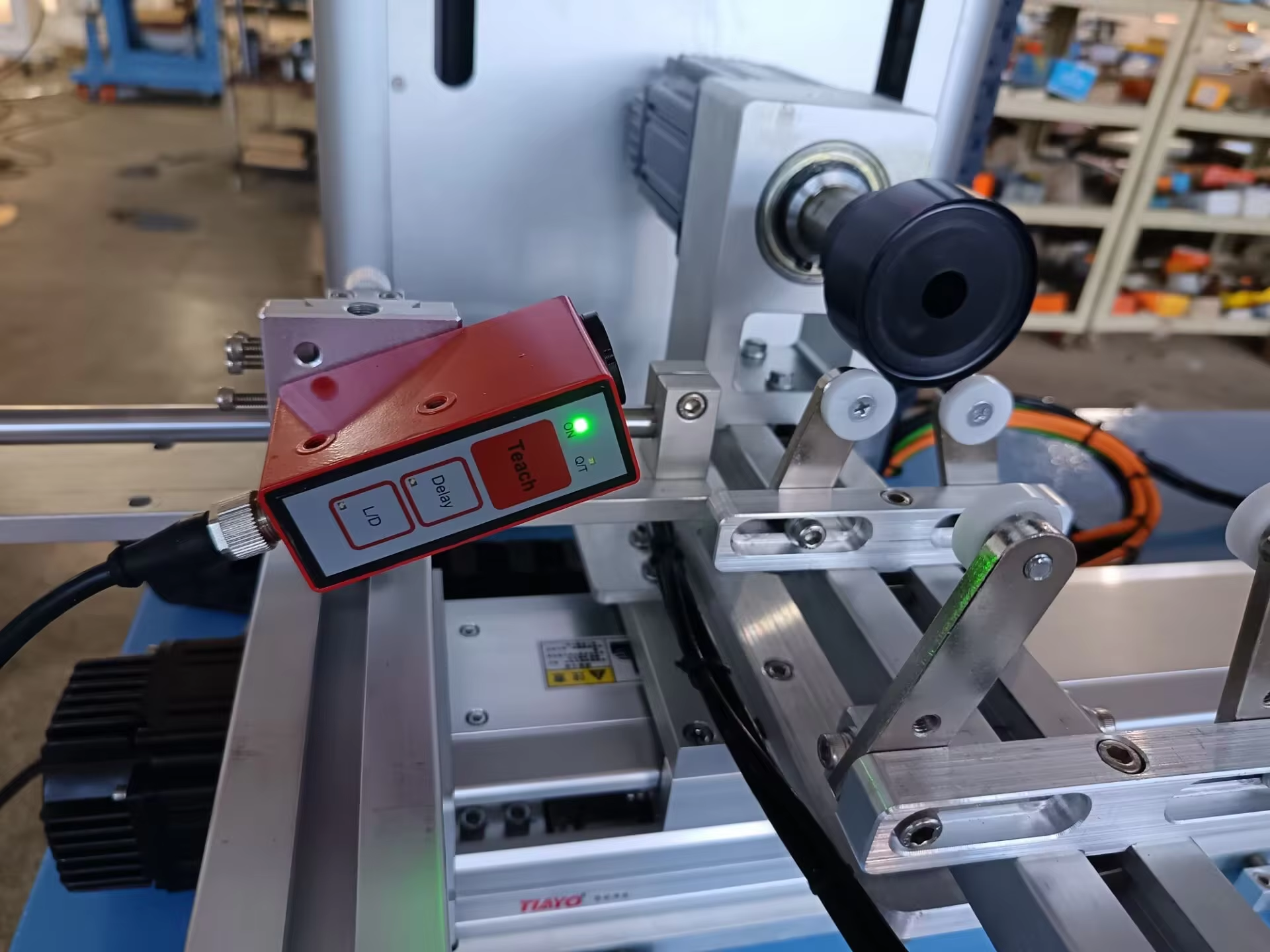

LC-400ES+UV adopted 2sets Japan Fuji servo, German Leuze color sensor and Japan Hitachi PLC system. One servo is for Screen movement, another servo is for Fixture rotation. And the German Leuze color sensor is used to recognized the print position. It make sure to accurate position of products and no need to adjustment .

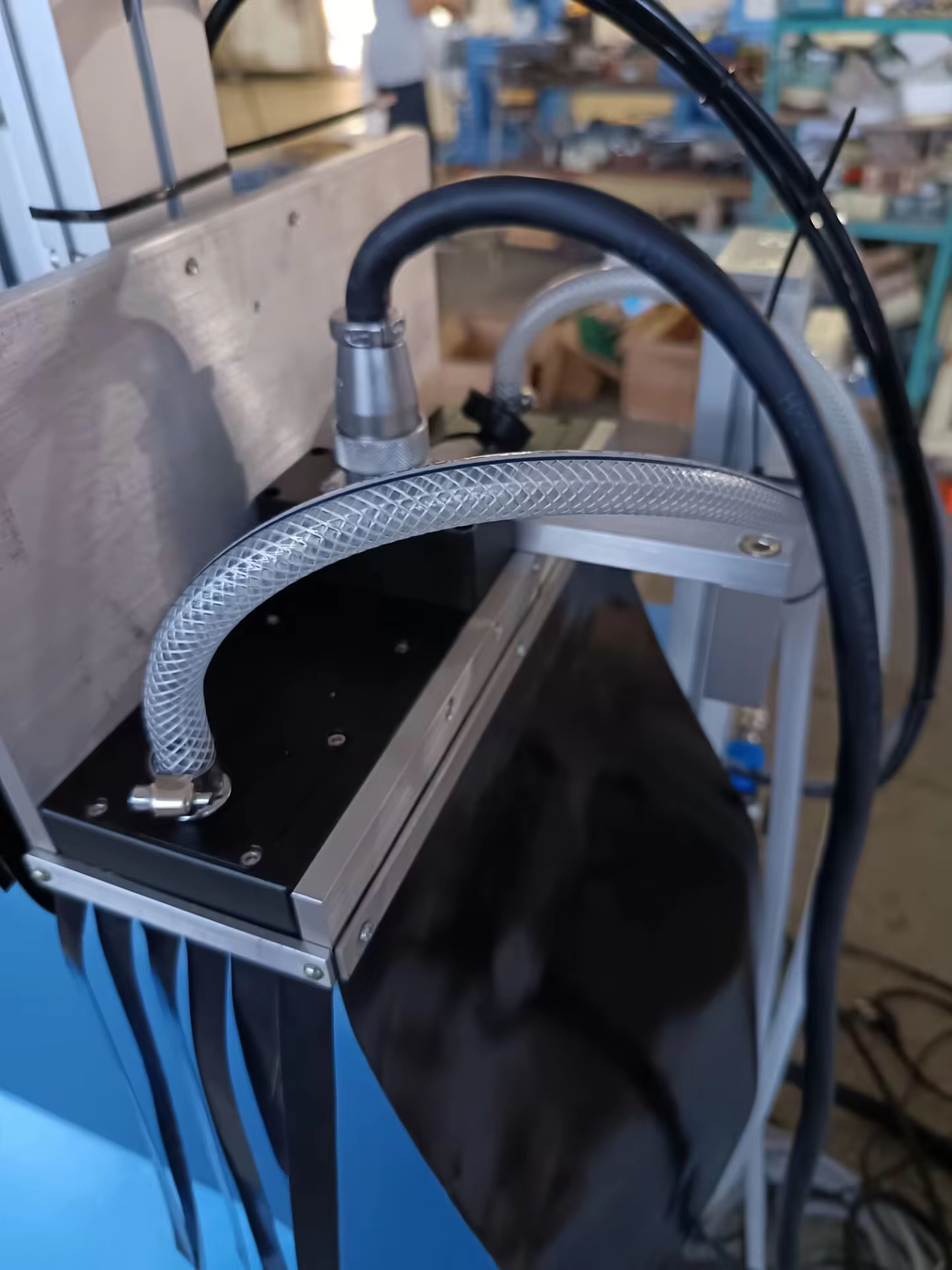

1、When the product is printed, it is moved to the LED lamp for drying and curing, which greatly reduces the damage to the screen frame
2、Full touch screen man-machine dialogue control mode, simple operation and safe for workers
3、It is suitable for multi-color overprinting of bottles without registration points for round shaped products
4、This is a high precision and high efficiency surface screen printing machine, left and right, rotation, shuttle full servo control, up and down using three-phase frequency conversion motor control, printing balance vibration is small, high precision, stable operation, multi- color overprinting accurate; Adopting double column structure, sanling 5UPLC system, running smoothly at high speed.
5、The left and right movements of the printing head are driven by linear guide rails. Double guide column left and right mesh clamping arm, at the same time install plate distance adjustment device, printing accuracy: ± 0.03mm, running speed can reach 1800 times per hour.
6、Emergency stop automatic rise alarm shutdown device, more humanized, higher safety factor.

Details Images

Main Features For Semi-automatic Multicolor Screen Printing Machine

1. Round printing function (taper section)
2. Automaticoil scrabbing, oil return and lifting table
3. Adujustability of routs and speeds
4. Self-poise scraper to balance printing pressure
5. Adjustable table (fluctuation & round) and netting easel (fluctuation & both sides)
6. High precision and easy & quick adjustability

Our printing samples

Plastic Bottle

Ceramic Cup

Paper Cup				Glass Bottle
Suitable for precise printing substrates in Cylindrical, forms whic h with smooth curve surface and made of various materials such as metal, plastic, ceramic, glass, wood etc...Printing objects such as lipstick, cosmetic bottles, scour bottles, drink bottles,pots, oil-filter shell etc...

Printing process of multicolor paper cup

Printing process of 2 color wine bottle

Printing process of Thermos

More pictures and video of the machine , please contant with us.It can print various materials bottles, cups, tubes, etc.

Price Terms︰ FOB Shenzhen , China

Packing︰ Wooden case

Lead Time︰ 60 Days

Standards Certificate︰ CE

Application area︰ Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, C

Main Parts︰ PLC, Pressure vessel, servo motor, CCD image positioning
