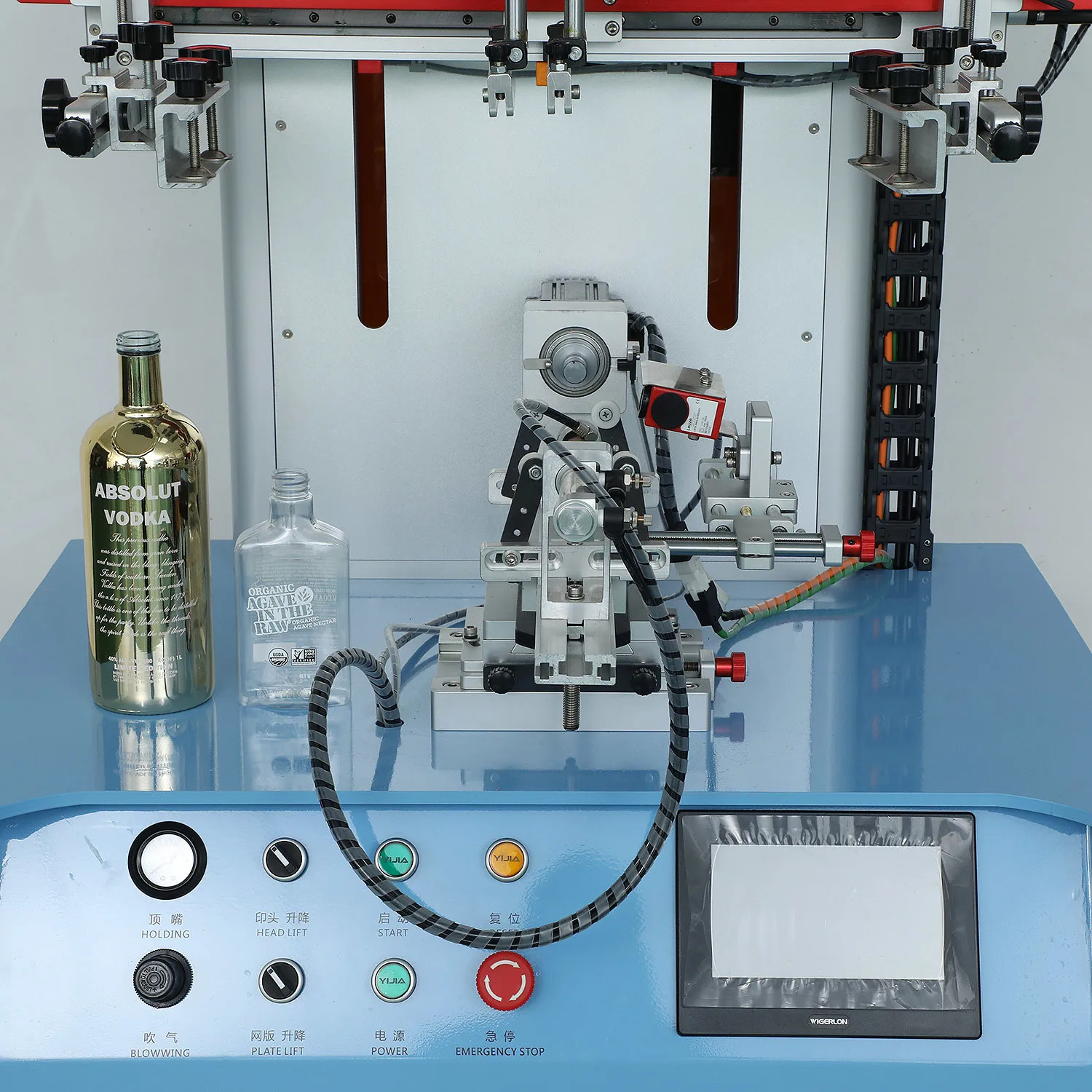

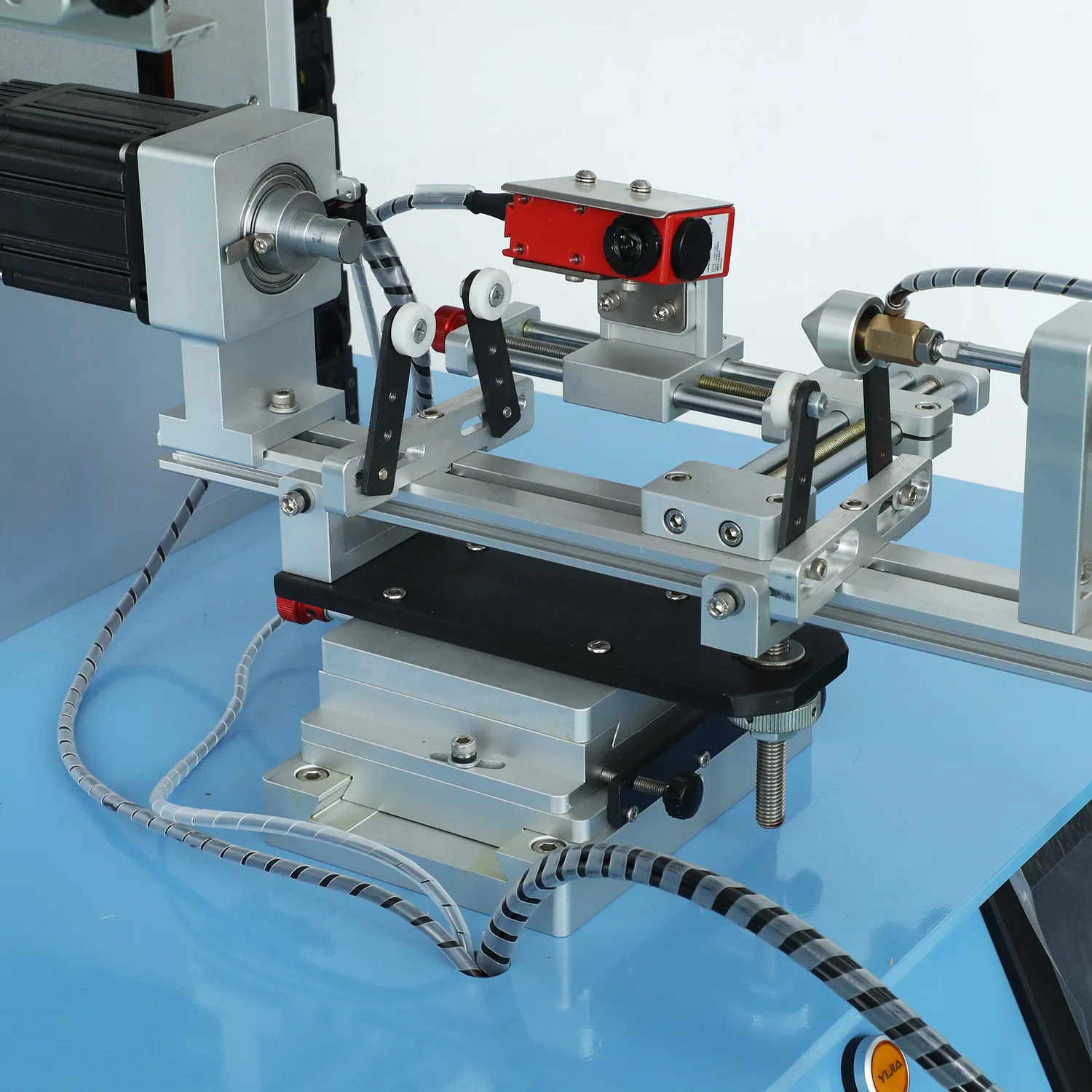

Bottle semi-automatic PA-600ES Tube screen printing machine with color sensor for wine cosmetic Coffee cup

Model No.︰LC-PA-600ES
Brand Name︰LC
Country of Origin︰China
Minimum Order︰1 SET

Product

Contect Us

Product Details

Products Description

Model	LC-PA-600ES
Max printing speed	2000 PC/H
(Round)Max. Printing diameter	Φ180mm
(Round)Max printing arc length	570mm
Maximum product tilt	14°
Air pressure	6 bar
Air consumption	80 Liter / Min
Power consumption	50W
Power voltage	220V 50HZ /110V 60 HZ
Voltage power	220V/ 50HZ
Machine weigh	320kg
Machine gross weight	360kg
Warranty	1 year

Product
Our new cylinder silk screen printing machine is multifunctional screen printing machine, it suitable to print on round, oval shaped products.such as plastic,metal, ceramic, glass, wood etc... This new cylinder silk screen printing machine is easy to operate,microcomputer fully automatic control, starting printing immediately after putting the product.Printing left and right sliding seat is equipped withn the new technology, printing accuracy can reach 0.1mm.Pneumatic printing, it only need 50W power, support 220V / 110V power supply.

Application：Packaging/commercial/label printing on bottles, cups, cans, wristband, toiletries, nail polish bottles, lipstick bottles etc.

Feature1.Four-digit automatic counter, easy to record the number of prints

2.Microcomputer automatic control, print immediately after placing the product, easy to operate

3.The drive system is upgraded, the knife holder moves at a constant speed, and the scraper is self-balanced to balance the printing pressure.

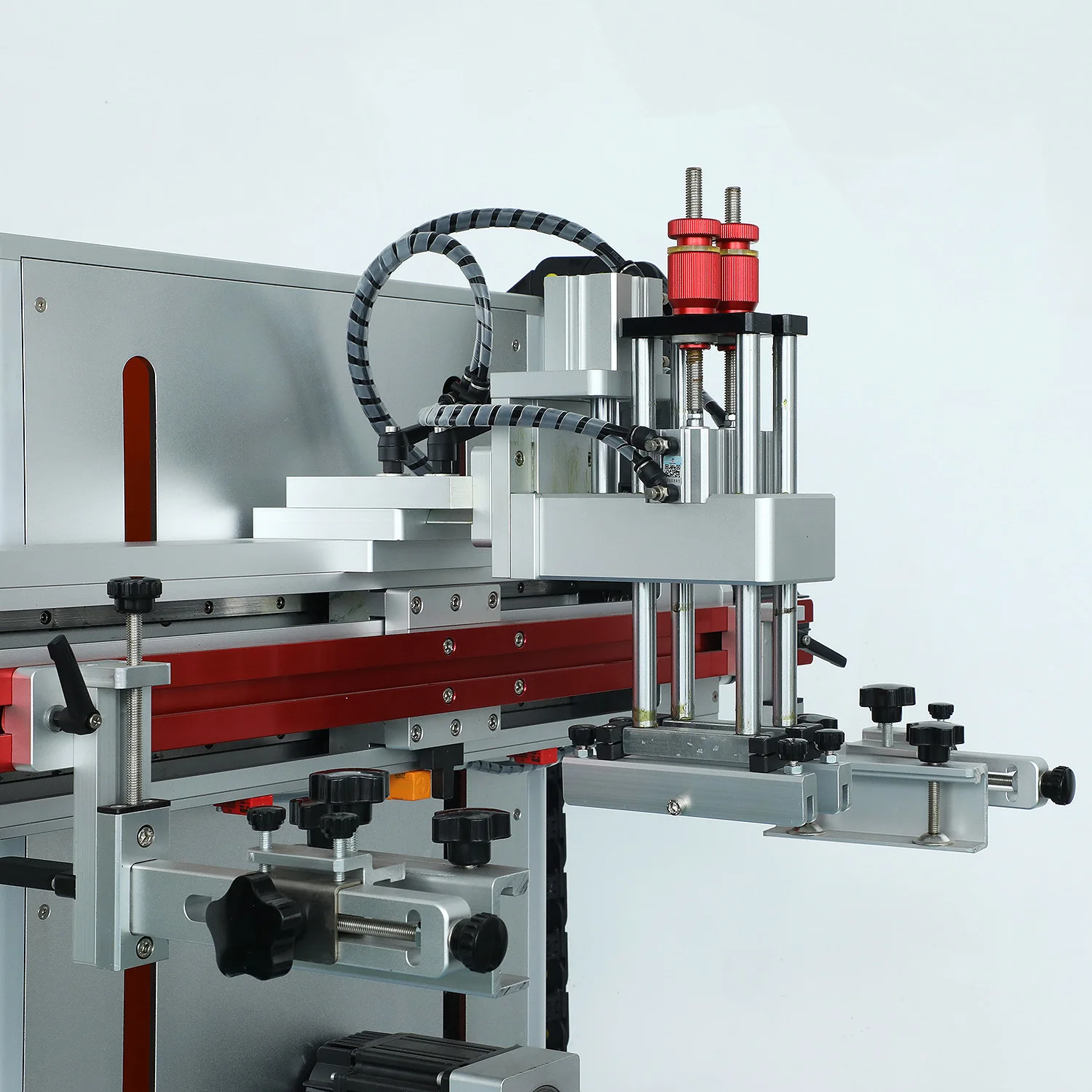

4.The left and right slide bases are printed with dual linear guides and supporting pressure structure, with accurate printing strength and high precision.

5.Double-cylinder lifting, automatic oil scraping, oil return and lifting platform

6.Adjustable table (floating up and down) and grid (floating up and down)

7.The cylinder used in the machine is imported from Germany

8.Foot pedal emergency stop switch to ensure production safety
9.One year warranty, free repair within one year

Free1.1 Silk screen frame

2.1 Toolset
3.1 English operating instruction
PackagingDelivery time:Within 7 days from the receipt of payment
Loading seapor:Shenzhen port, China
Package:Plywood case/as required
Price term:FOB Shenzhen, CFR, CIF, FCA, EXW etc

Type of payment:Alibaba SINOSURE
Our service1.The guarantee time is 1 year. During this time, if any work piece dose not work well and which is not caused by worker and can not control naturally, the supplier provide it free of charge, but the carrier cost must be in buyer's side.Noted: every machines have matched an urgent foot switch to ensure production safety.
2.The supplier must make sure the machine all work well before package.
3.We will provide the working video after delivery the machines.
4.Welcome your engineers to come to our factory for training.
5.In order to benefit good rights and interests for our customers, we have done the testing strictly before the
