Pneumatic Embossing Stamping Machines TC-200 For PV bag and Electronic Products

Model No.︰TC-200
Brand Name︰LC
Country of Origin︰China
Order︰1 set

Product

Contect Us

Product Details

Products Description

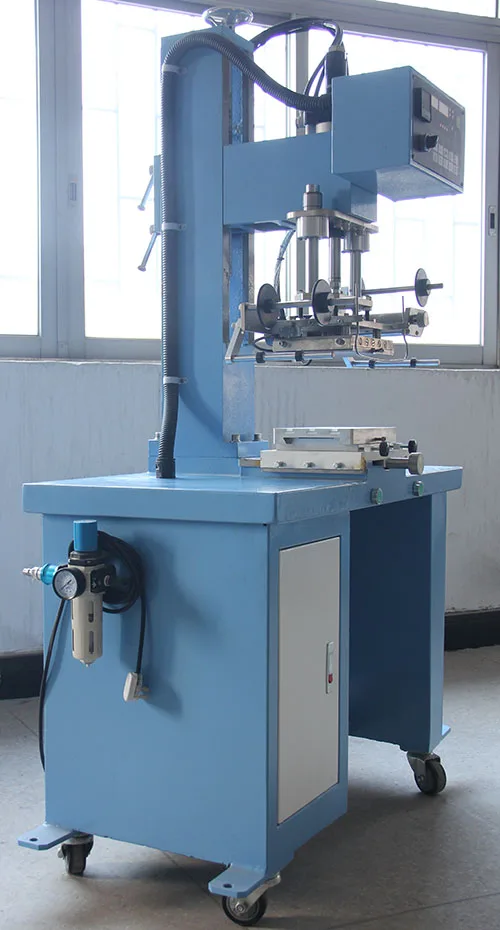

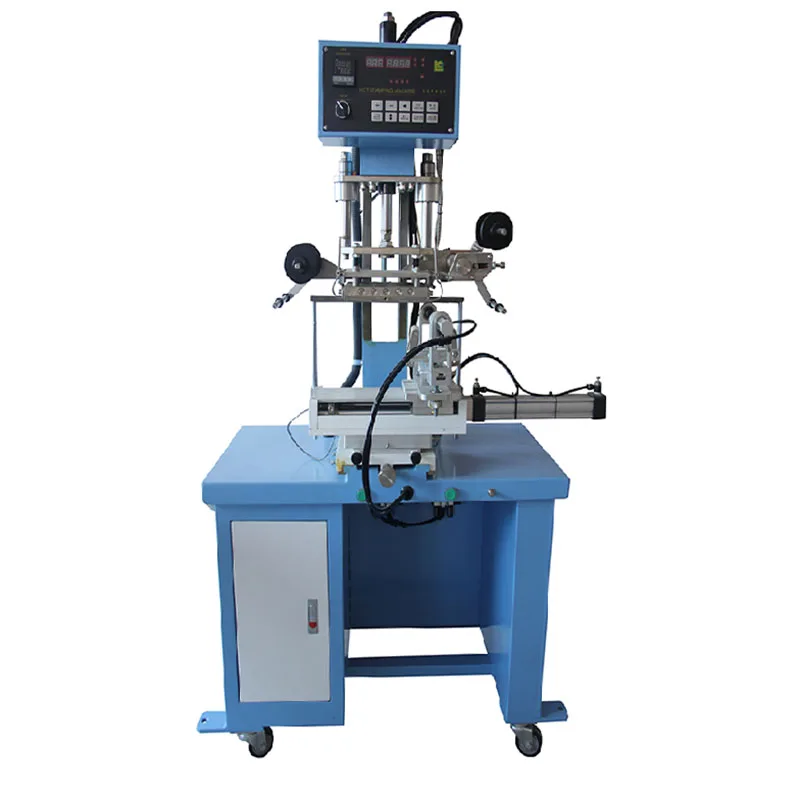

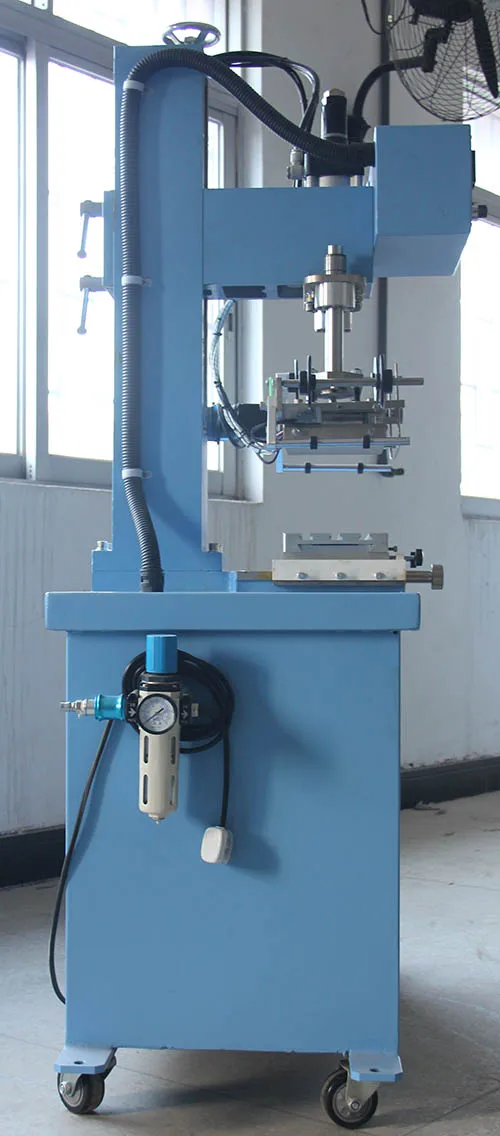

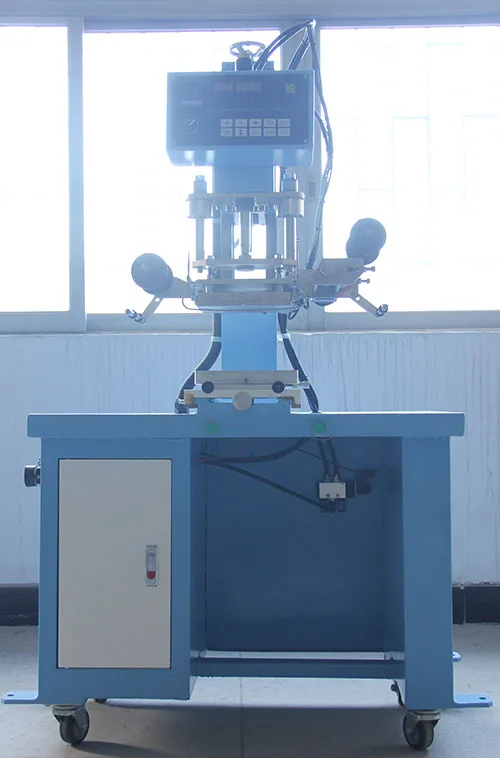

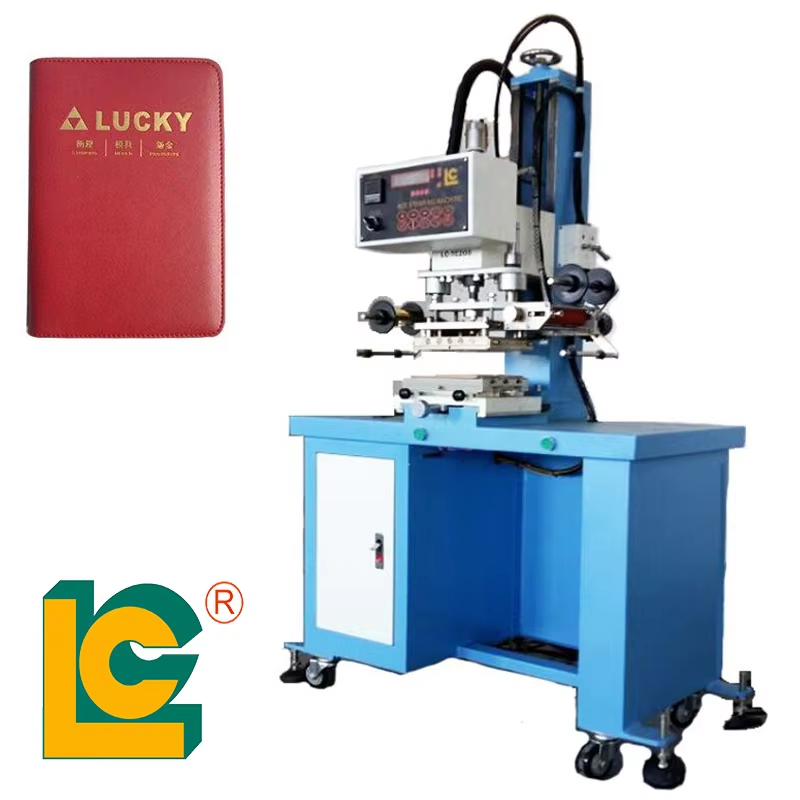

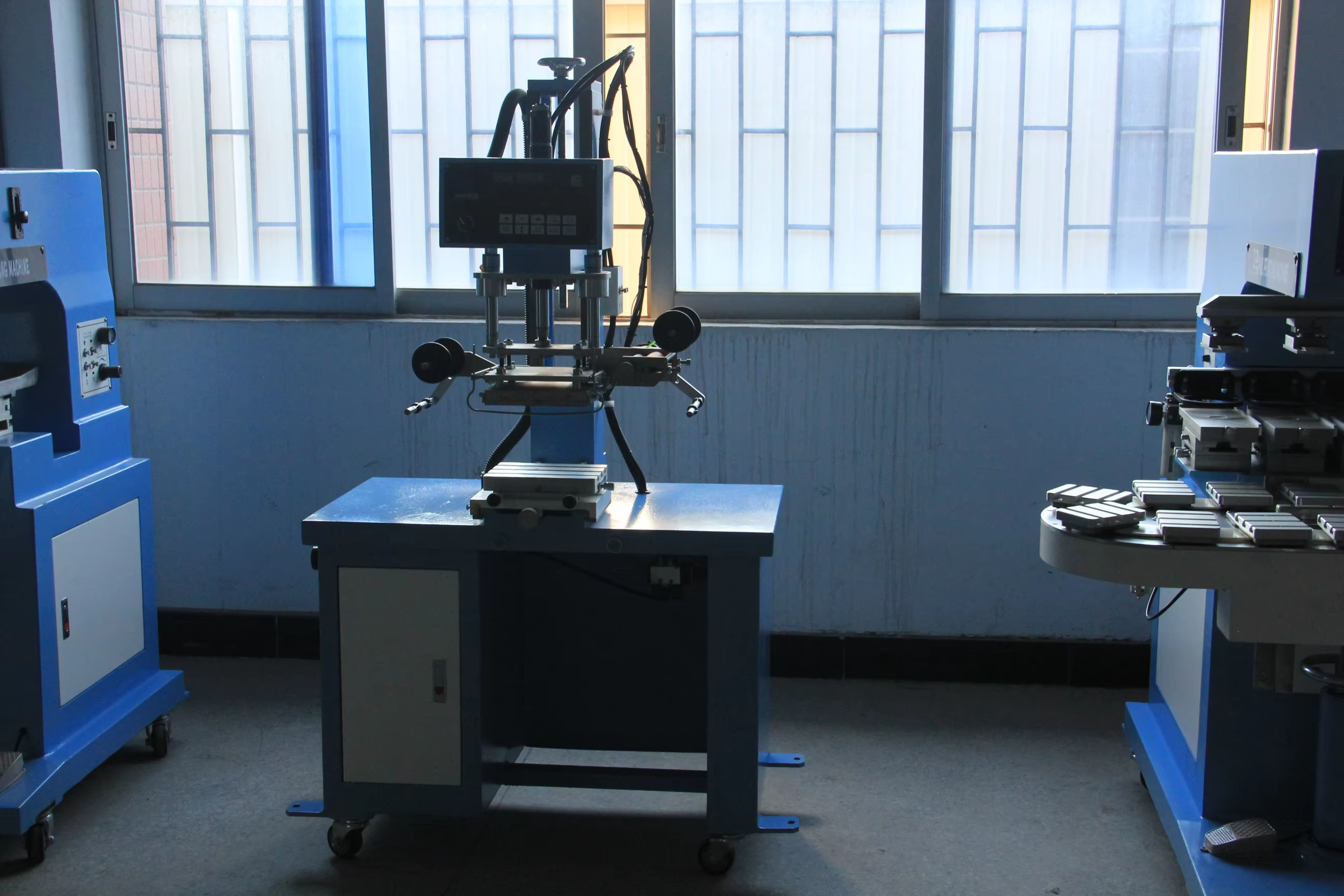

Flat Hot Stamping Machine TC-200

Model NO	TC-200
Hot Stamping plate size	200*150mm
Stamping up-down stroke	53mm
Max stamping speed	20 pcs/min
Heating power	1000W
Temperature control range	0-280℃
Stamping pressure range	<=130kgf
Machine Dimensions(LWH)	7006201600mm
Machine Weight	210kg

Application
Free items
1. 2 Inch gold foil sampe
2. Tool box one set
Function
1.With the crank design,which has powerful stamping pressure and little consumption of air pressure.

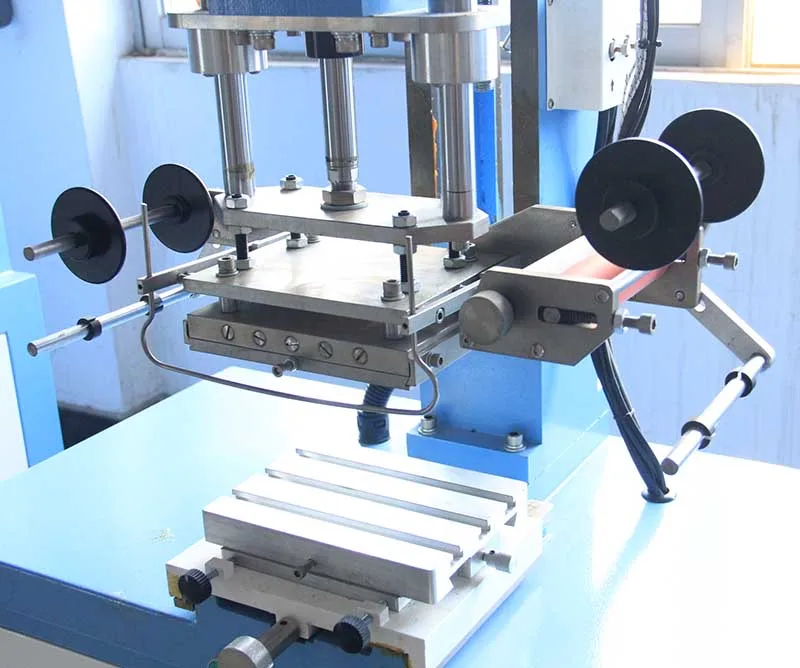

2.Worktable is adjustable in front-back,left-right direction and revolvable,which ensures the quick and safe operation.

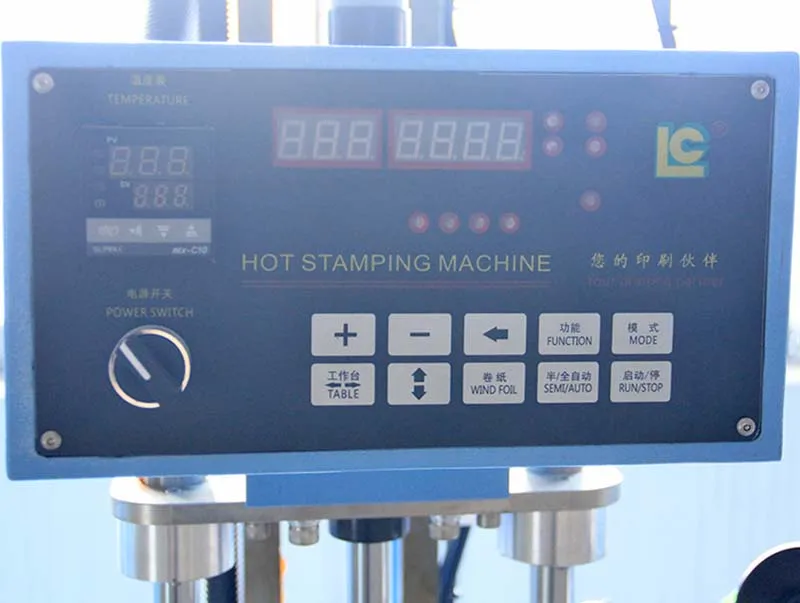

3.Stamping pressure,temperature and time are adjustable.

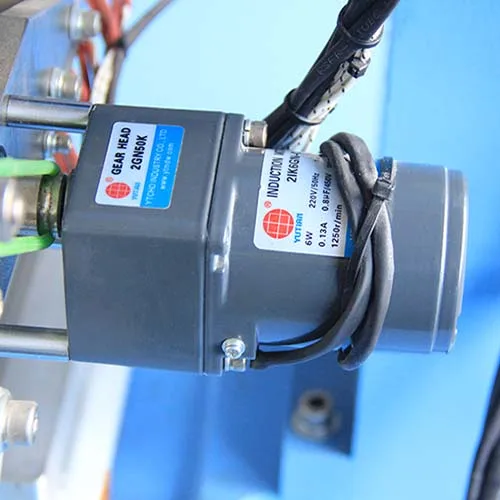

4.Automatic foil feeding and rolling with adjustable function.
5.Height of the stamping head is adjustable.
