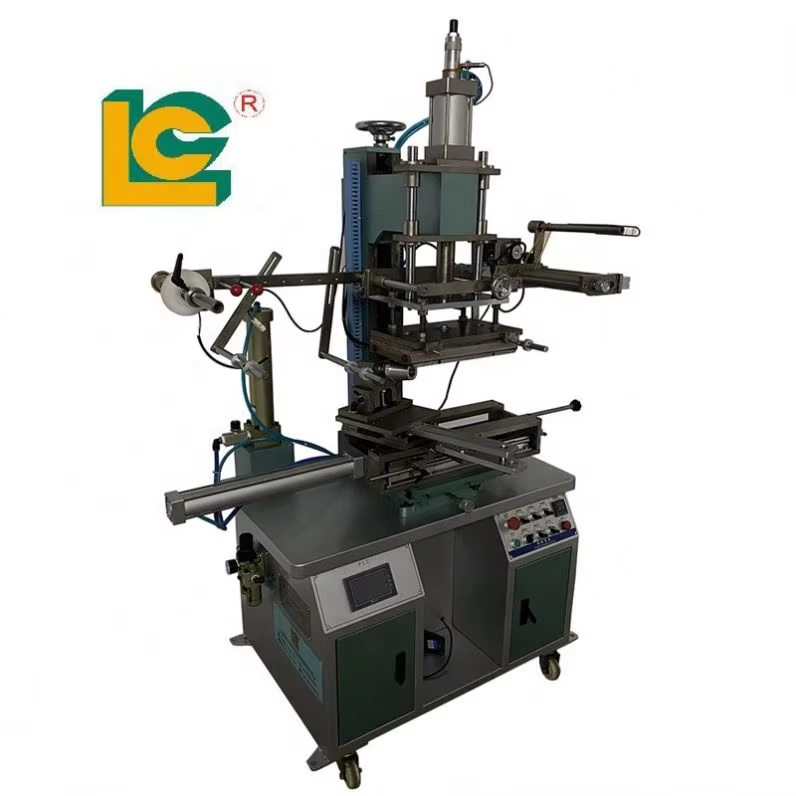

Disposable paper cup Hot foil stamping machine 300RT with rotating Table for Plastic cup、Paper cup

Model No.︰LC-300RT
Brand Name︰LC
Country of Origin︰China
Minimum Order︰1 unit
Product
Contect Us

Product Details

Product Description

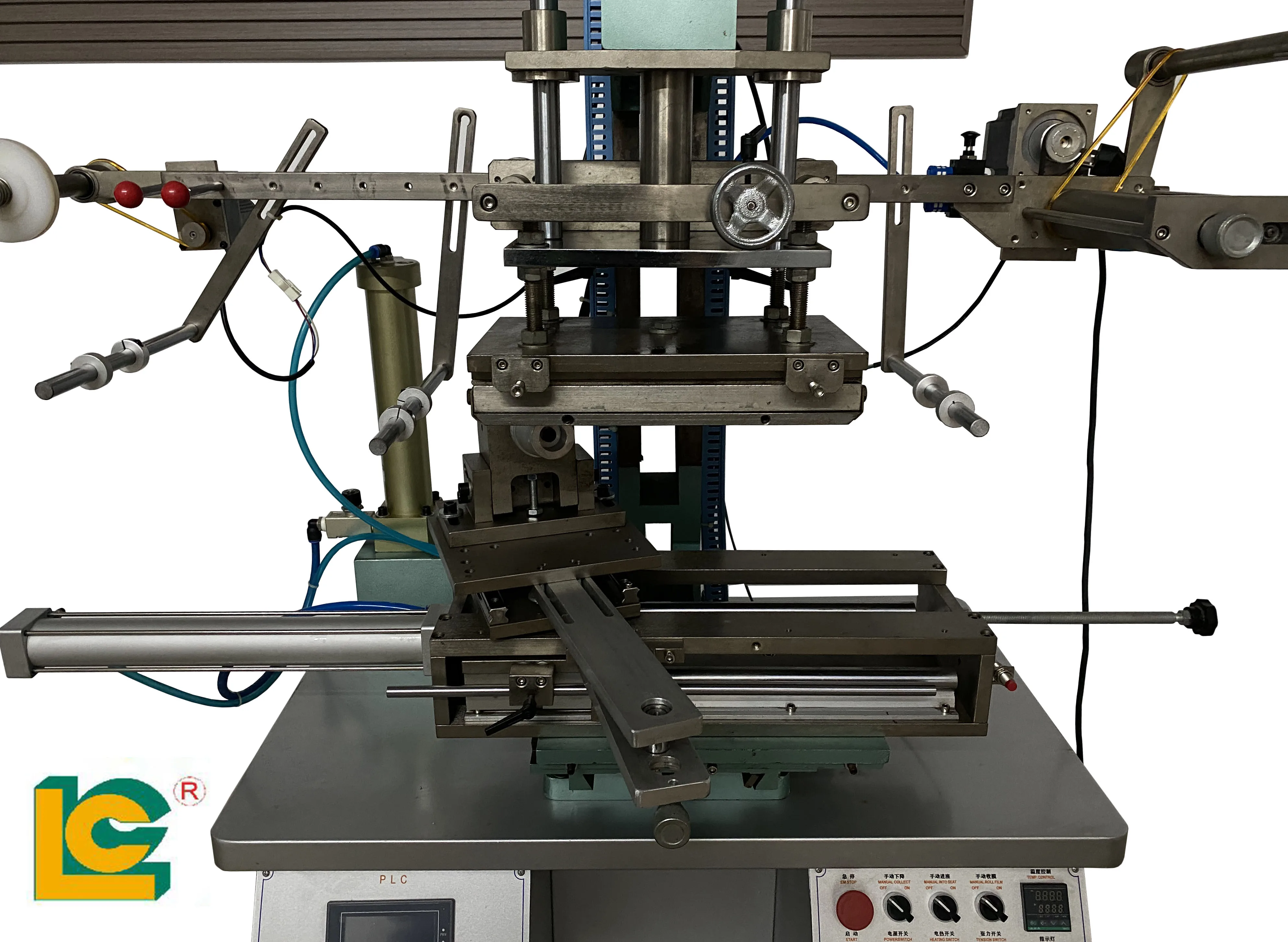

PLC Hot Stamping Machine with Rotating Table
This hot stamping machine with PLC control can help you to operate the machine easily. It is suitable for plastic cup , paper cup, bottle and any other tapered products



Machine advantage

1 An electronic controller IC integrated multifunction procedures to ensure that the machine to roll stamping , round surface, such as a multi-purpose pressure round running.
2 Gilding press elbow mechanism design, less compressed air consumption, strong steady pressure.
3 Stamping pressure, temperature, hot pressing time is adjustable.
4 Work table can be customized to move back and forth automatically, it is easy tofacilitate safe and fast operation.
5 Work table can swing around a center of rotation of the workpiece for rolling without slipping.
6 automatic document feeder, collection, and adjustable. Taiwan OUTAI motor, and it can be customized for Two-speed motor and high precision positioning
7.The work table level shuttle is using the wind to push oil conversion device, the working mechanism drives the workpiece rotate smoothly stamping, stamping stable quality.

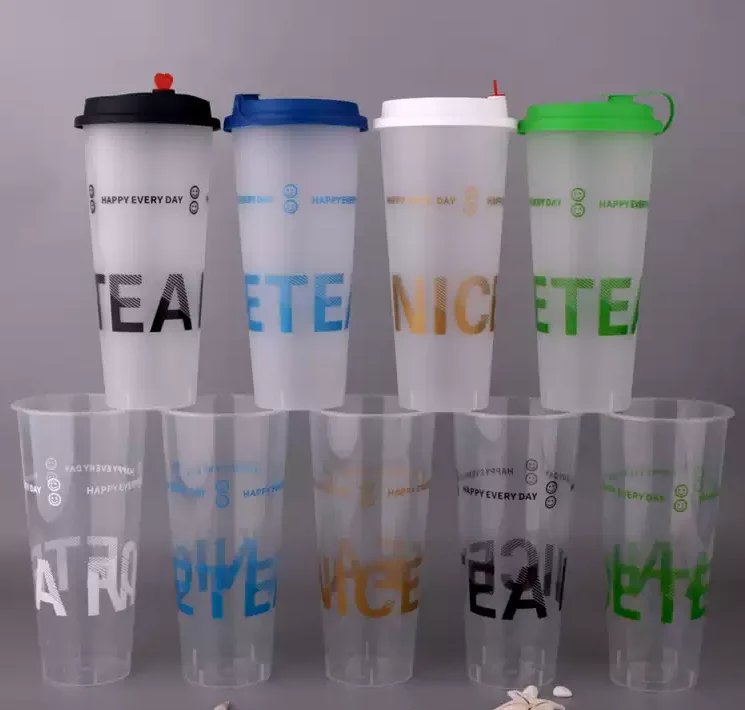

Printing Effect




Specification
item
value
Type
Heat Press Machine
Applicable Industries
Printing Shops, Other
Condition
New
Plate Type
Letterpress
Place of Origin
Dongguan
Brand Name
LC
Usage
Other
Automatic Grade
Semi-automatic
Color & Page
single color
Voltage
220V
Weight
500KG
Warranty
1 Year
Key Selling Points
High-accuracy
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Platen Size
200*150mm
Driven Type
Pneumatic
Model number
LC-300RT
Hot Stamping plane plate size
200*150mm
Cylinder size
80mm
Wattage
2500W
Max.stamping pressure
4900N
Max.stamping speed
1000 pcs/hr
Machine Dimensions(L*W*H)
900*750*1800mm
Stamping pressure range
≤1000kgf
Air Pressure
0.5-0.7MPa
Power
220V,60Hz



Price Terms︰ FOB Shenzhen , China

Packing︰ Wooden case

Lead Time︰ 60 Days

Standards Certificate︰ CE

Application area︰ Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops,

Main Parts︰ PLC, Pressure vessel, servo motor, CCD image positioning
