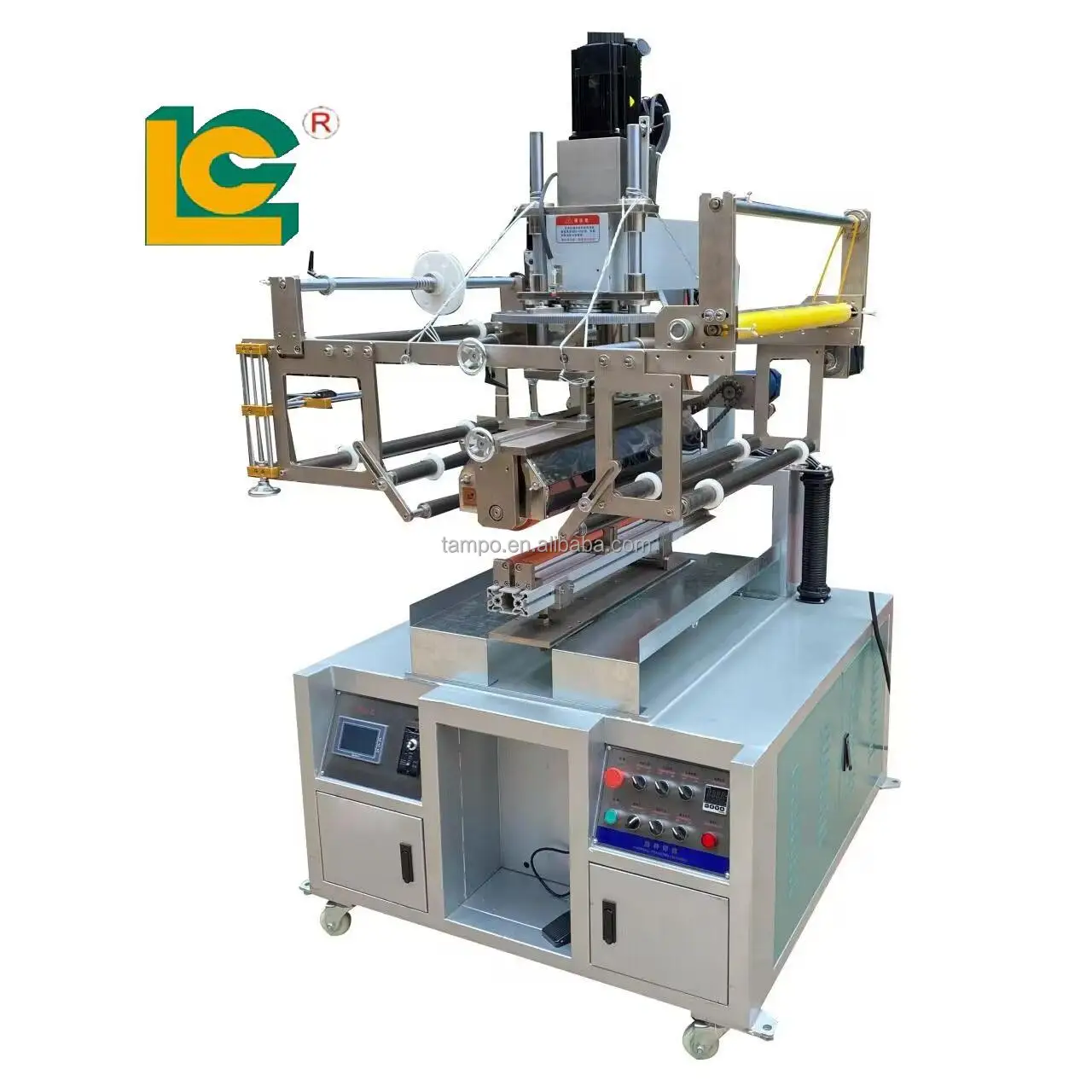

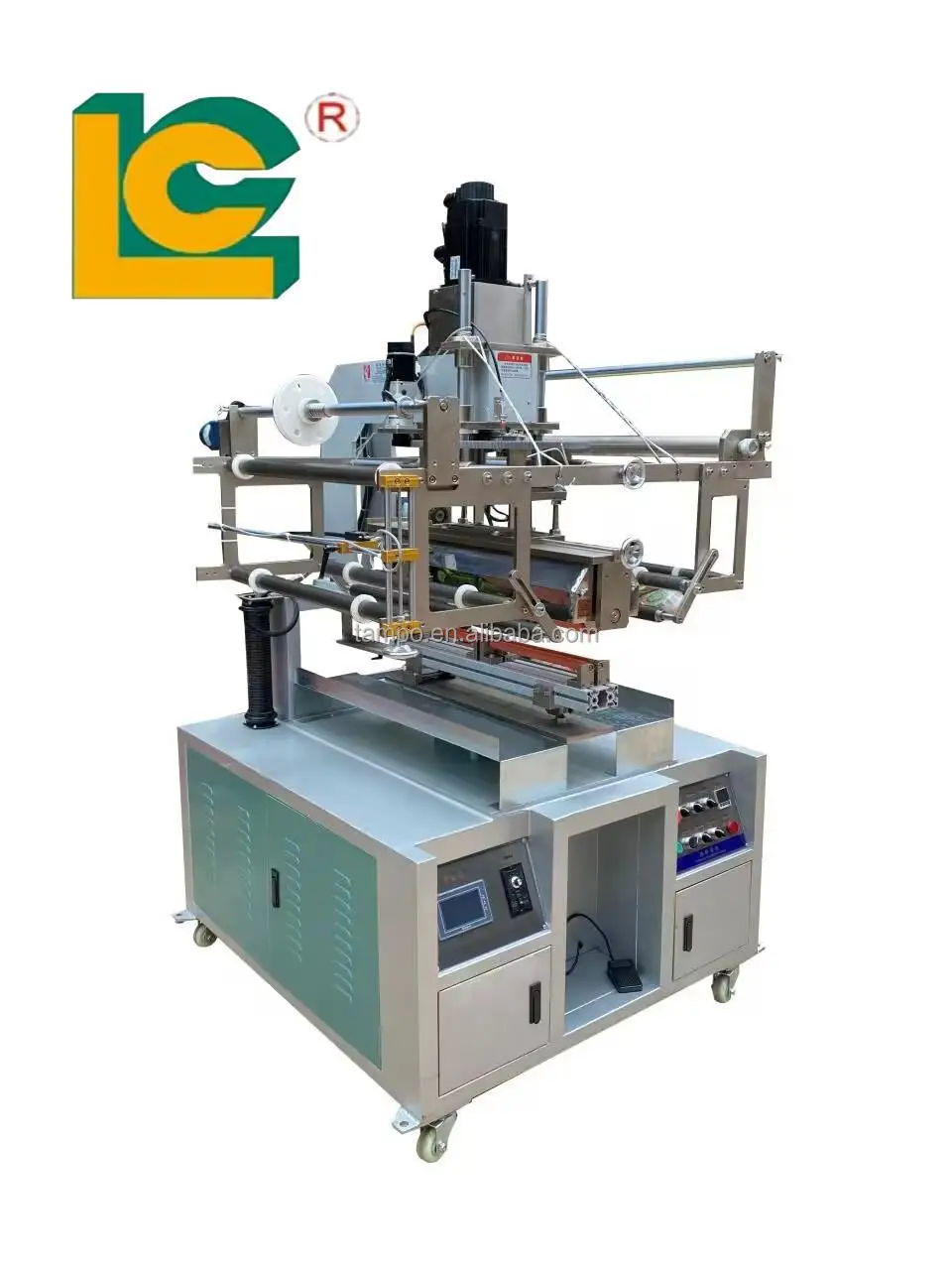

two Servo motor electric golf ball arm heat transfer machine TH-600G for Gold clubs, baseball bats, fishing rod

Model No.︰LC-TH-600G
Brand Name︰LC
Country of Origin︰China
Minimum Order︰1 UNIT

Product

Contect Us

Product Details

Product Description

The TH-600G heat transfer machine has a beautiful appearance and is very suitable for heat transfer printing of Gold clubs, baseball bats, fishing rod

Heat transfer shape: Long round rob conical.

Advantages:

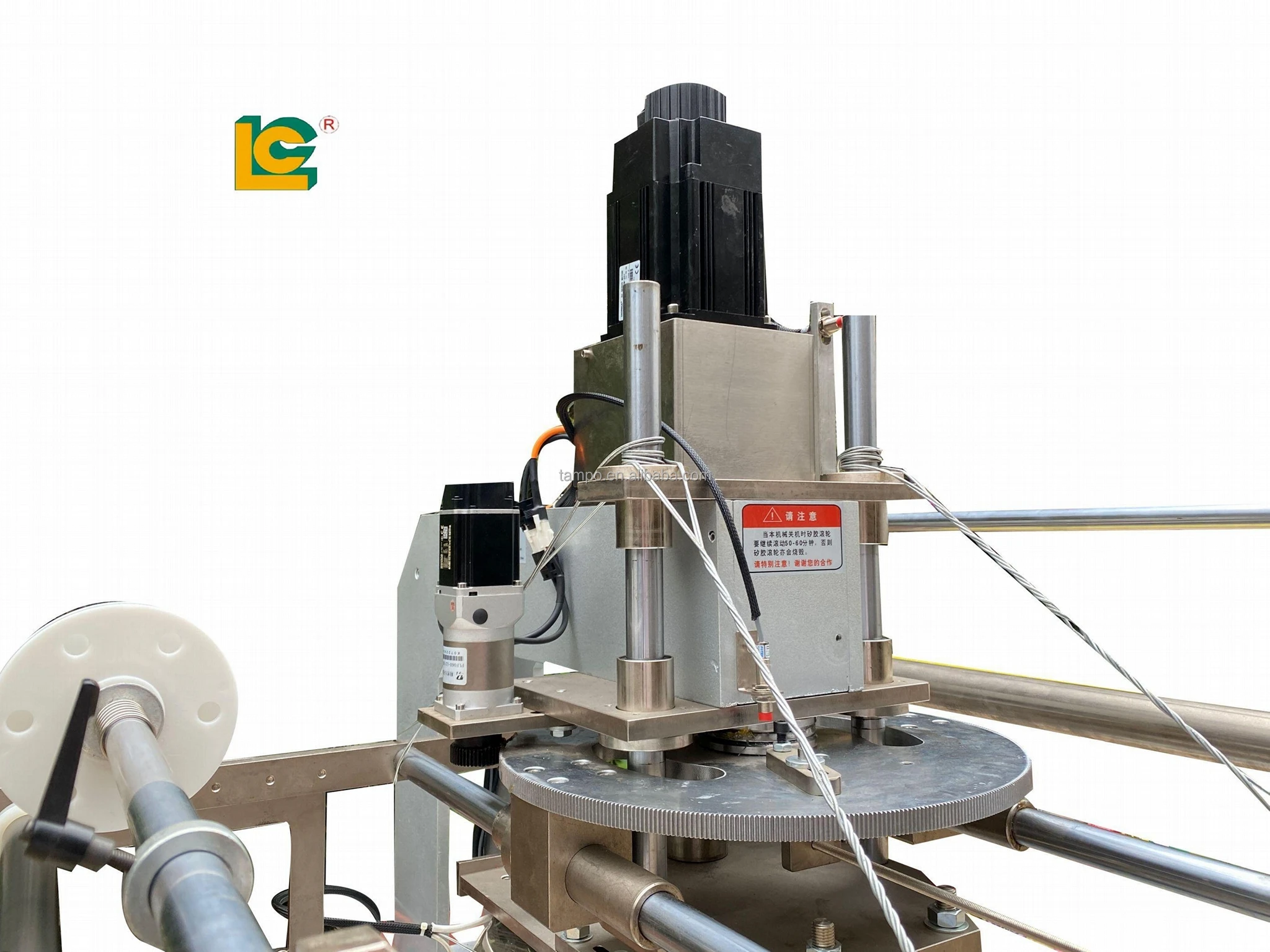

1, Two servo motors, do not need air compressor, pure electric operation
2, The power adopts air pressure control, pressure guarantee, stable speed;
3, Hot stamping features: hot stamping adopts three-point orientation, smooth hot stamping, hot stamping using a rotating structure, so that with taper products hot stamping perfect wrinkle film;
4, The temperature adopts electronic automatic temperature control, foil automatic speed regulation.
5, PLC control, man-machine interface operation;
It is composed of casting structure, the strength is guaranteed and the appearance is beautiful

Specifications

Maximum hot stamping size of rubber wheel	600mm	Diameter printing size	¢16~ 50mm
Working pressure	250-350KG	Rated power	4000W
Working power supply	220V	Machine size	150012002000mm
Machine weight	700KG	Stamping pressure range of options	≤2500kgf (7bar)
