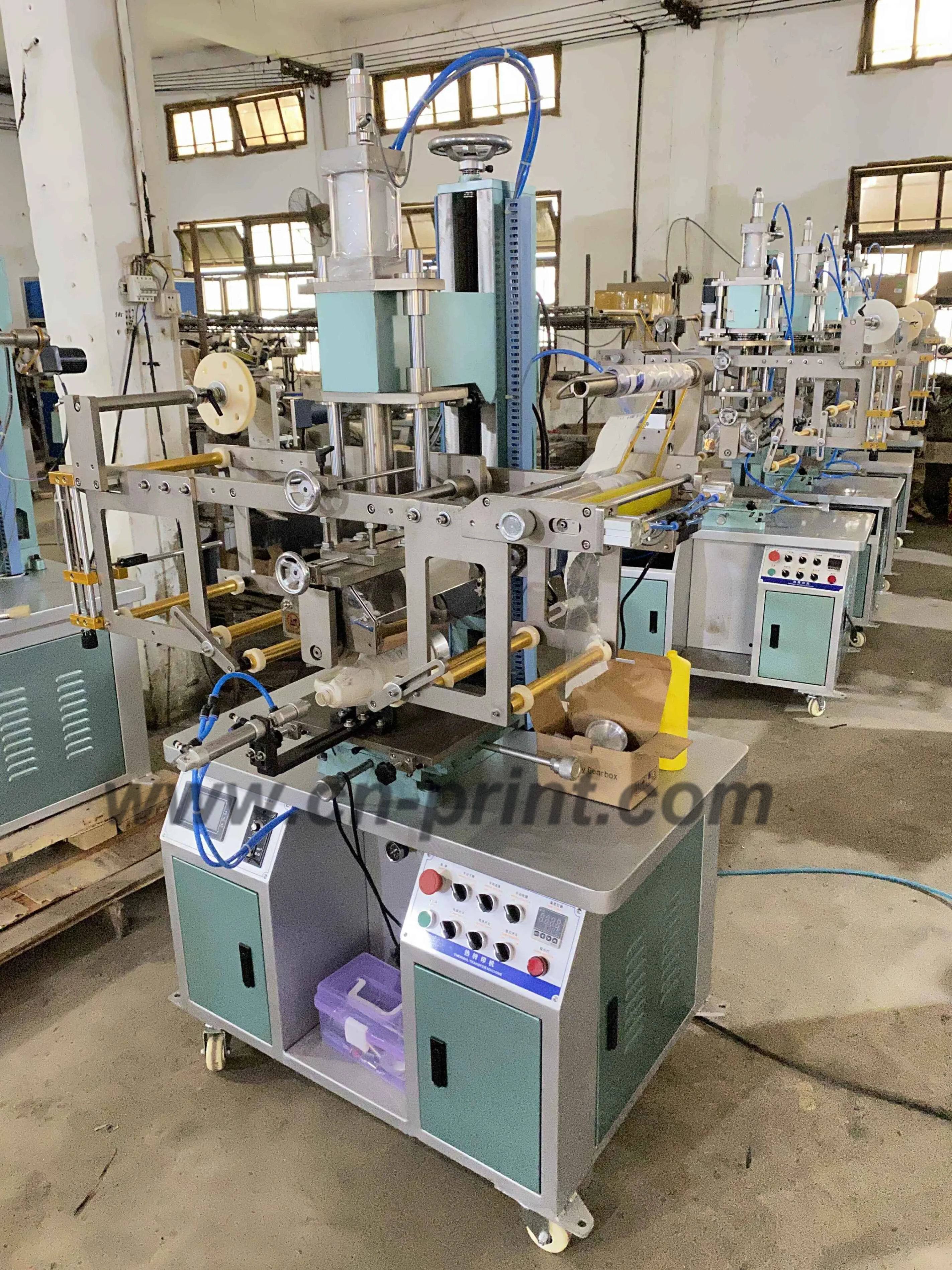

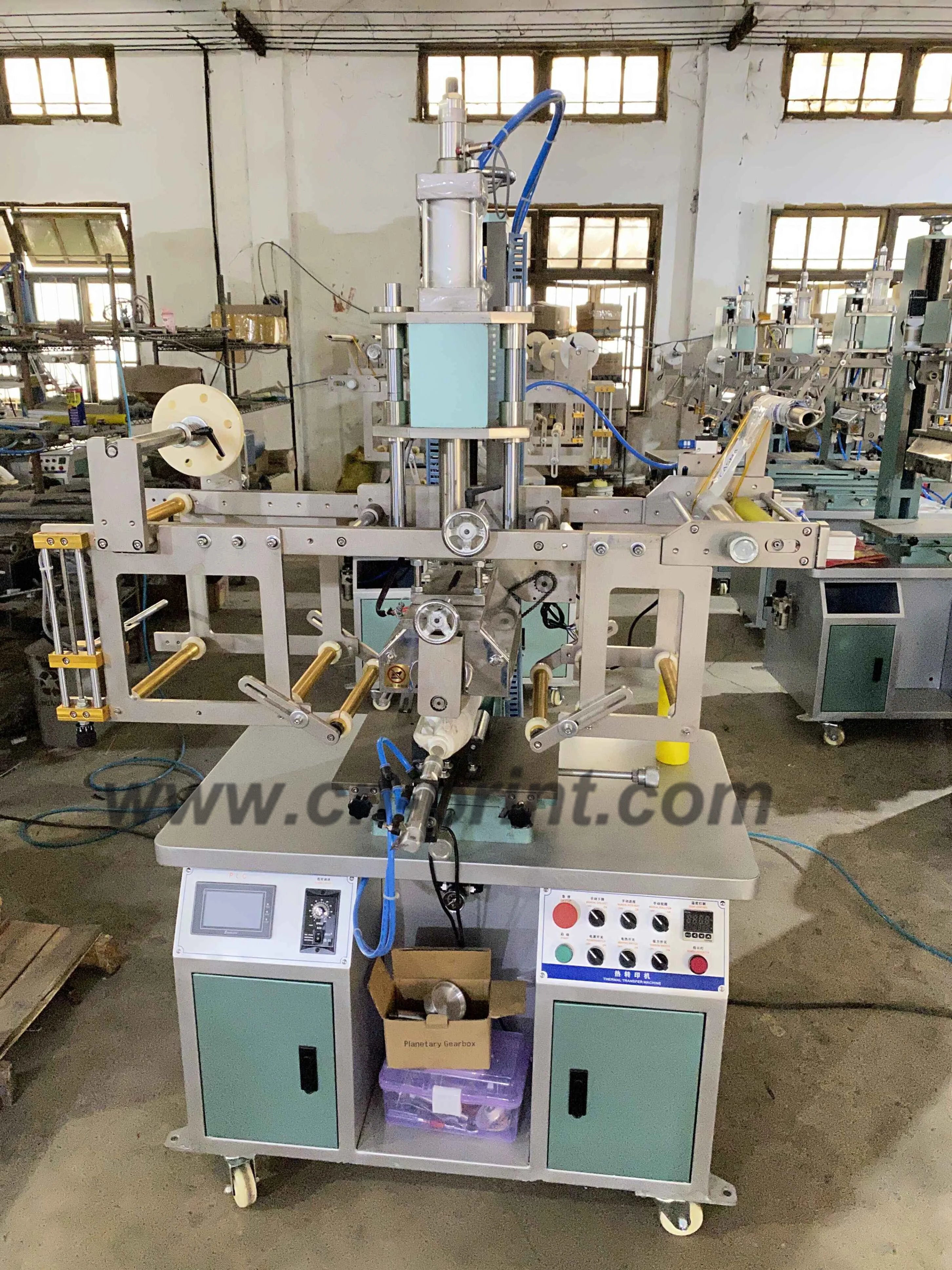

High Quality TH-300R hot foil stamping machine for glass bottles/Plastic Bottle round bowl Stainless steel cylinder lid

Model No.︰LC-TH-300R
Brand Name︰LC
Country of Origin︰China
Minimum Order︰1 pc

Product

Contect Us

Product Details

Product Description

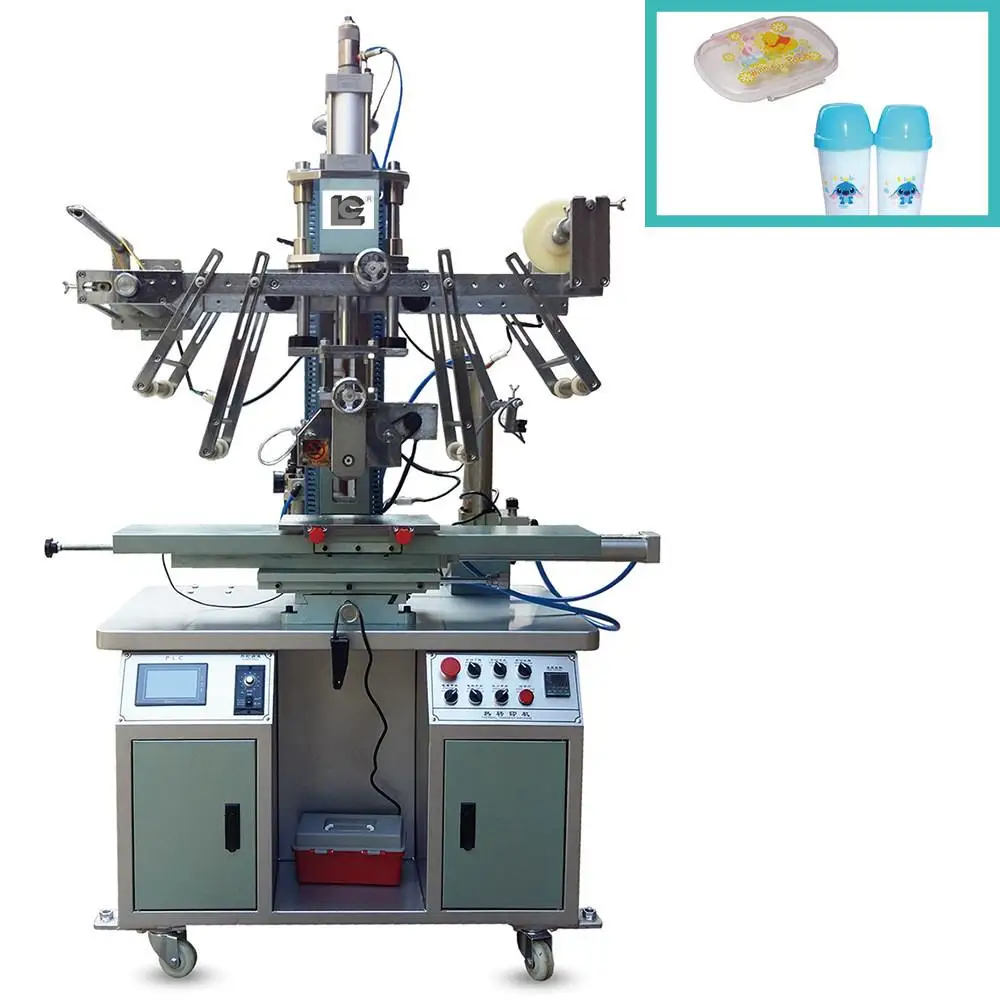

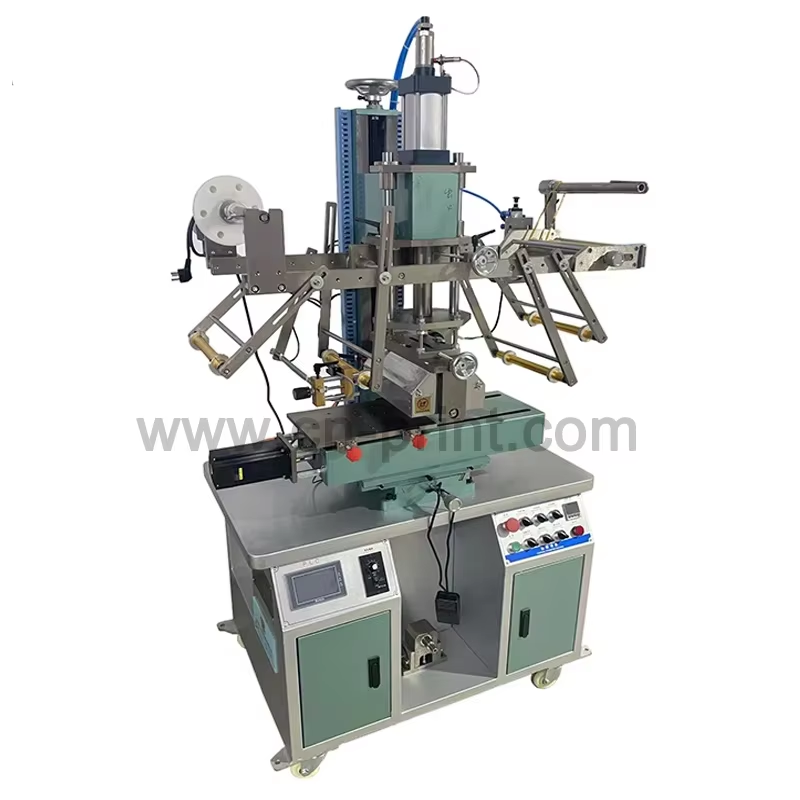

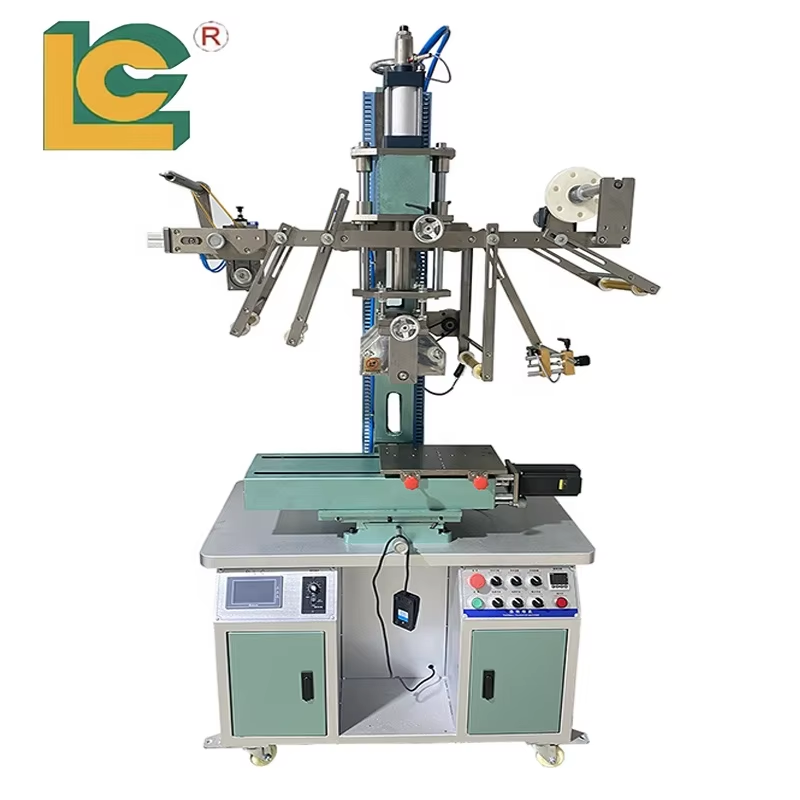

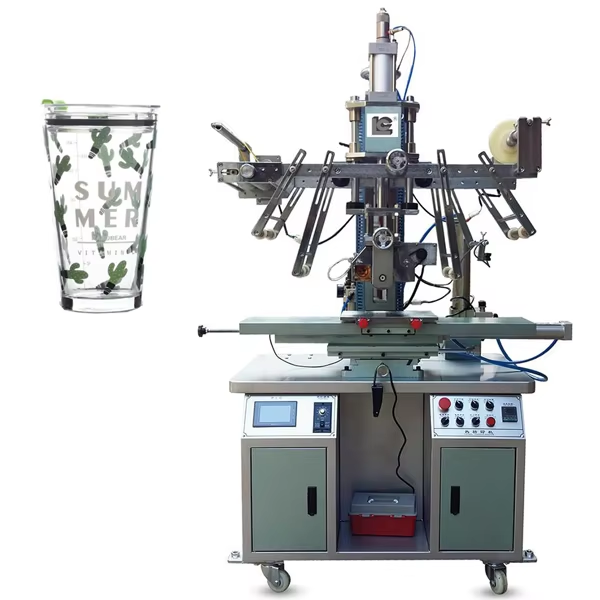

The TH-300R heat transfer machine has a beautiful appearance and is vey suitable for heat transfer printing of ABS, PP, PE, PS, ABS, PVC, etc.

Heat transfer shape: flat, round, oval, conical.

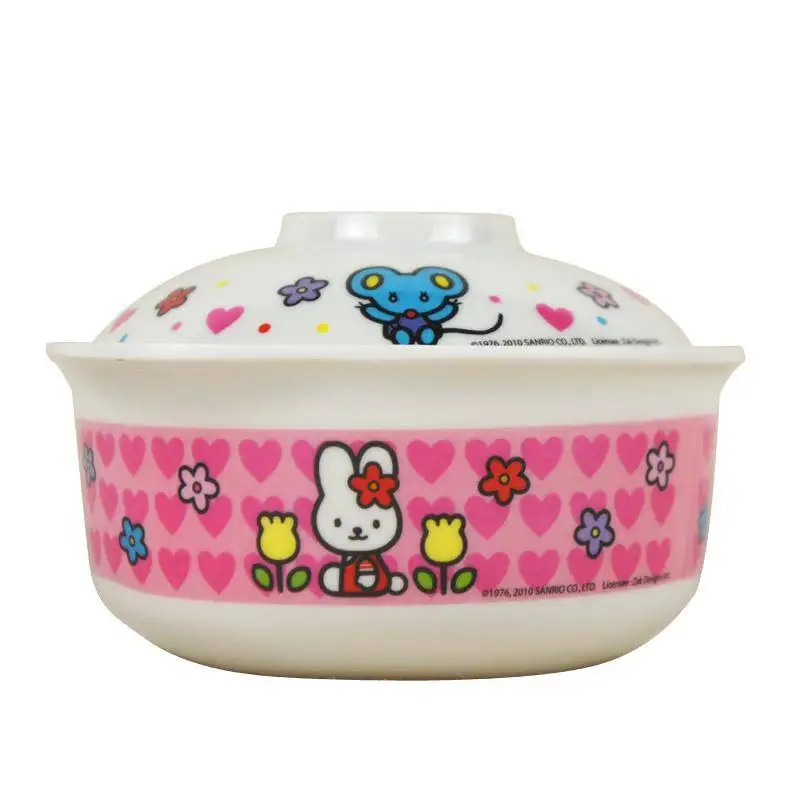

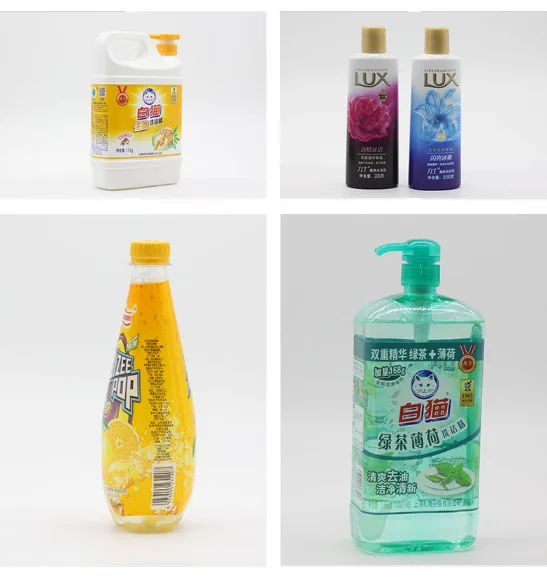

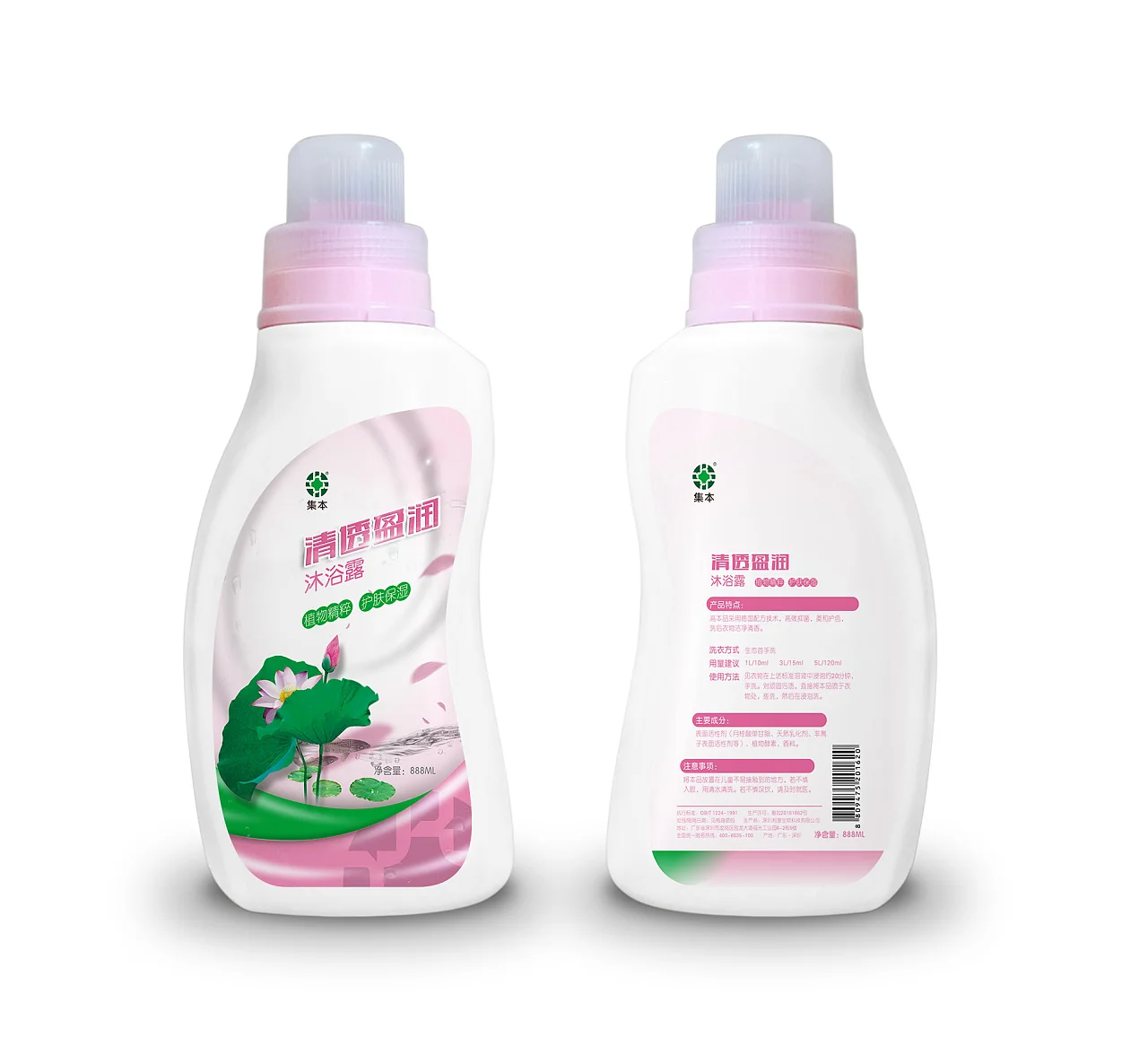

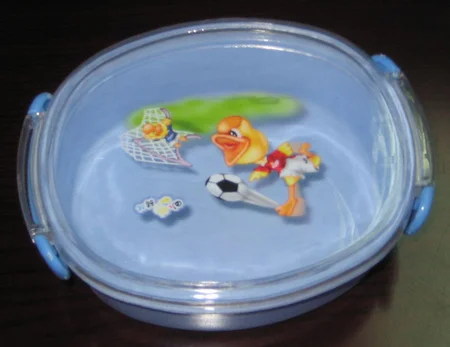

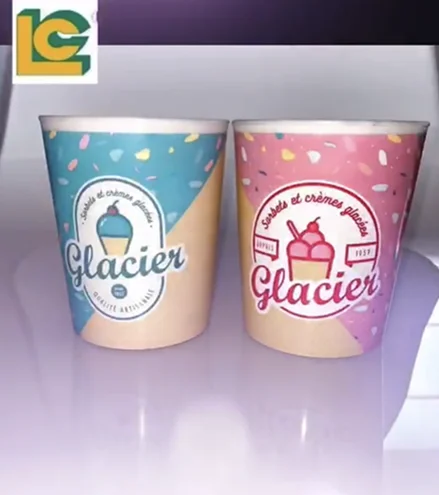

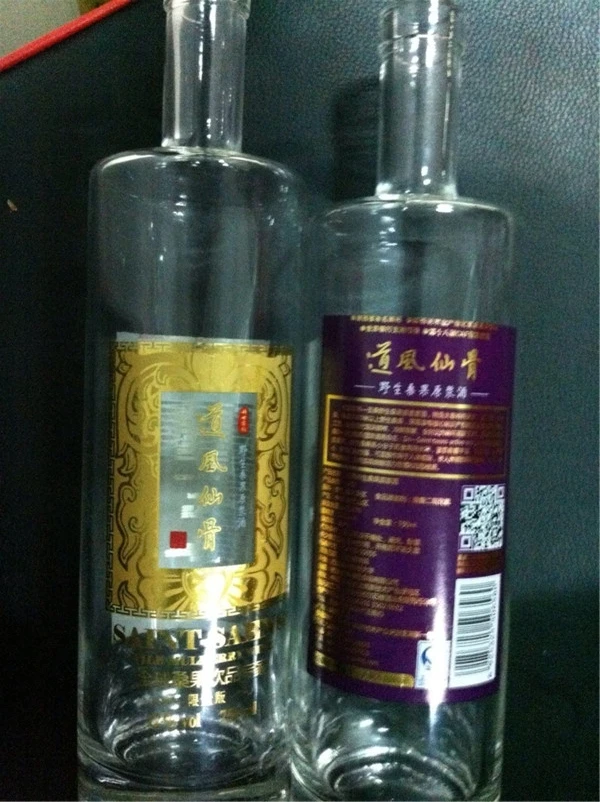

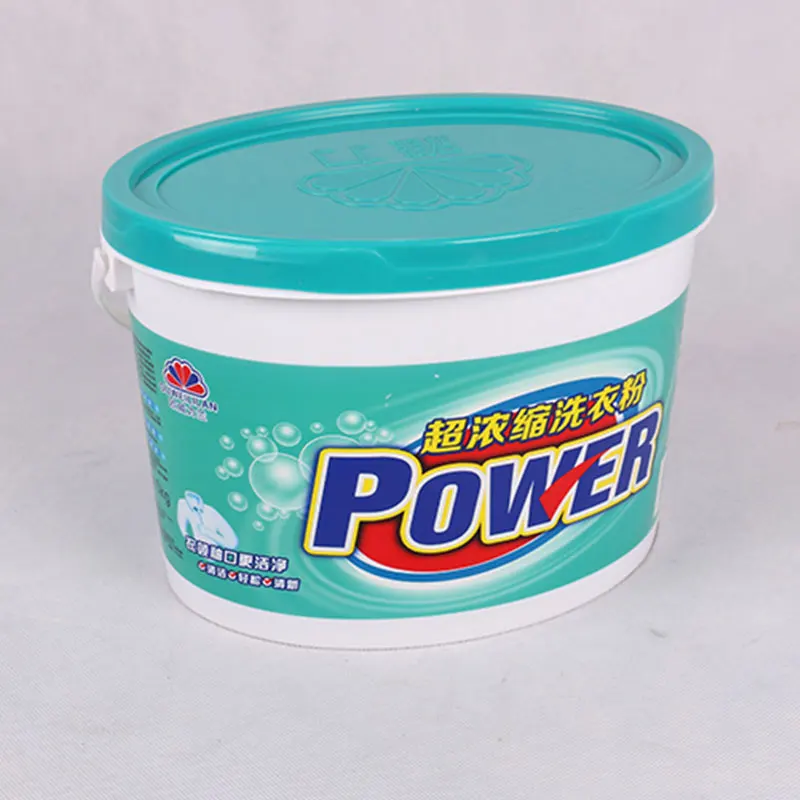

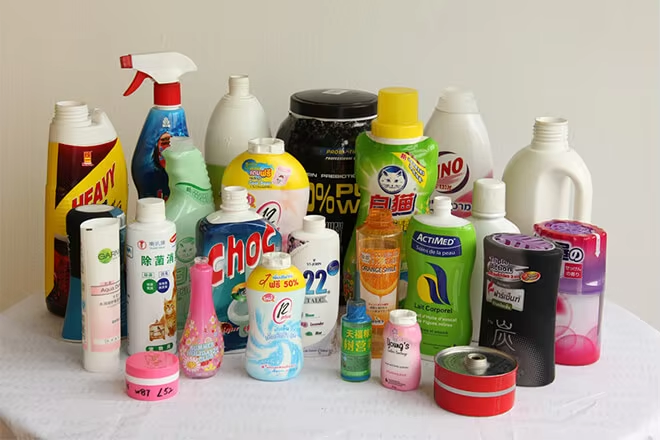

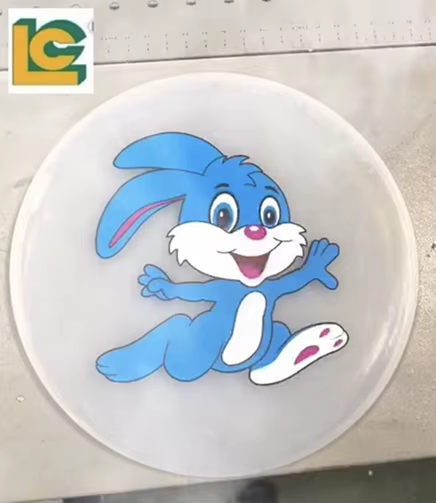

Applications: Scope of application: such as daily chemical bottles, glass bottles, plastic cups, lunch boxes, comb, helmet, kettle, high-end toys, stationery, high-end cosmetics bottles, fishing rods, bait, etc.

1.An electronic controller IC integrated multifunction procedures to ensure that the machine to flat stamping, roll stamping, flat stamping, and round surface, such as a multi-purpose pressure round running.

2. Gilding press elbow mechanism design, less compressed air consumption, strong steady pressure.

3. Stamping pressure, temperature, hot pressing time is adjustable.

4. Worktable can be customized to move back and forth automatically, it is easy to facilitate safe and fast operation.

5. Worktable can swing around the center of rotation of the workpiece for rolling without slipping.

6. automatic document feeder, collection, and adjustable. Taiwan OUTAI motor and it can be customized for Two-speed motor and high precision positioning

7. Equipped with photocell (Taiwan FOTEK electric eye, 250 times per second high-precision motion), which tries to locate the point of thermal transfer paper with precise tracking control.

8. The height of the lettering head is adjustable, stamping 300MM larger workpieces. Germany BOSCH can be a customized cylinder (super seal wear). Using Taiwan Mindman precise control solenoid valve, German NASS coil stable and durable.

9. The work table level shuttle is using the wind to push the oil conversion device, the working mechanism drives the workpiece to rotate smoothly stamping, stamping stable quality.

10. The machine can be customized according to customer requirements horizontal, hydraulic, grinding cross table, two-speed winders, table plus rodless cylinder automatic access, roll-to-roll hot stamping, stamping irregular shaped product development, and so on.

11. Equipped with emergency stop safety devices to protect the safety of the operator.

Specifications

Heating plate size	400* 300mm	Work Table size	300* 400mm
Heating power	3000W	Stamping head adjustable stroke	≤70mm hot head outer diameter 100mm inner diameter of 80mm
Max stamping diameter	φ300mm	Stamping temperature range of options	from room temperature to 280 degrees Celsius
Workpiece taper Range	5-20 degrees	Stamping pressure range of options	≤2500kgf (7bar)
Max.printing speed	500pcs / hr	Swing cylinder stroke adjustment range	≤125mm
Air consumption	165L / min	Power	220 / 380V 60 / 50Hz
Net weight	295KG	Dimensions	1250* 780* 1970mm
