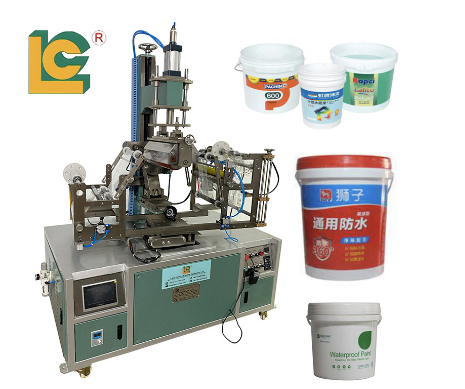

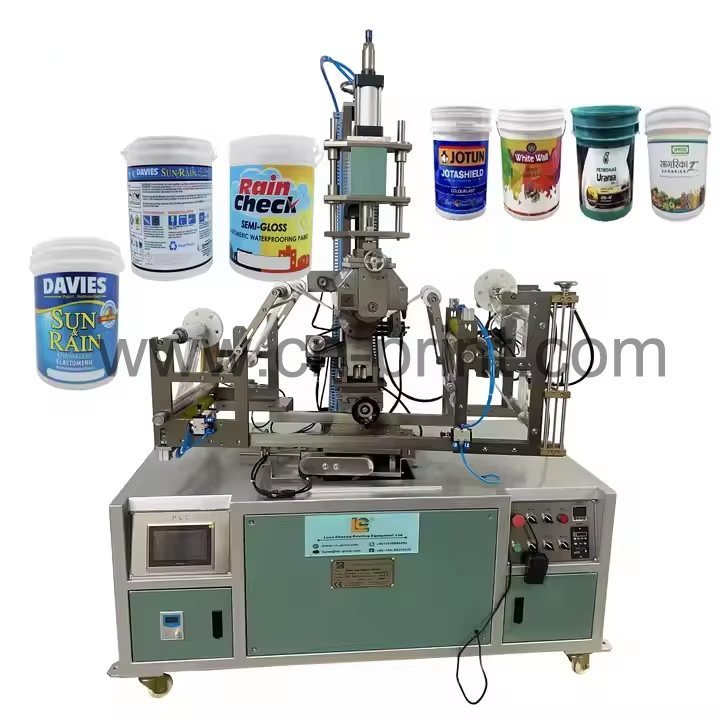

Semi Automatic PLC control Cylinder Roll To Roll big plastic buckets Paper Ribbon Heat Transfer Printing Machines TH-400R For Plastic Paint Bucket

Model No.︰TH-400R
Brand Name︰LC
Country of Origin︰China
Minimum Order︰1 unit
Product
Contect Us

Product Details

Product Description
Factory Direct Sale Pneumatic Plane and Round plastic product heat press machine


The TH-400R heat transfer machine has a beautiful appearance and is mainly used for surface printing of high-end toys, stationery, wood, high-end cosmetics, and so on. Especially suitable for heat transfer printing of ABS, PP, PE, PS, ABS, PVC, etc.
Heat transfer shape: flat, round, oval, conical.

Applications: Scope of application: such as plastic cups, lunch boxes, comb, helmet, kettle, cosmetic bottles, glass bottles, transfer bottles, fishing rods, bait, etc.barrels,
Features:
1. This machine adopts electronic cam three-axis synchronization
2. Driven by servo motor
3. Using PLC control. Man-machine interface operation
4. Rewinding film adopts stepping motor, electric eye positioning
5. Film unwinding speed is adjustable, spindle speed is adjustable
6. The hot stamping pressure is pneumatically driven.
7. Set five-barrel specifications inside, archive
8. Adjustable taper size
9. With magnetic powder tension control
Specifications
Model No.
TH-400R
Hot stamping area
width 300MM
Maximum barrel diameter
400MM
Minimum diameter of barrel
150MM
Hot stamping pressure
5-7bar
Hot stamping temperature
room temperature~350℃
Hot head stroke
80MM
Heating power
3500W
Power supply voltage
220V/50HZ
Machine size
1500*1100*1900MM
Machine weight
800KG

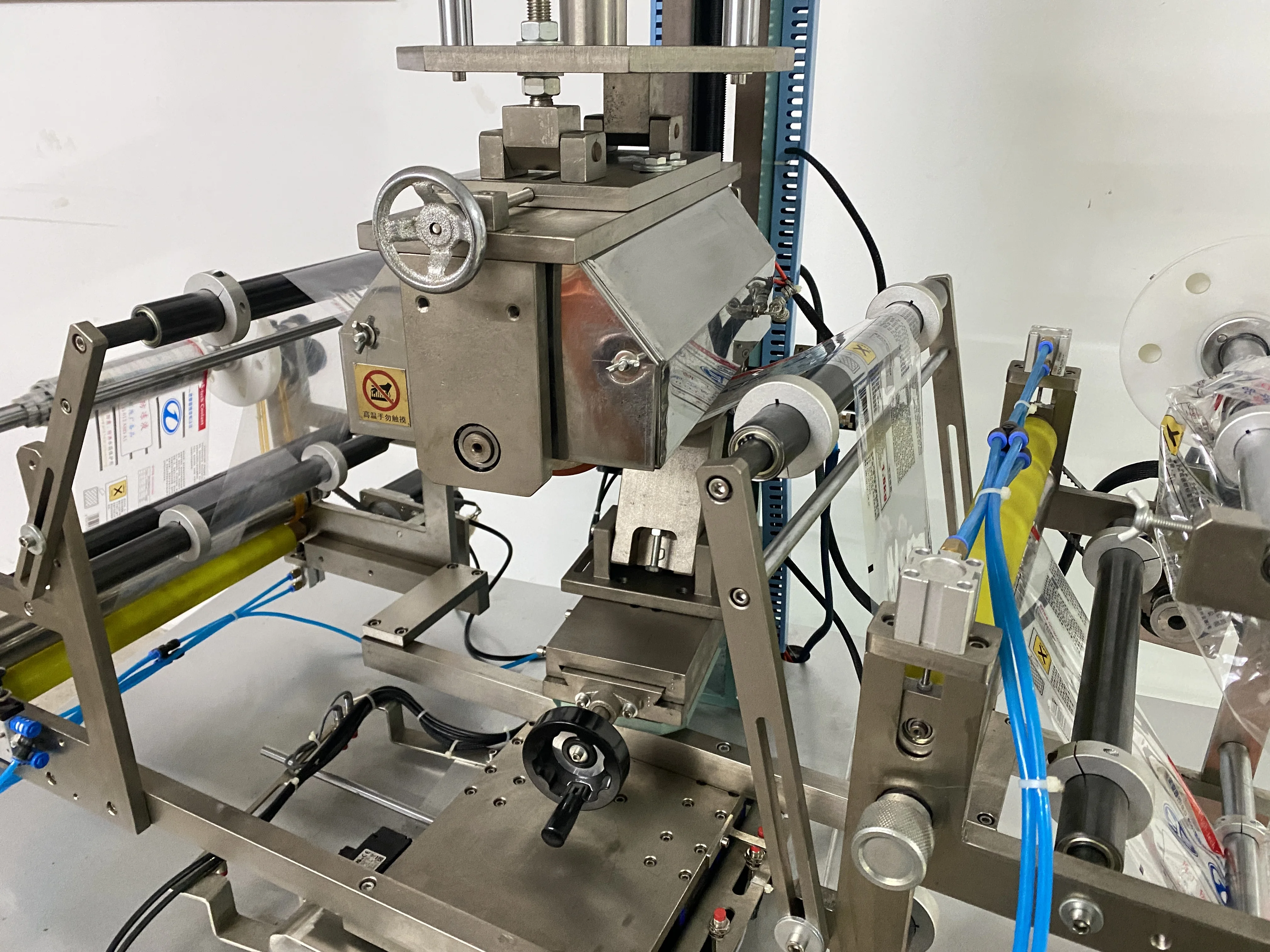

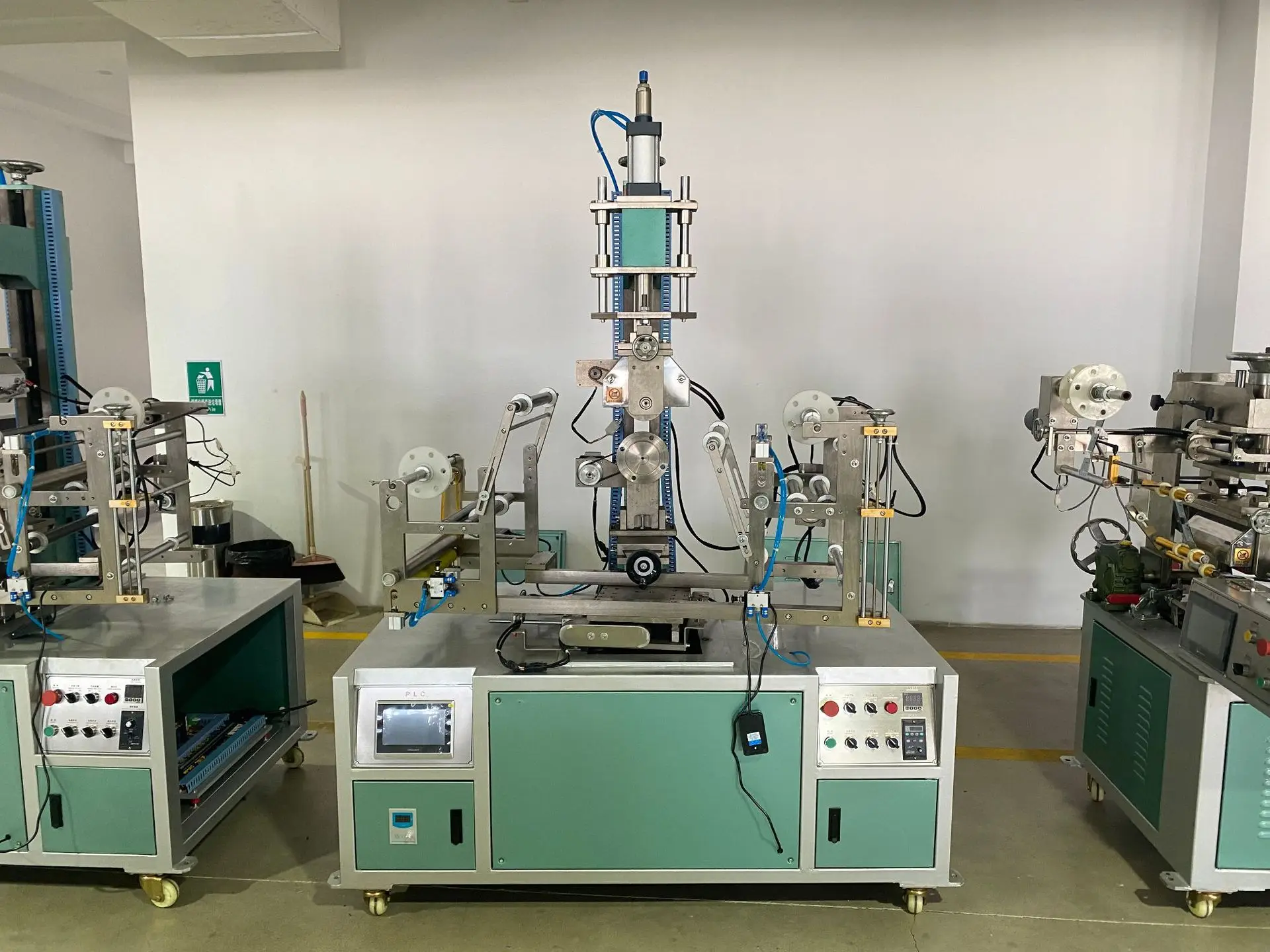

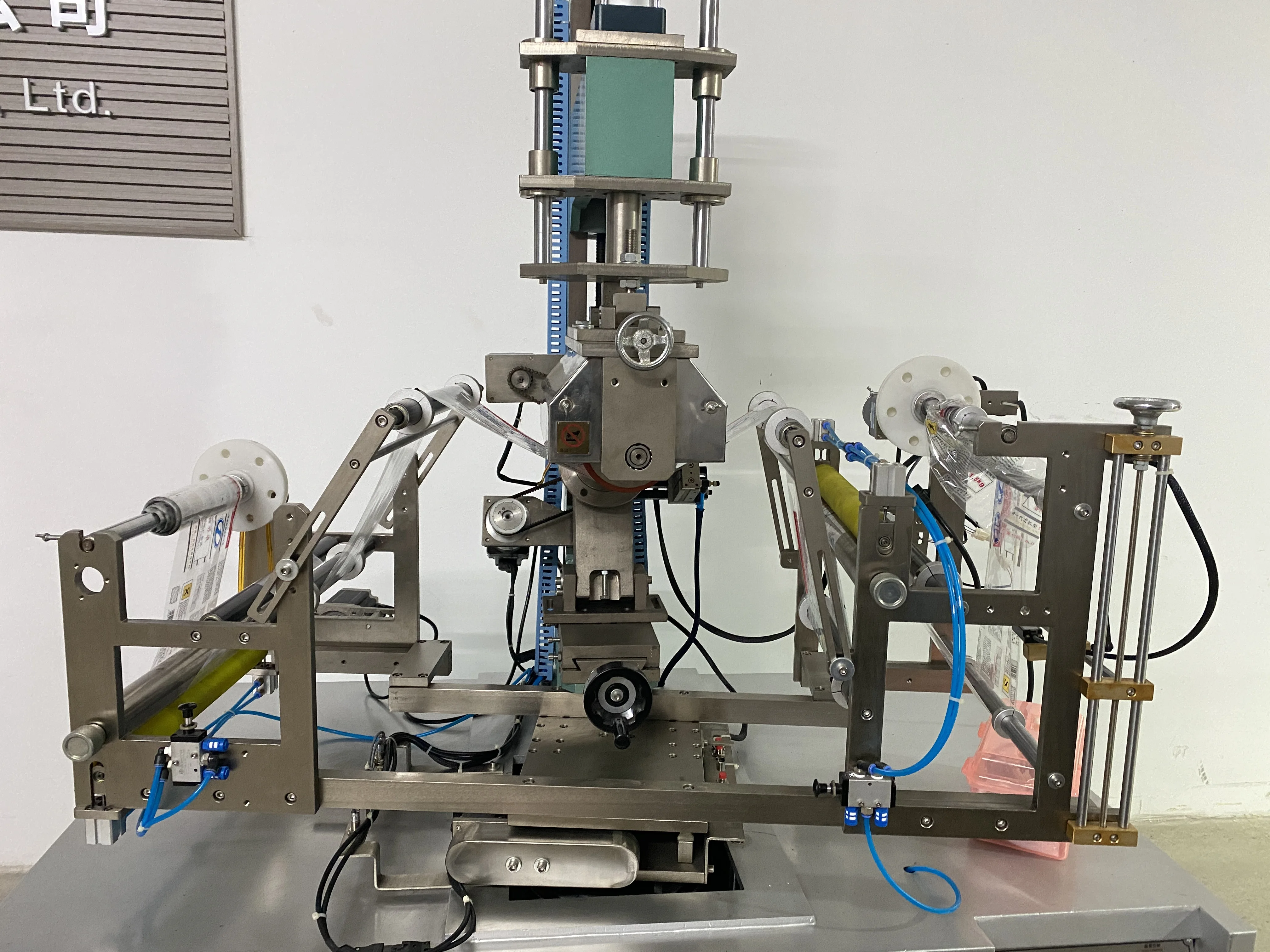

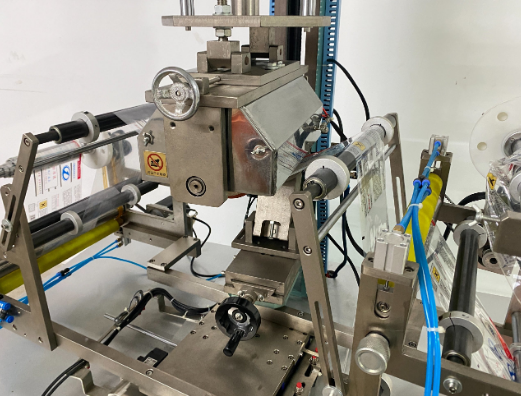

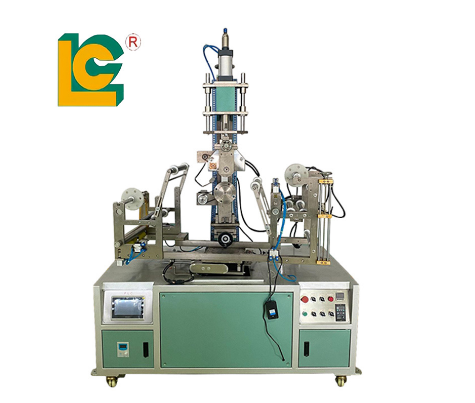

Machine Photos

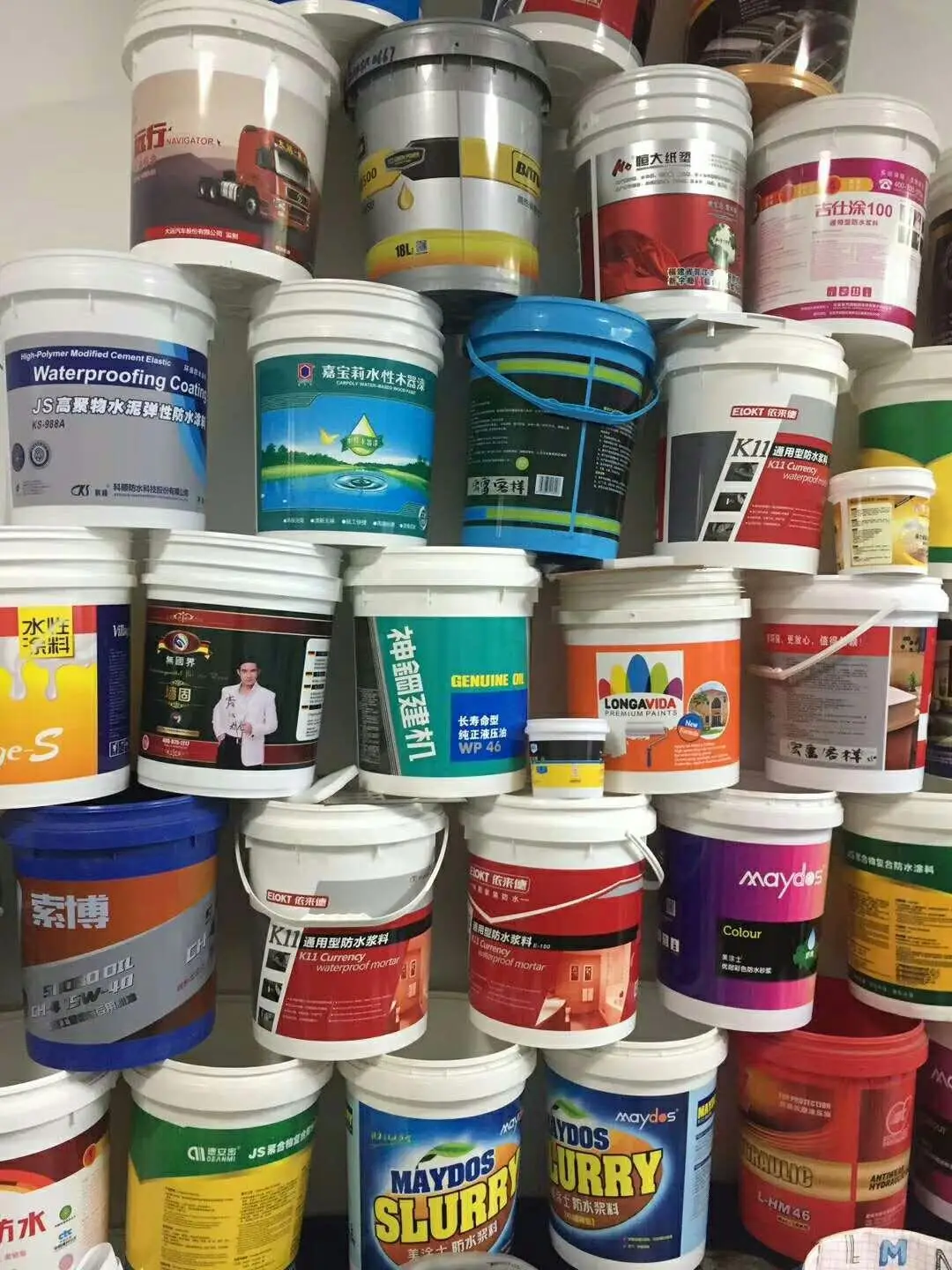

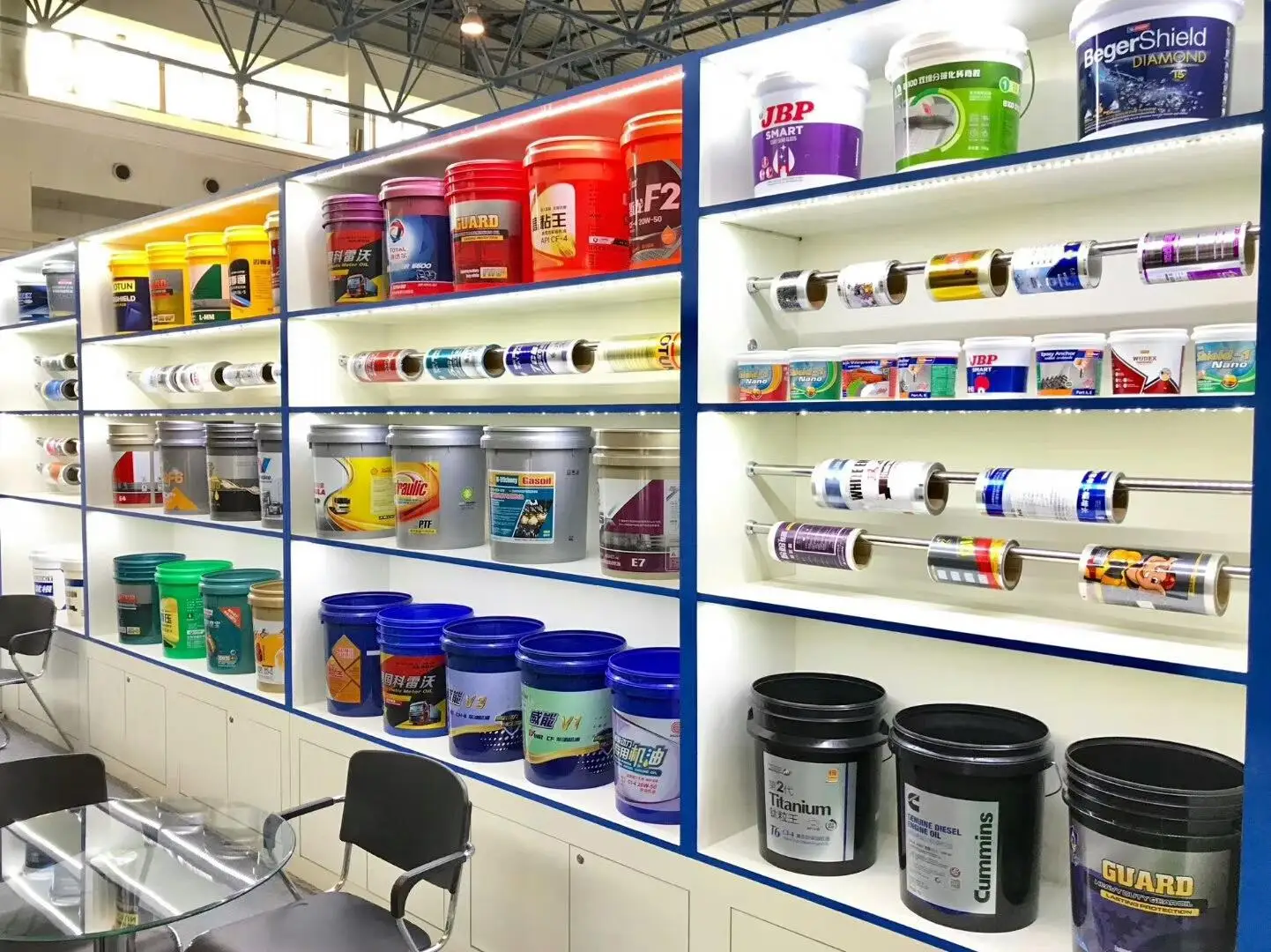

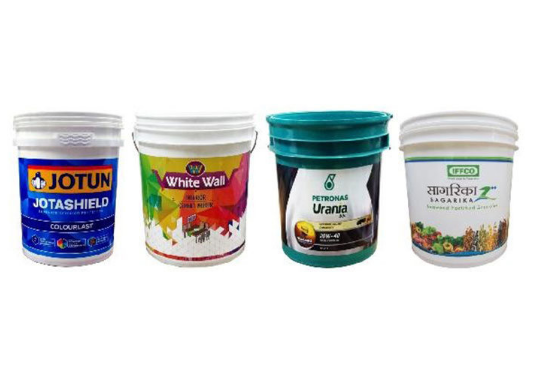

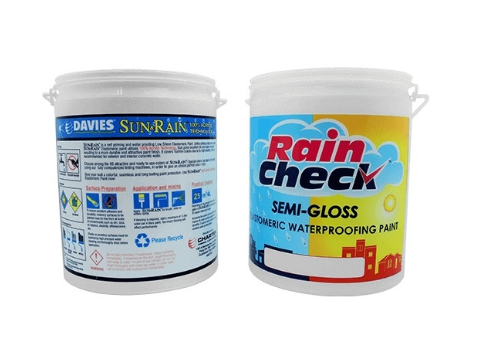

Samples


Price Terms︰ FOB Shenzhen , China

Packing︰ Wooden case

Lead Time︰ 60 Days

Standards Certificate︰ CE

Application area︰ Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, C

Main Parts︰ PLC, Pressure vessel, servo motor, CCD image positioning
