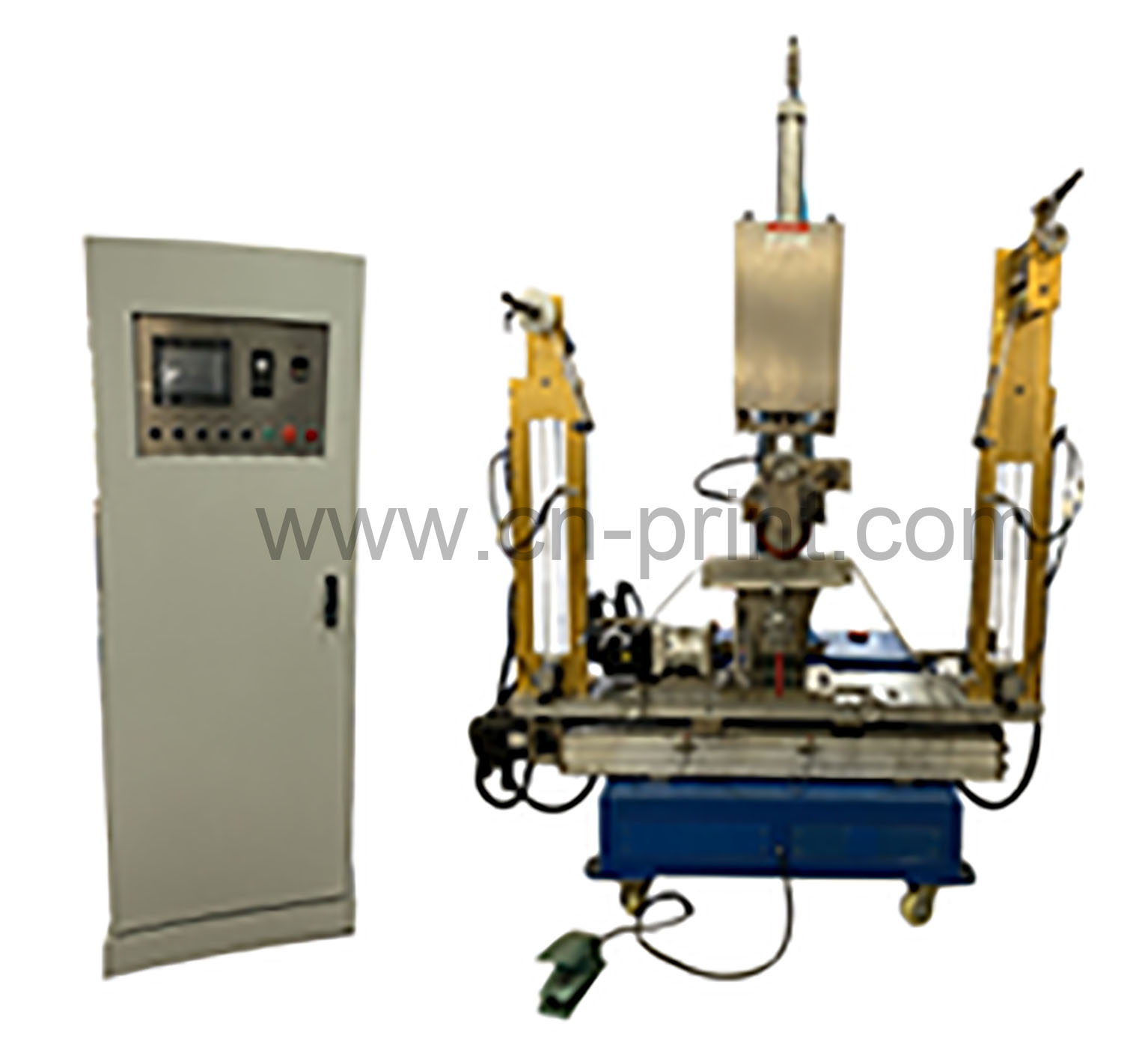

Air conditioning housing PLC servo heat transfer machine TH-400RS for Refrigerator air conditioner drawer shell stamping

Model No.︰TH-400RS
Brand Name︰LC
Country of Origin︰China
Minimum Order︰1 unit
Product
Contect Us

Product Details

Product Description

Product Parameter
Model No.
TH-400RS
Roller size
Ø38*Ø100*150MM
Workbench size
350*800MM
Cylinder stroke
200MM
Maximum opening
400MM
Center distance
280MM
Electric heating power
3000W
Machine Weight
600KG

Product Description
Features:
1. This machine adopts servo motor for rotating mold and flat pusher.
2. With profiling hot stamping head, 220 degree rotation
3. With PLC touch screen, easy to operate
3. With automatic precision constant pressure, the pressure of the ironing head is stable
4. Electric heating automatic temperature control
5. With tension control, the foil retracting speed is adjustable
With 2set big servo motor and one precision gearbox

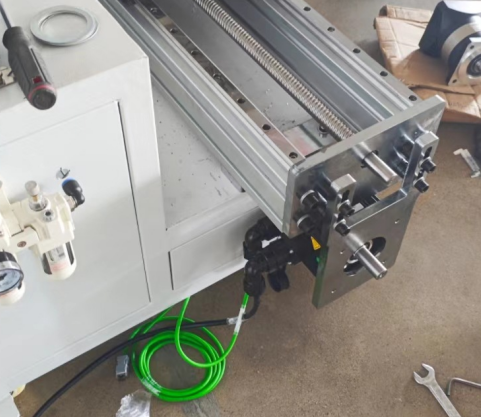

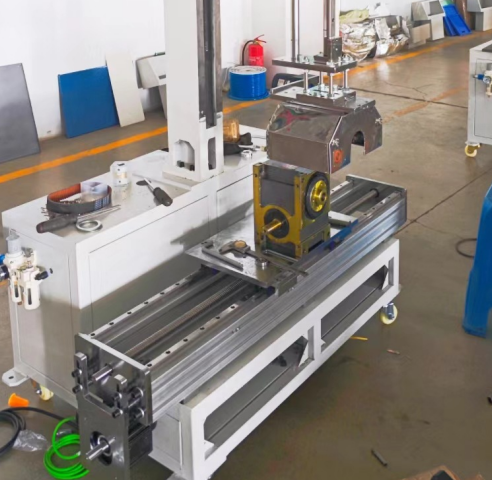

product details

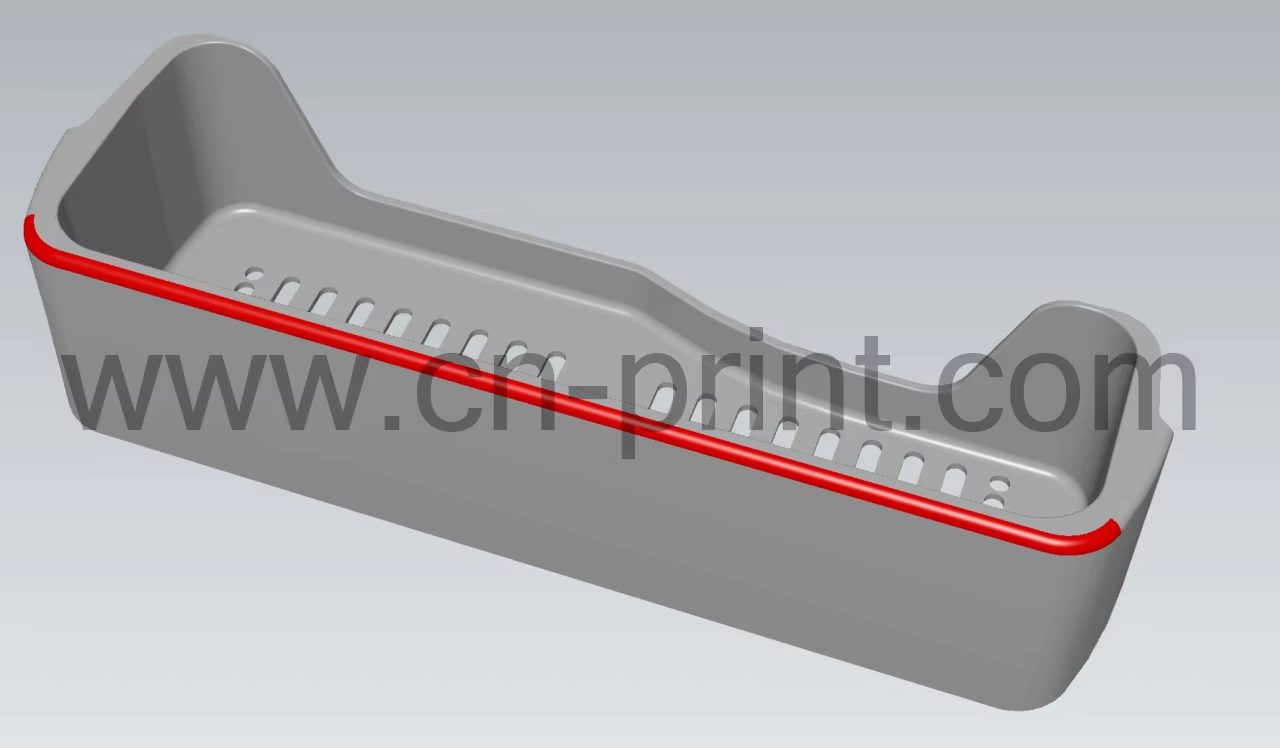

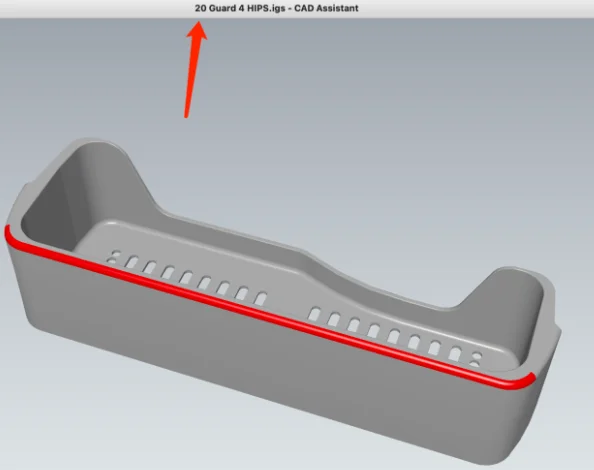

sample display

Price Terms︰ FOB Shenzhen , China

Packing︰ Wooden case

Lead Time︰ 60 Days

Standards Certificate︰ CE

Application area︰ Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, C

Main Parts︰ PLC, Pressure vessel, servo motor, CCD image positioning
