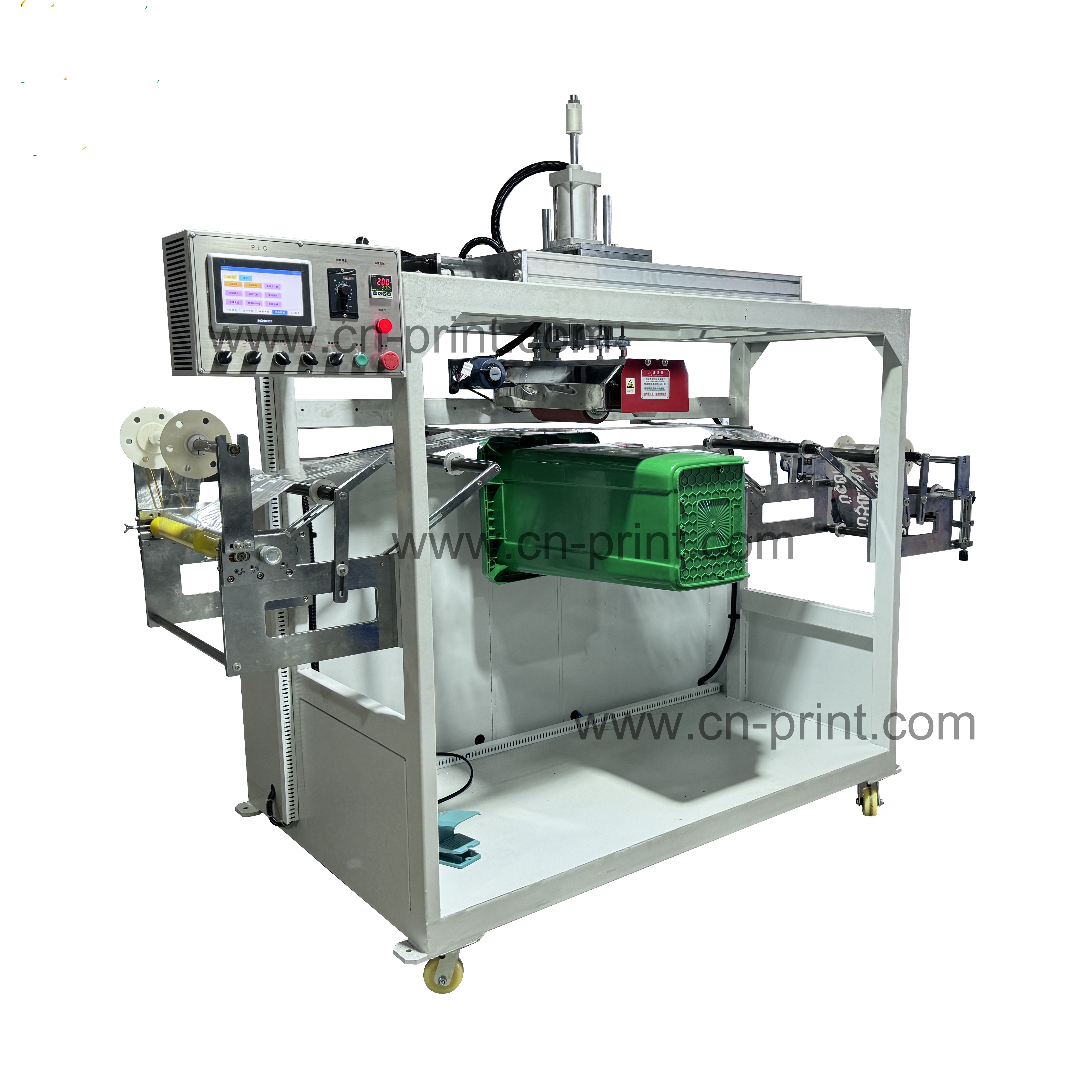

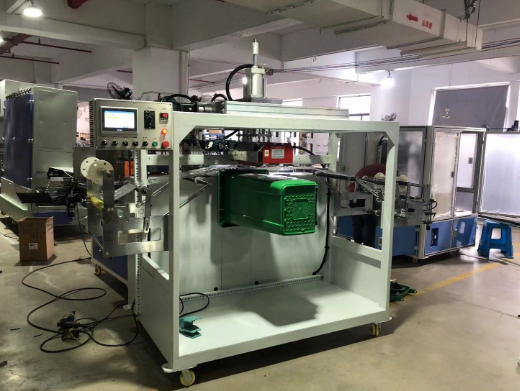

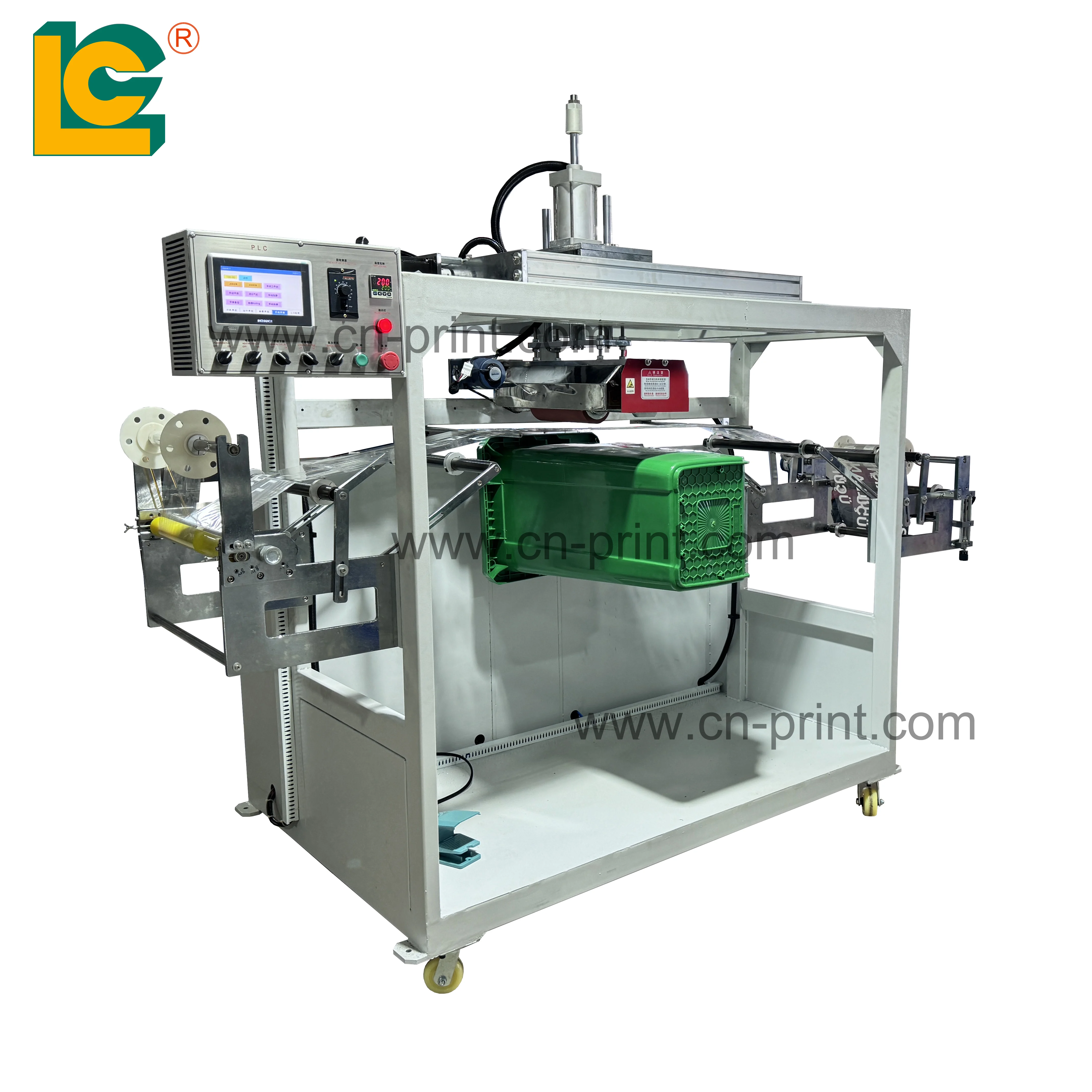

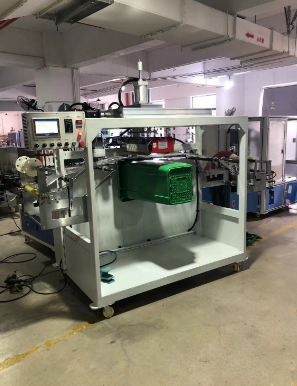

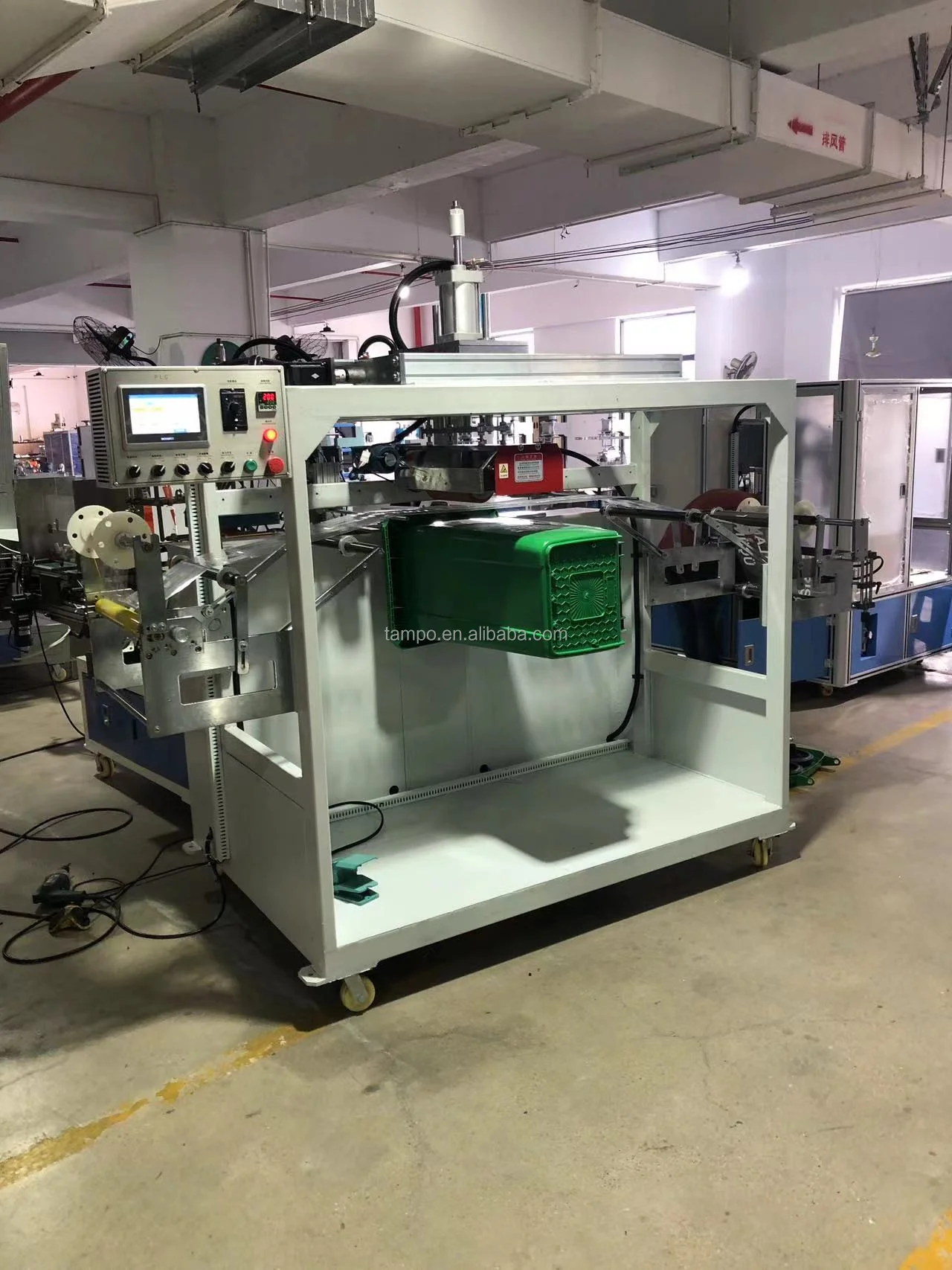

Large Size paint bucket TH500R heat transfer equipment printing machine for plastic heat transfer machine bucket

Model No.︰LC-TH500R
Brand Name︰LC
Minimum Order︰1 UNIT
Product
Contect Us

Product Details

Product Description
Heat transfer machine with beautiful elegant appearance, it is mainly used for Various square trash cans of different sizes,Special for plastic like ABS, PP, PE, PS, AS, PVC, acrylic etc. There are shapes: plane surface

Model Name
LC-TH500R
Printing Speed
60pcs/h
stamping area
500*500 mm
hot head stroke
100 mm
plate stroke
600  mm
center span
600 mm
Hot stamping temperature
0℃～399℃
Hot stamping pressure range
250-350 KG
air pressure
5-7 Bar
Machine size
2000*1800*2100 mm
Machine weight
1200kg






Feature：
1. Gilding press elbow mechanism design, less compressed air consumption, strong steady pressure.
2. Stamping pressure, temperature, hot pressing time is adjustable.
3. Work table can be customized to move back and forth automatically, it is easy tofacilitate safe and fast operation.
4. Automatic document feeder, collection, and adjustable. Taiwan OUTAI motor, and it can be customized for Two-speed motor and high precision positioning
5. Equipped with photocell (Taiwan FOTEK electric eye, 250 times per second high-precision motion), which try to locate the point of thermal transfer paper with precise tracking control.
6. Equipped with emergency stop safety devices to protect the safety of the operator.

Printing Sample



Price Terms︰ FOB Shenzhen , China

Packing︰ Wooden case

Lead Time︰ 60 Days

Standards Certificate︰ CE

Application area︰ Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, C

Main Parts︰ PLC, Pressure vessel, servo motor, CCD image positioning
