Lunch box Large Size Plane and Round TH-700R Heat Transfer Machine For Plastic Products bucket heat transfer machine

Model No.︰TH-700R
Brand Name︰LC
Country of Origin︰China
Minimum Order︰1 unit
Product
Contect Us

Product Details

Product Description

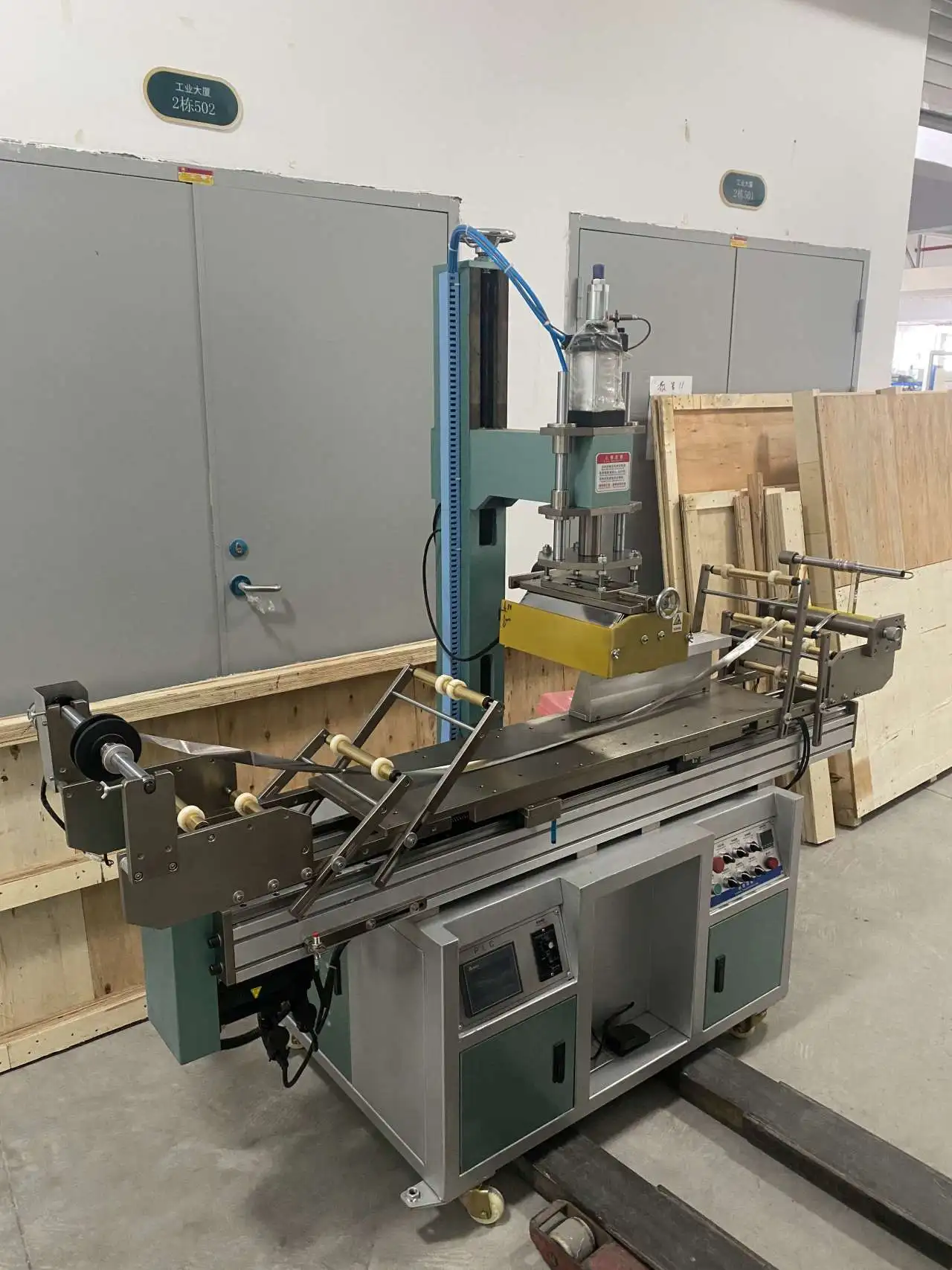

Plane and round surface heat transfer machine

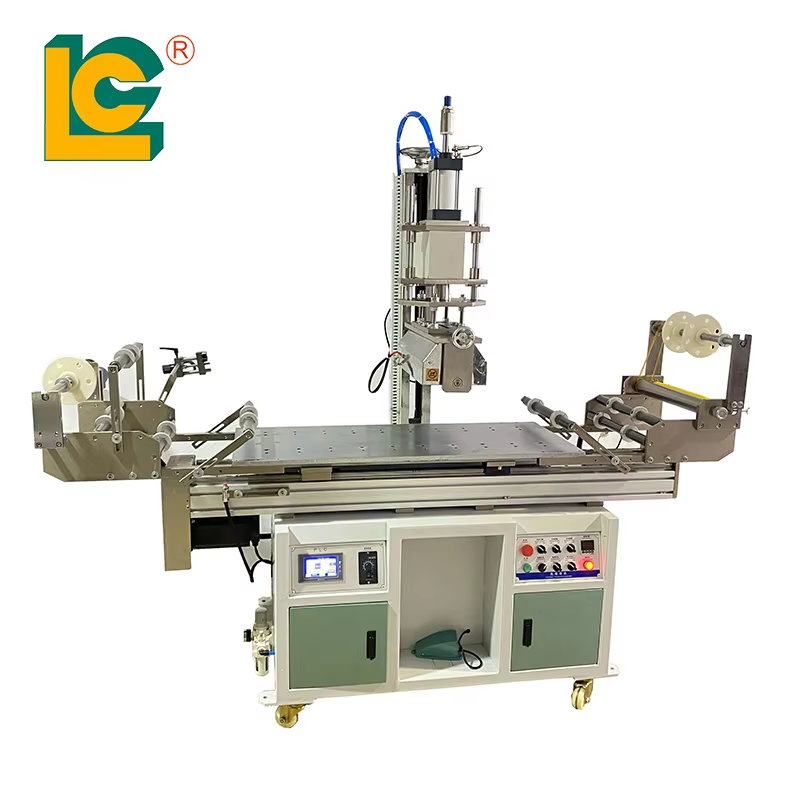

TH-700R heat transfer machine




Special for plastic like ABS, PP, PE, PS, ABS, PVC, acrylic, etc.
There are shapes: plane, circular surface, surface, conical surface.

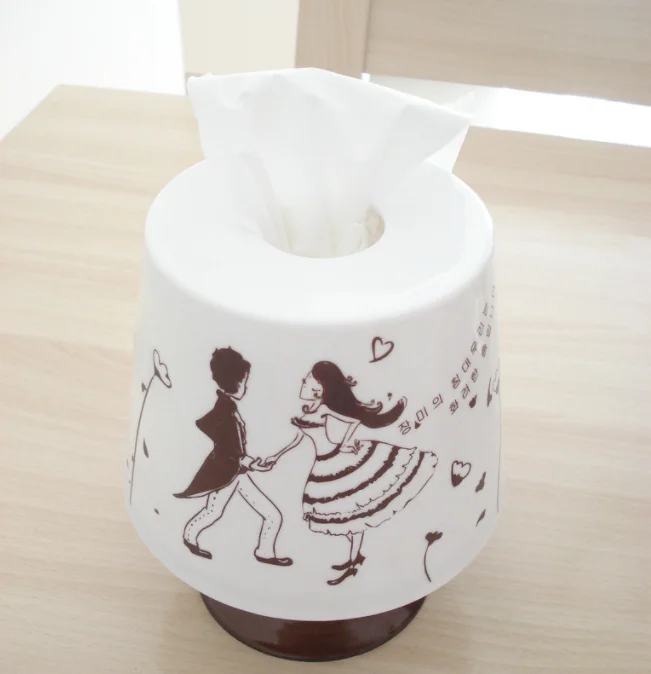

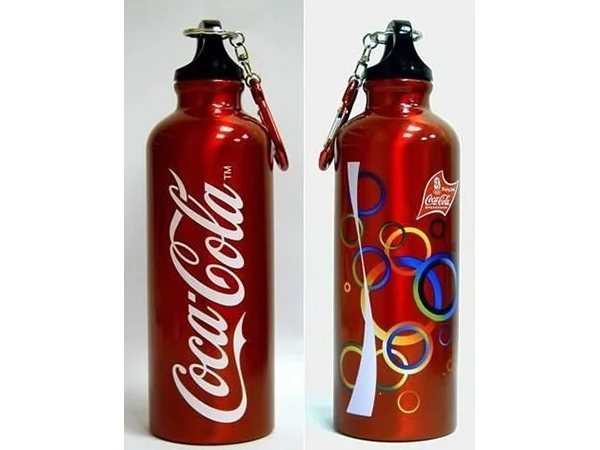

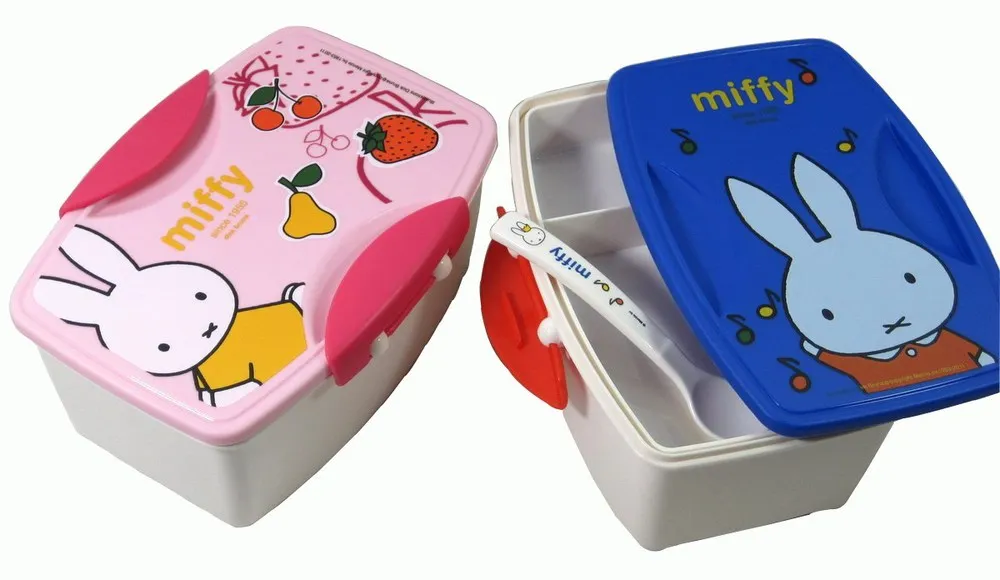

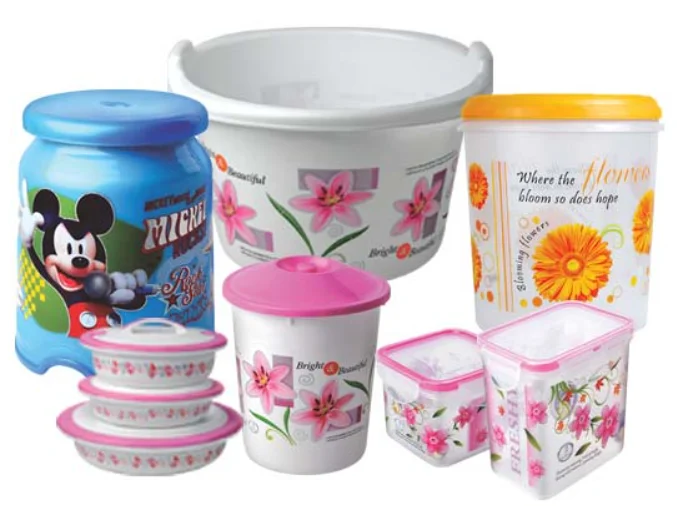

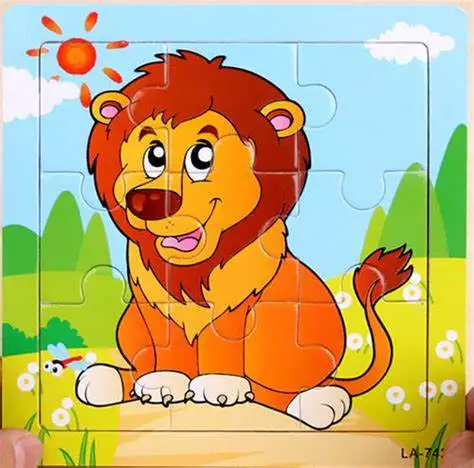

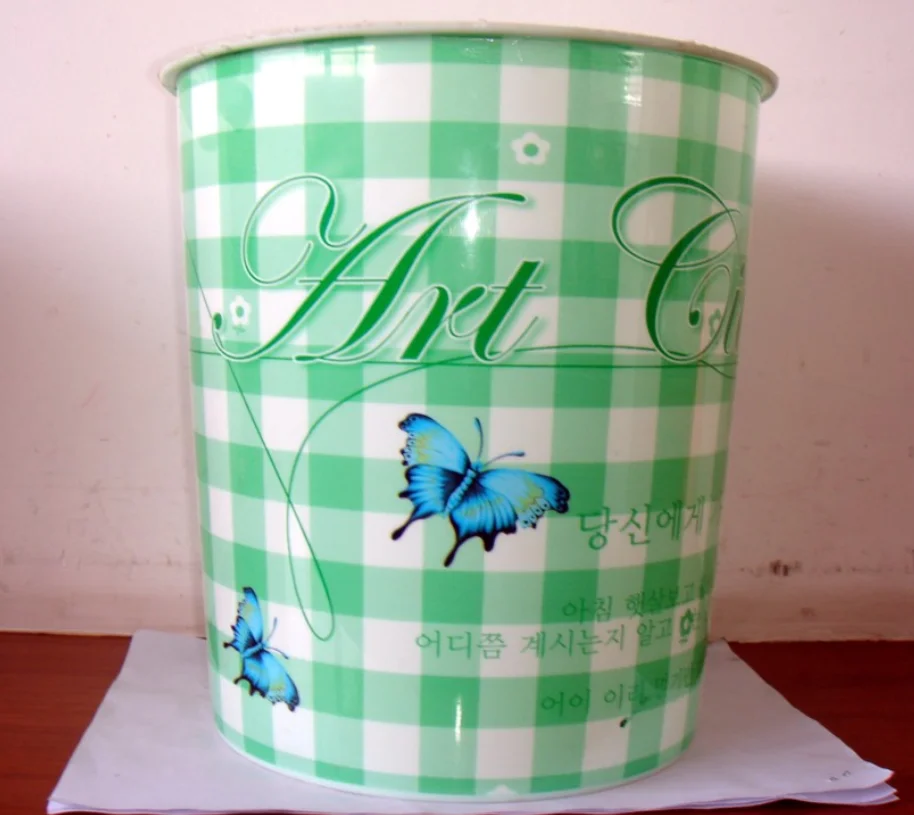

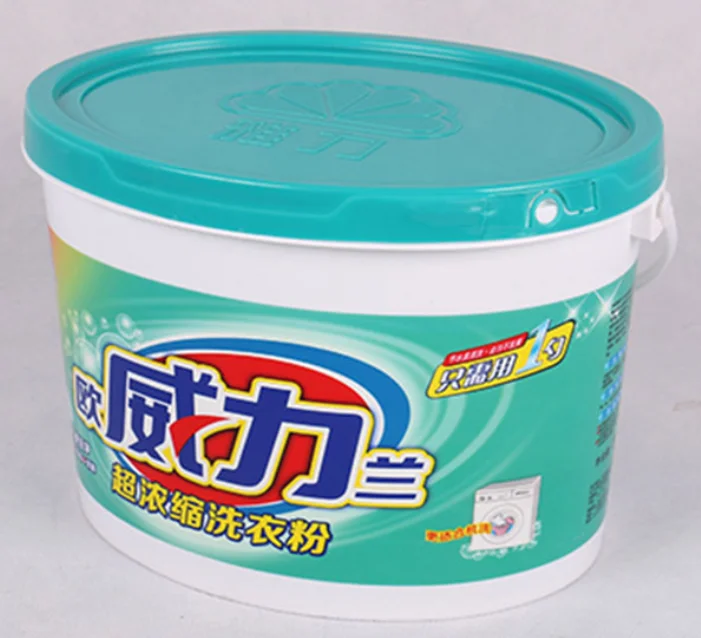

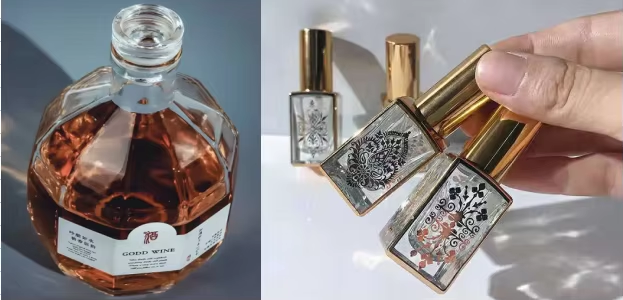

Heat transfer products such as plastic cups, cosmetic bottles, glass bottles, lunch boxes, wooden puzzles, etc.




Heat transfer machine with beautiful elegant appearance, it is mainly used for a premium toy, stationery, wood, premium makeup, and commodity surface of decoration.



Model No.
TH-700R
Heating power
3000W
Air consumption
165L/min
Stamping head adjustable stroke
≤70mm hot head outer diameter 100mm inner diameter of 80mm
Max transfer area
650*380mm
Max stamping diameter
φ300mm
Work Table size
450*700mm
Stamping temperature range of options
from room temperature to 280 degrees Celsius
Workpiece taper Range
5-20 degrees
Swing cylinder stroke adjustment range
≤125mm
Stamping pressure range of options
≤2500kgf (7bar)
Power
220/380V 60/50Hz
The maximum printing speed
350pcs/hr
Transfer roller length
40mm
Weight
360kg
Dimensions
2000*1000*2000mm





Advantages:

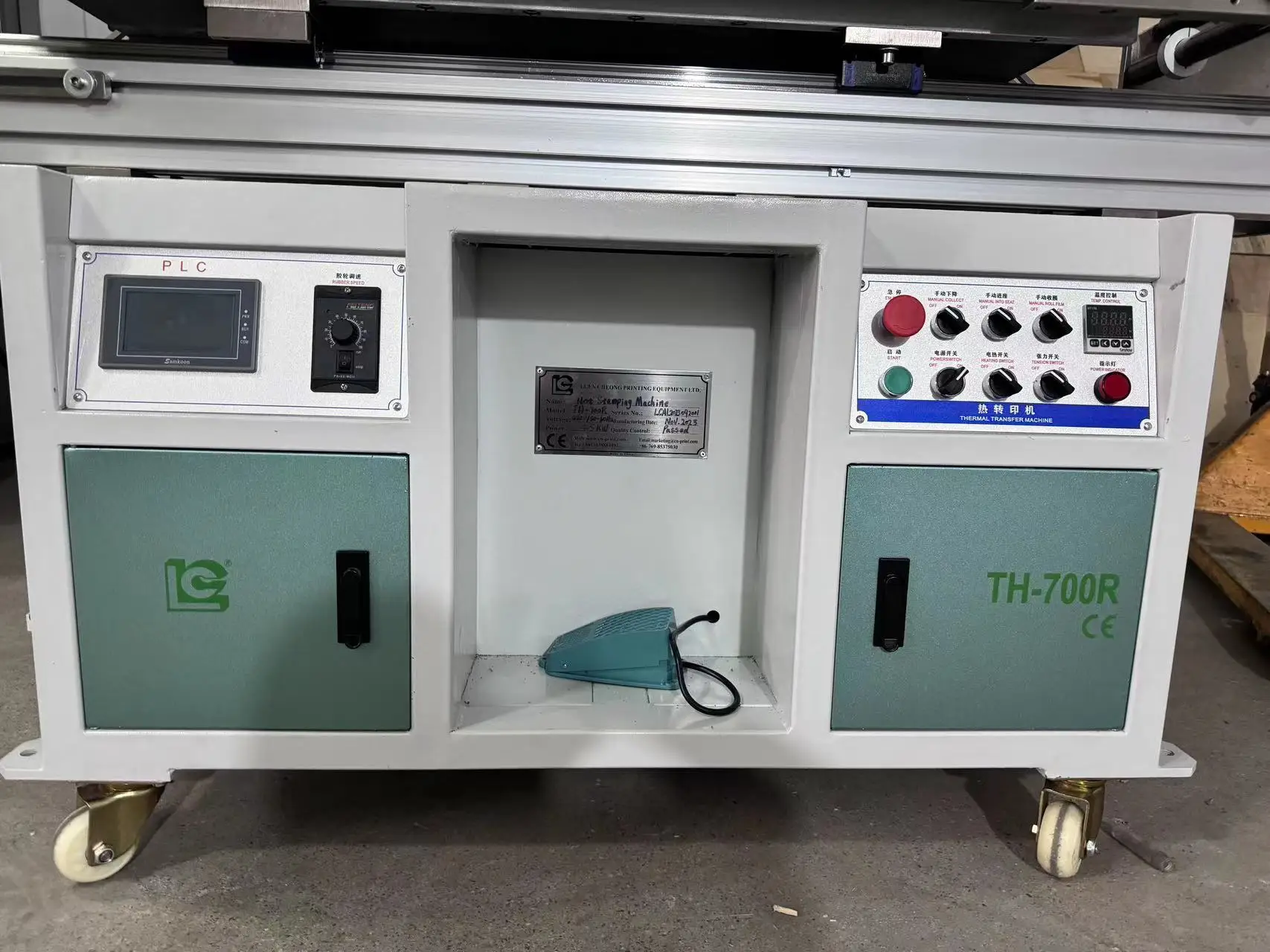

1.The flat and round heat transfer machine worktables are driven by motors. With touch screen, PLC, and dense screws.
2. An electronic controller IC integrated multi-function procedures to ensure that the machine to flat stamping, roll stamping, flat stamping, and round surface, such as a multi-purpose pressure round running.
3. Gilding press elbow mechanism design, less compressed air consumption, strong steady pressure.
4. Stamping pressure, temperature, hot pressing time is adjustable.
5. Worktable can be customized to move back and forth automatically, it is easy to facilitate safe and fast operation.
6. Worktable can swing around the center of rotation of the workpiece for rolling without slipping.
7. Automatic document feeder, collection, and adjustable. Taiwan OUTAI motor, and can be customized for Two-speed motor and high precision positioning.
8. Equipped with emergency stop safety devices to protect the safety of the operator.





Product Details

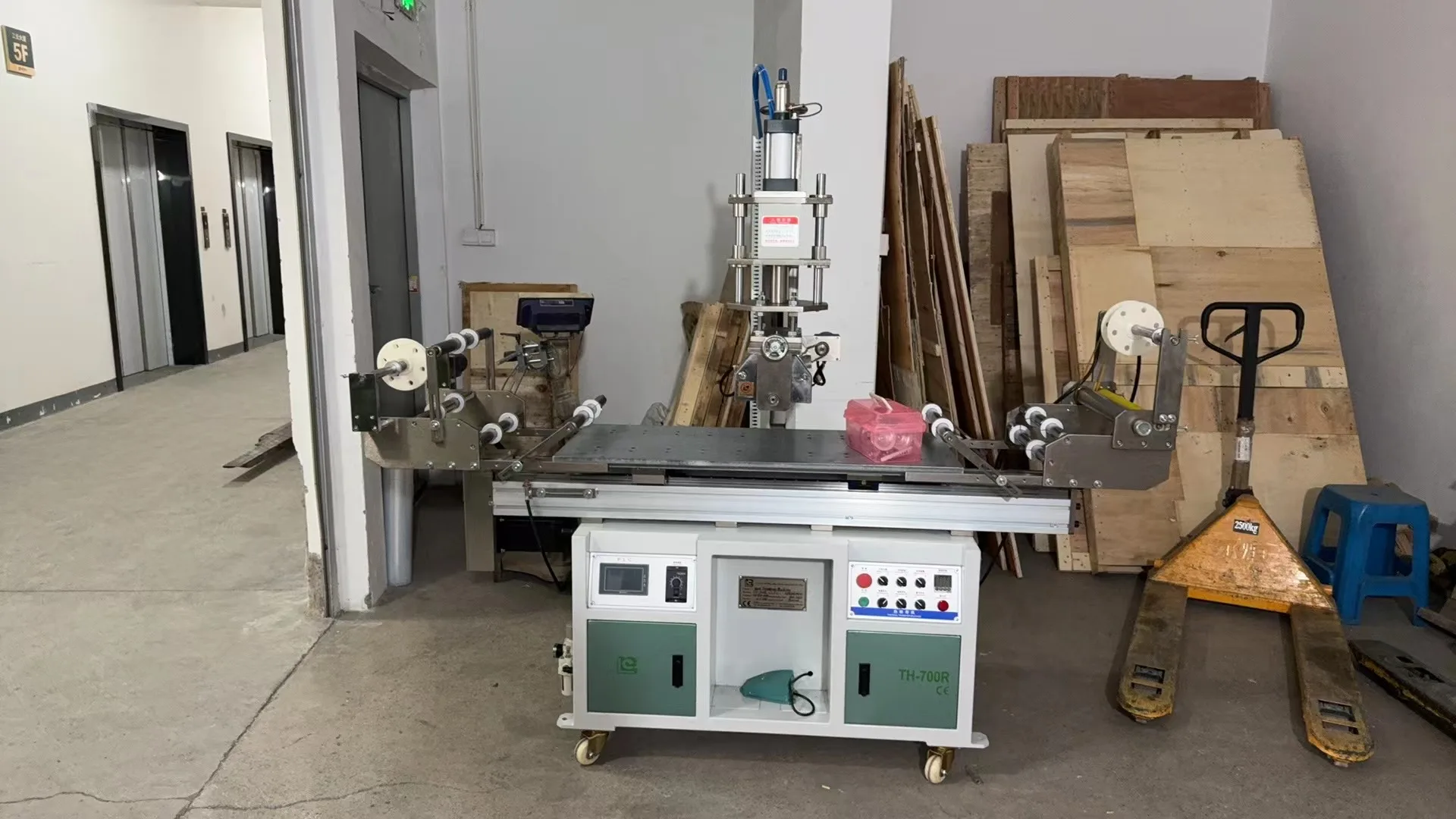

Sample























Price Terms︰ FOB Shenzhen , China

Packing︰ Wooden case

Lead Time︰ 60 Days

Standards Certificate︰ CE

Application area︰ Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, C

Main Parts︰ PLC, Pressure vessel, servo motor, CCD image positioning
