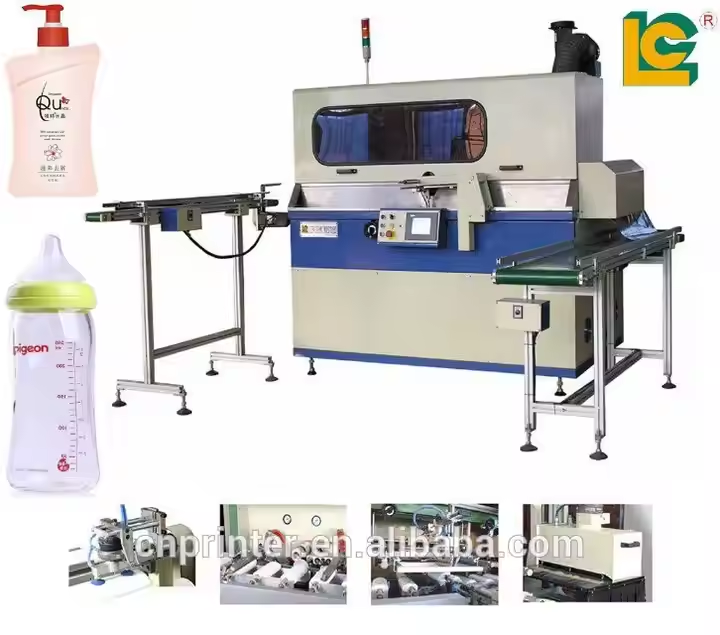

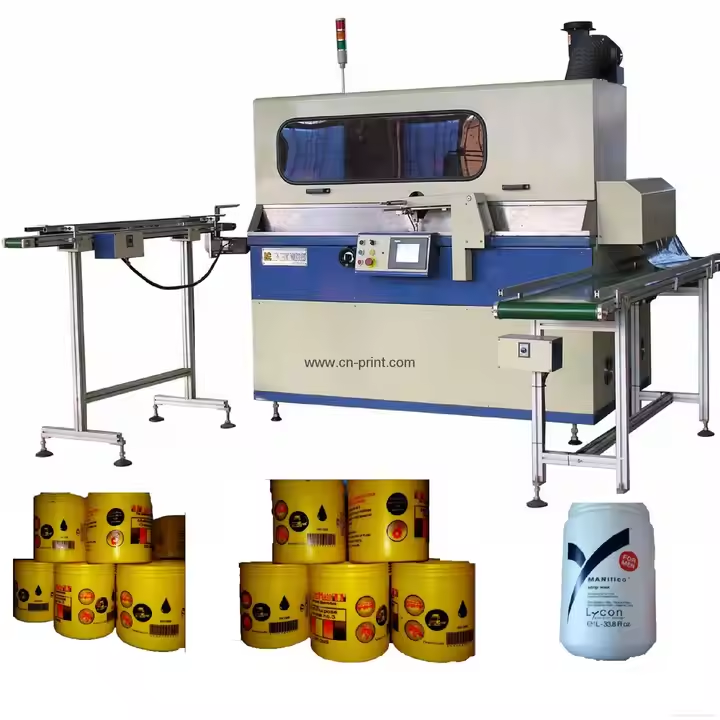

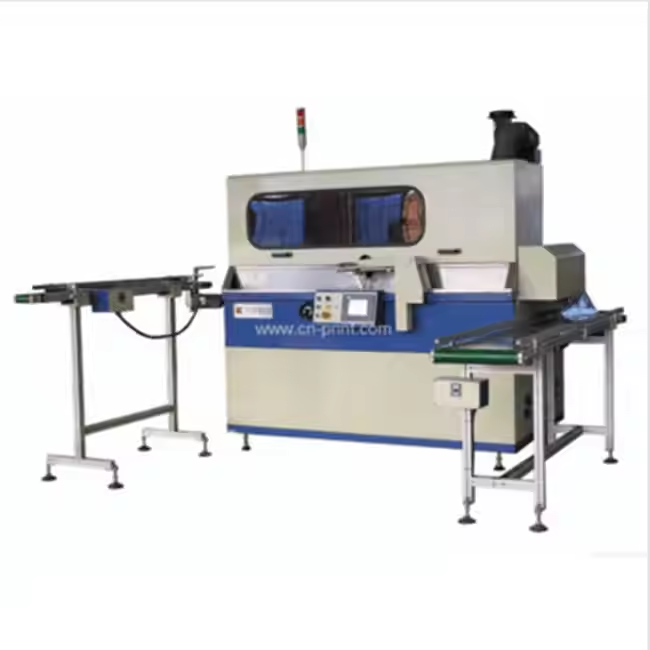

Plastic Bottle Automatic Two Color auto Cylinder Screen Printer Printing Machine

Model No.︰LC-120AL-2
Brand Name︰LC
Country of Origin︰China
Minimum Order︰1 SET

Product

Contect Us

Product Details

Specification

Model no.	LC-120AL-2
6Print color	2 colors
Applicable Product shape	Round, oval, square
Continuous Mode	Yes
Place of Origin	China
Printing speed adjustment	Yes
Maximum printing area	Oval: semimeter:Φ25-Φ260mm; Length :60-270mm Round: diameter:Φ25-100mm;Length :60-270mm
Voltage	380V
air supply	6Bar
Printing speed	3600~4000pcs/hour (subject to the actual pattern)

Product Description

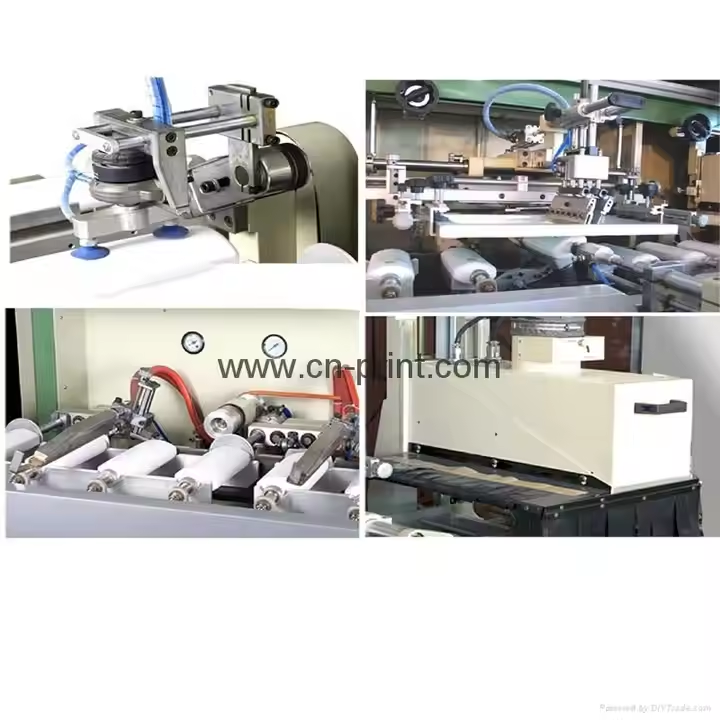

This machine can meet the printing requirements of circular arc surface of cylindrical, elliptical cylindrical and other special-shaped containers, and is compatible with containers of plastic, glass, metal and other materials. This machine realizes the intelligent control of the whole machine through programmable logic controller (PLC) and high-performance touch screen (Touch Screen). A new high-speed transmission system is composed of advanced imported motor, speed change device and mechanical transmission, which realizes control functions such as stepless speed change, synchronous transmission, automatic alignment, and no bottle and no printing.

1.The machine is specialized design for printing platic /glass bottles/cups/tubes, with easy operation and stable.
2. Feeding machine can load product to the screen printing machine automatically..fully automatic feeding, flame treatment, UV
screen printing and UV curing.
3. It is a mechanical conveyer ,With touching control panel operation , easy to operate the machine. Fast adjustment, easy
operation. Fast printing,speed:4000pc/hr.
4. Fully automatic,It will alarm when the machine without product loading and no printing without product. it can save energy.
5. All components and control system are from Germany and Japan, guarantee the quality of the print.
6. It is suitable for print round/oval product printing such as the cosmetic bottles, drink bottles, cans ect
