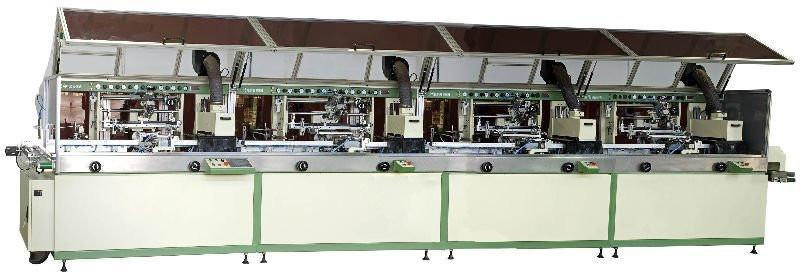

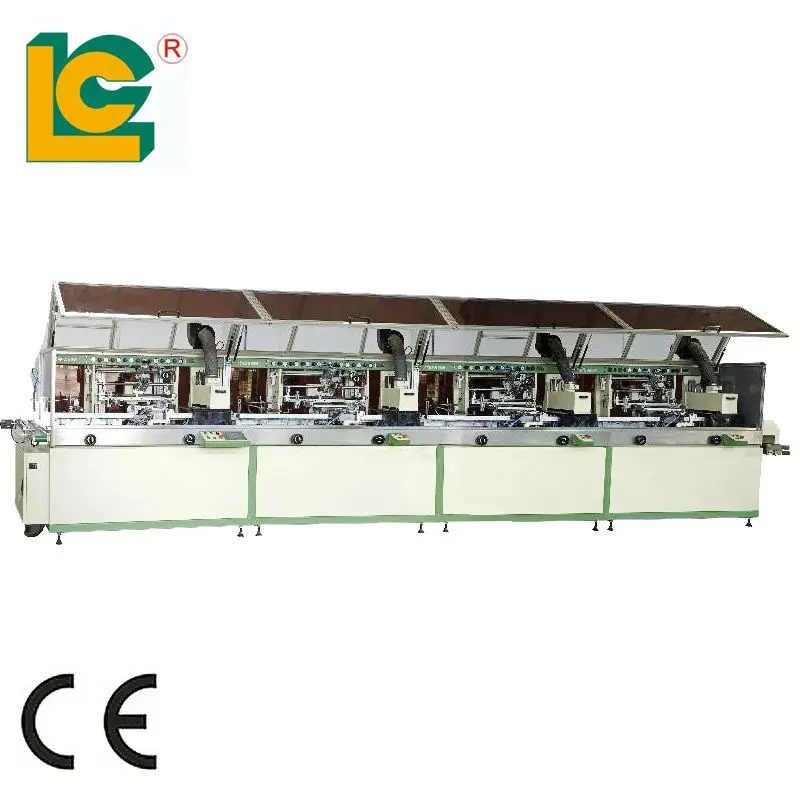

Plastic bottle Automatic 4-colour LCB-120UV-4 cylinder UV Silk Screen Printer for Plastic bottle

Model No.︰LCB-120UV-4
Brand Name︰LC
Country of Origin︰China
Minimum Order︰1 unit

Product

Contect Us

Product Details

Products Description

Automatic 4-colour cylinder UV Silk Screen Printer

LCB-120UV-4This auto printing press system is specially used for printing different patterns on the objects with round shape or oval shape. As it is made up of several individual units to form a printing chain, it can be used for the purpose of one-color printing. The materials to be printed can be plastic, glass, ceramics, metal, etc

Product Paramenters

Model No	LCB-120UV-4	max printing radius	oblate bottle :260 mm
Printing colors	4 color	oblate bottle width	20-100 mm
Product appearance	Round bottle / oblate bottle	oblate bottle thickness	20-80 mm
Operation	Full Auto	Max Printing speed	4000-5000Pcs/Hr
min printing diameter	round bottle: 20 mm	Power	380V
max printing diameter	round bottle :100 mm	Weight	1050（kg）
min printing radius	oblate bottle :25 mm	Dimensions	L:1900×W:1000×H:1500（mm）

Core Selling Point

MAIN MOTOR	SITI(Italy)	(CONTACTOR)	(Schneider)(France)
PLC	Omron(Japan)	(RELAY)	(Idec)(Japan)
SENSOR	Optex(Japan)	(INVERTER)	Omron(Japan)
TOUCH SCREEN	Proface(Japan)	(UV CURING)	(Primarc brand uv lamp ) Britain
Switch	Schneider(France)	(PNEUMATIC)	Festo(Germany)

Advantages

1.Full automatically printing suitable to print on various shades of cylindrical, elliptical and falt workpieces;
2.Coupled with auto workpiece feeding and loading system;
3.Flame treatment device adopted for re-treatment on PE or PP workpieces to get ultimate ink adhesion;
4.The function of workpiece placing in advance is built-in aiming on cylindrical or elliptical printing;
5.Electric sensor creates "no workpiece no printing" that leads to intelllgent monitor and smart control;
6.High quality UV curing system adopted to ensure fast ink drying and color registration;
7.High printing speed that up to 4000pcs/hr will bring you with high productivity;
8.Conveniently and easily fixture adjustment and change that save your valuable time;
9.Multi-sets of this machine can achieve 2-color, 3-color and even 4-color auto printing system..
