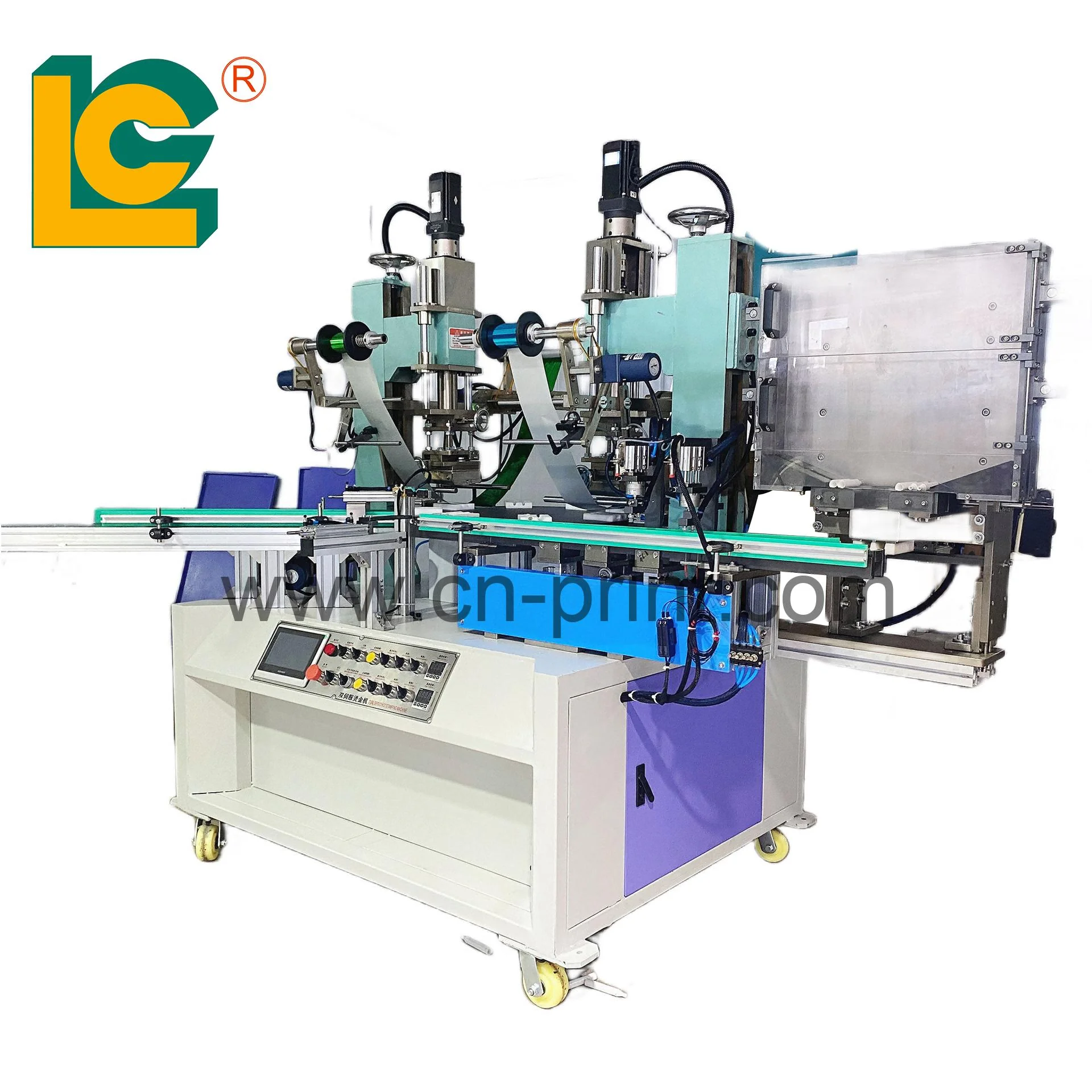

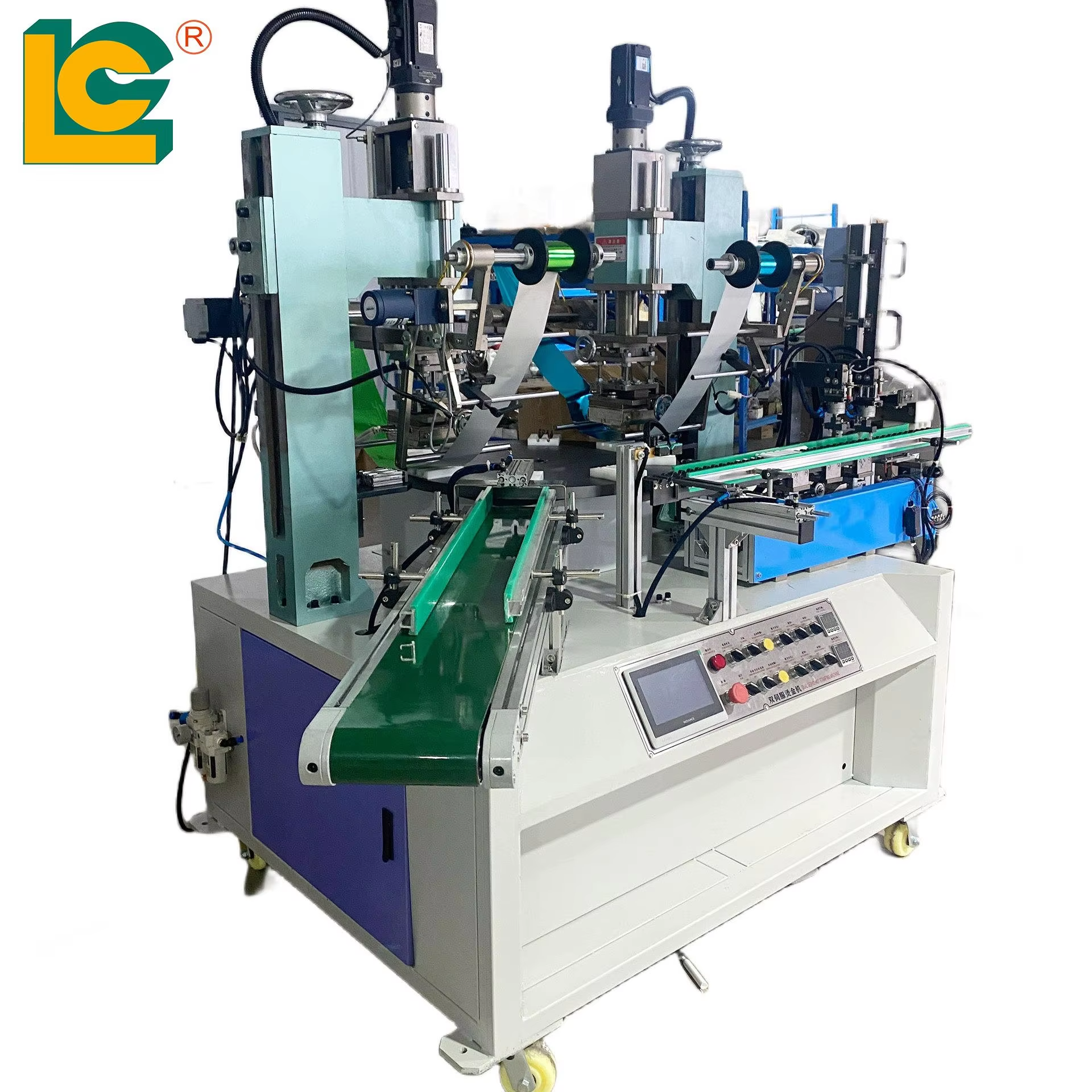

Factory Direct two-color turntable 8-station mark pen lighter Make Up Pencil Automatic hot stamping machine

Model No.︰TH-2H/8
Brand Name︰LC
Country of Origin︰China
Minimum Order︰1 Unit
Product
Contect Us

Product Details

product information
Automatic double station servo rotary plate stamping machine


Two-color turntable 8-station Double-head double-color automatic color setting hot stamping machine.Suitable for lighters, markers, and other plastic parts

Adopt imported PLC control system, automatic feeding, automatic material sorting, automatic hot stamping,automatic unloading; photoelectric automatic tracking monitoring, automatic shutdown when fault occurs; it has the advantages of digital control, easy operation and stable performance.



Mechanical model
TH-2H/8
Turntable size
600MM
Ironing plate area
150×200mm
Hot stamping temperature
room temperature 0℃~400℃
Rated voltage
220V,60/50HZ
Gas pressure
0.5-0.7Mpa
Heating power
2000W
Machine power
3500W
Air pressure
5-7bar
Machine size
1500*900*1460 mm
Machine weight
500 kg

Function
1. With the crank design,which has powerful stamping pressure and little consumption of air pressure.
2. Worktable is adjustable in front-back,left-right direction and revolvable,which ensures the quick and safe operation.
3. Stamping pressure,temperature and time are adjustable.
4. Automatic foil feeding and rolling with adjustable function.
5. Height of the stamping head is adjustable.

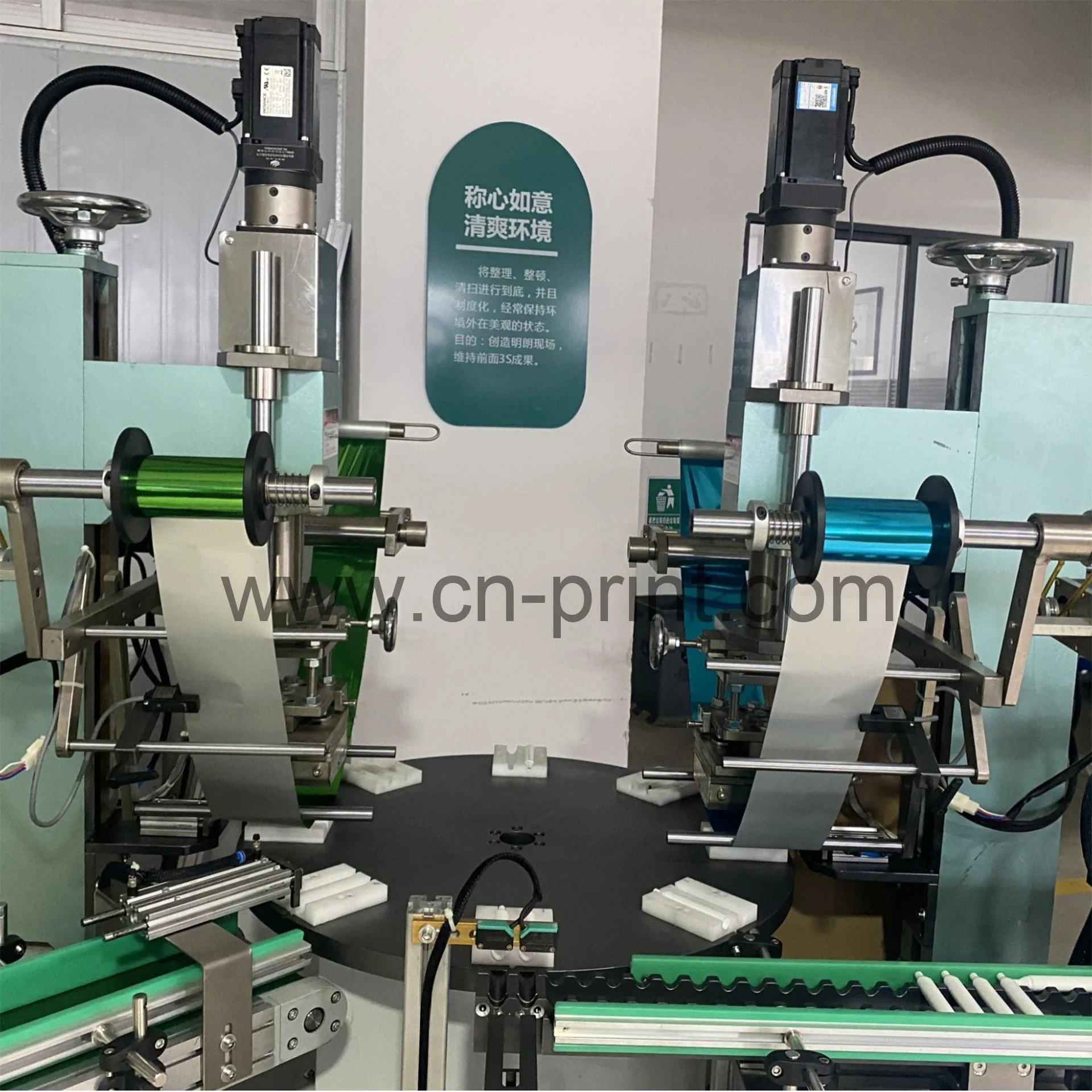

Machine Details

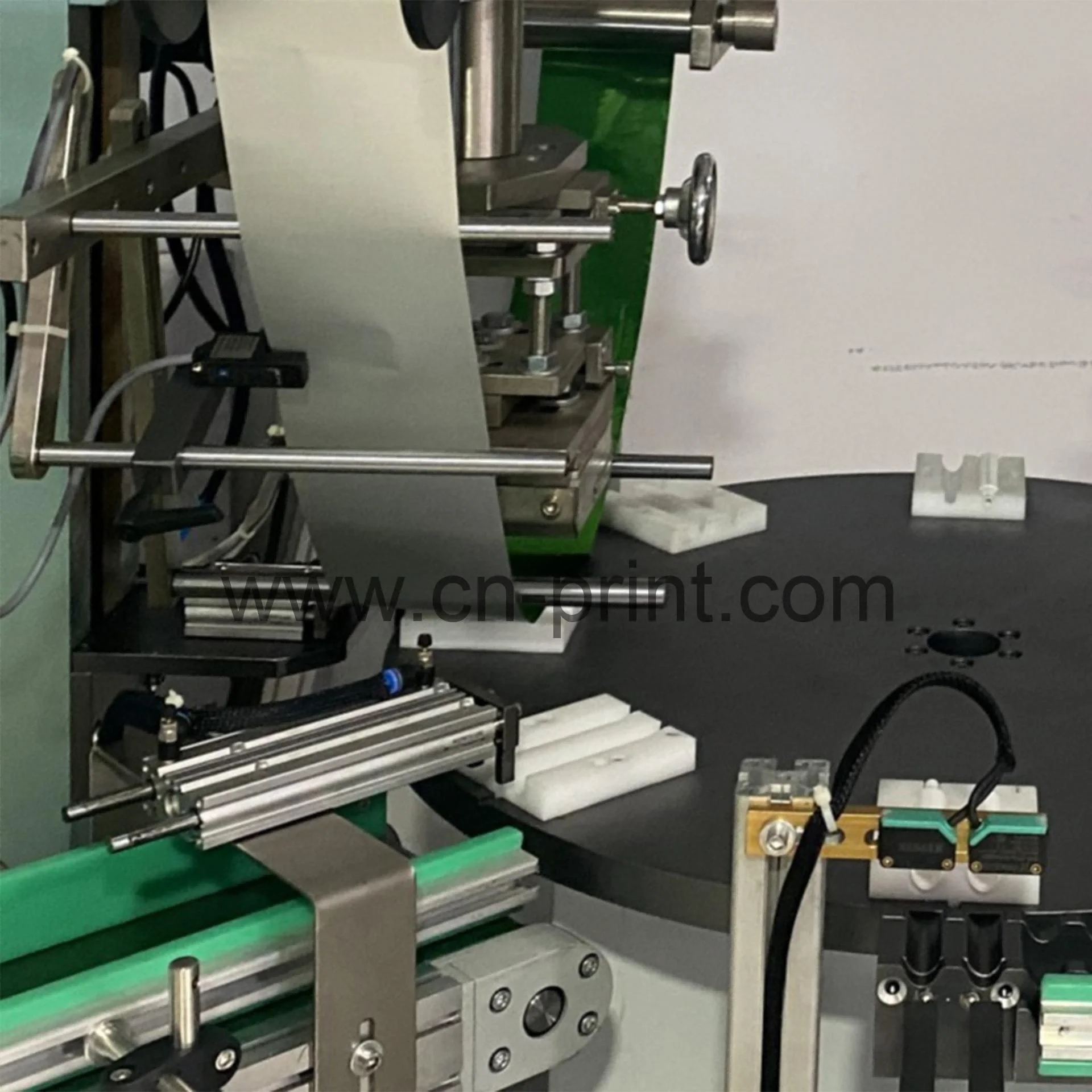

Rotary table
Auto unloading system
Related Products




Stamping foil

The hot stamping process is based on the principle of hot pressing transfer, so that the surface of the substrate is formed.




Stamping fixture

The bronzing fixture is used to fix the load so that it does not shake randomly



Silicon rubber plate
Hot stamping silicone board transfersthe delicate pattern to the product by using the silicone board as a heat carrier

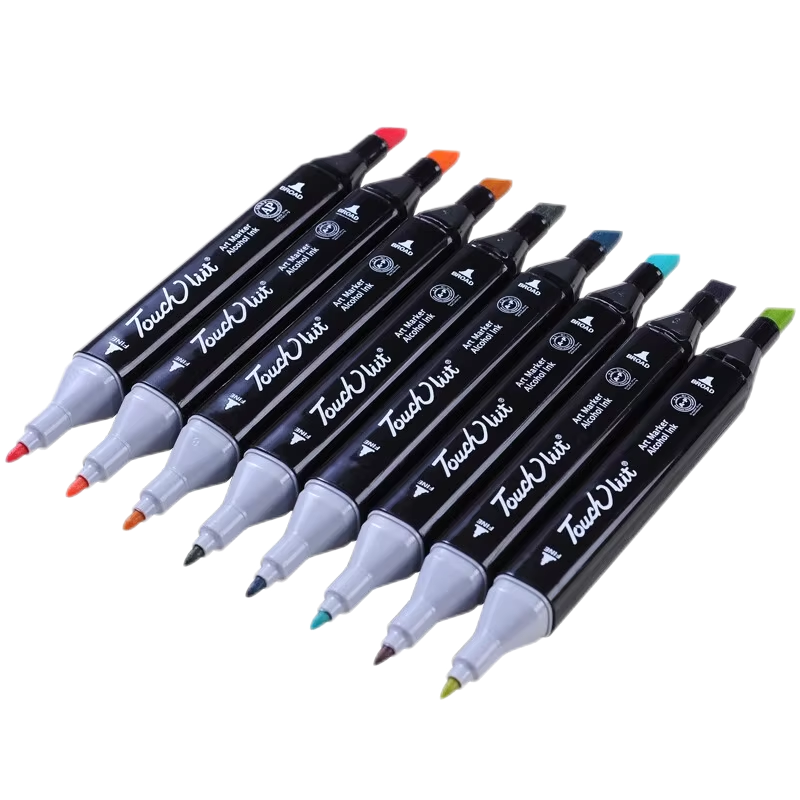

Printing Sample
