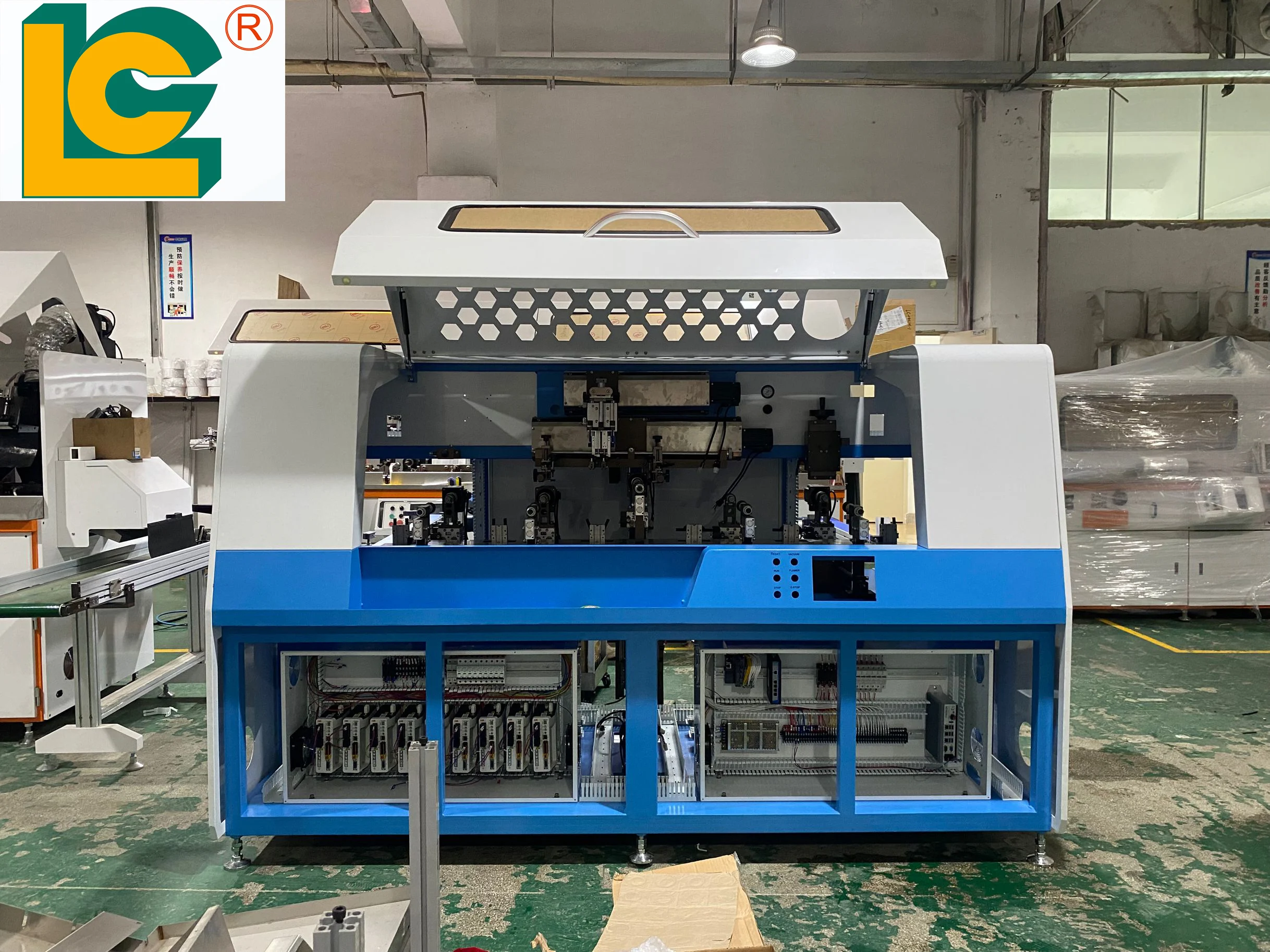

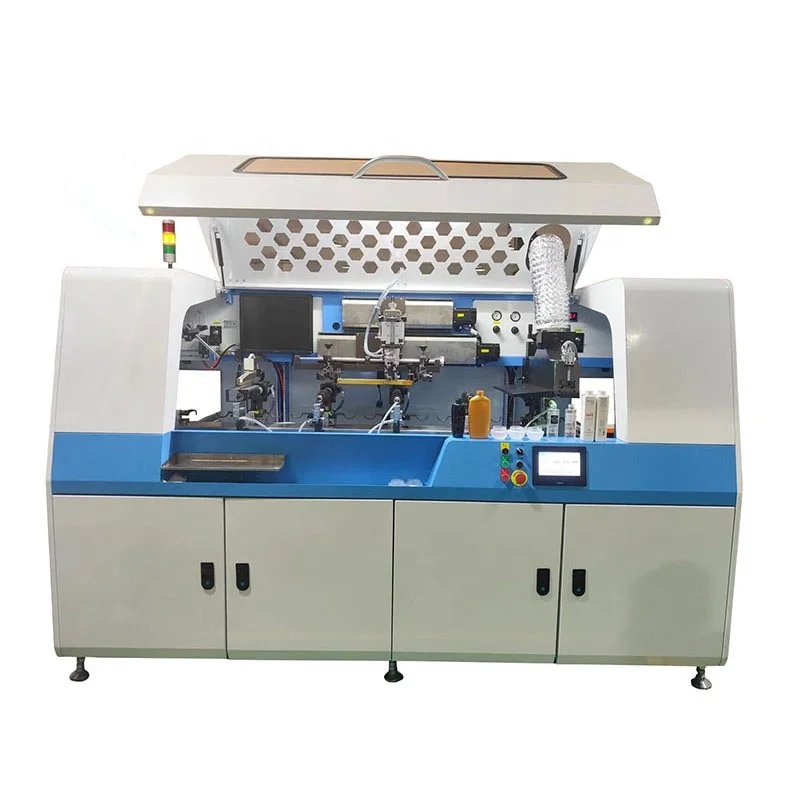

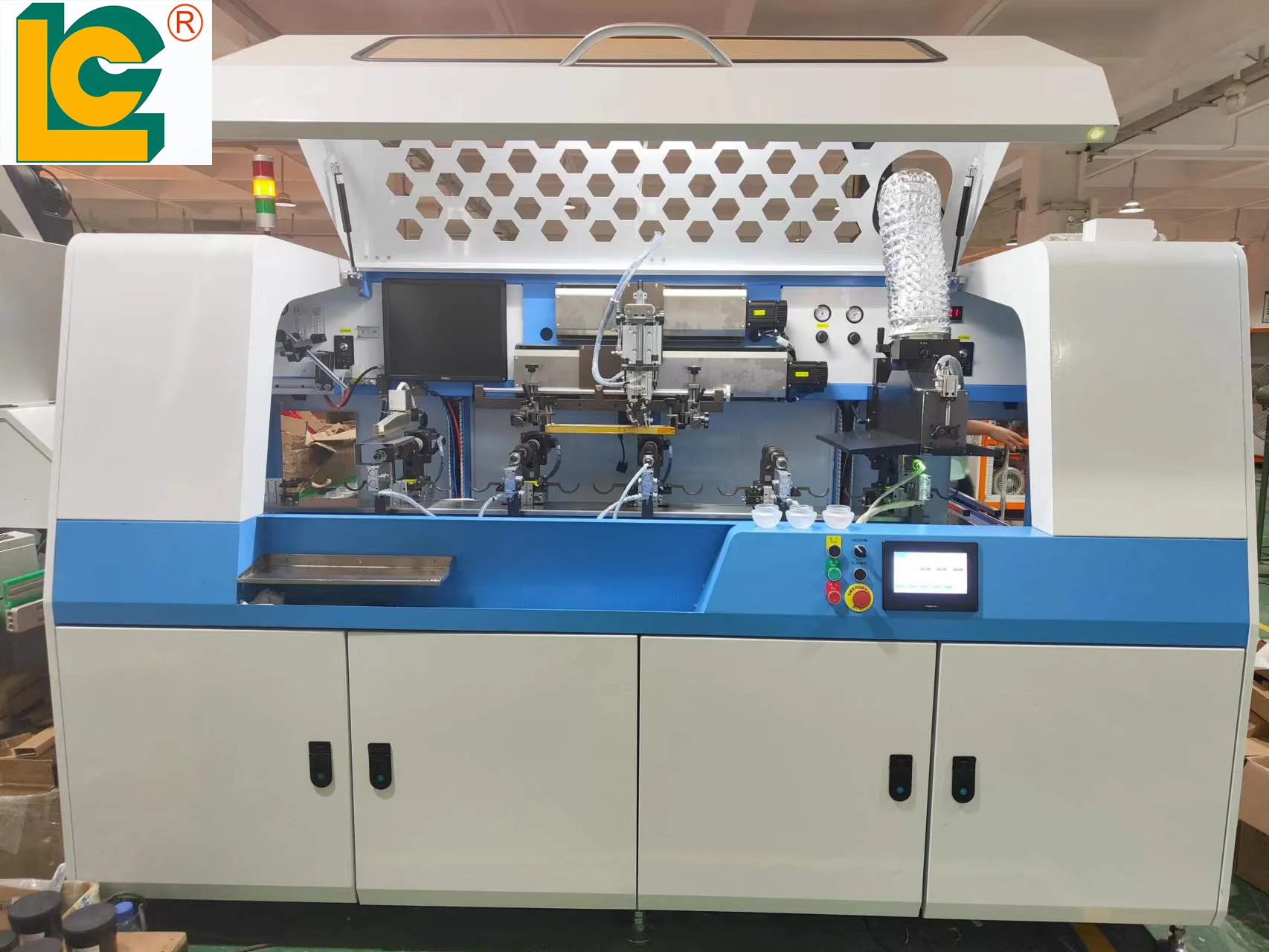

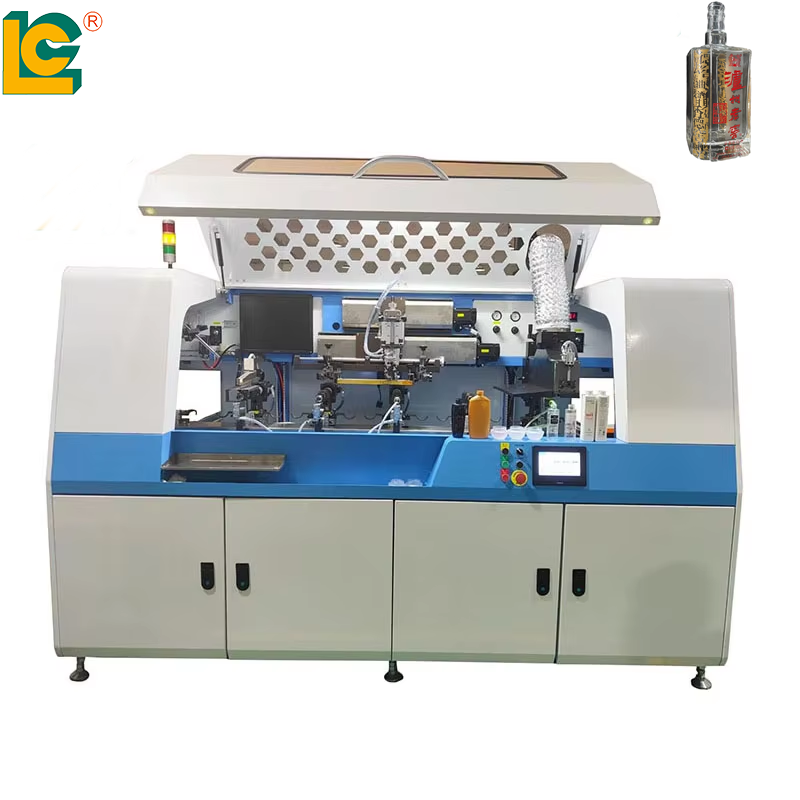

LC Automatic Monochrome Screen Printing Machine with UV Curing & Flame Treatment for Glass/Cosmetic Bottles

Model: LC-CNC105
Brand: LC
Origin: China
Minimum Order Quantity (MOQ): 1 unit

Product

Contect Us

Product Details

Specification

Model no.	LC-CNC105
Print color	1 color

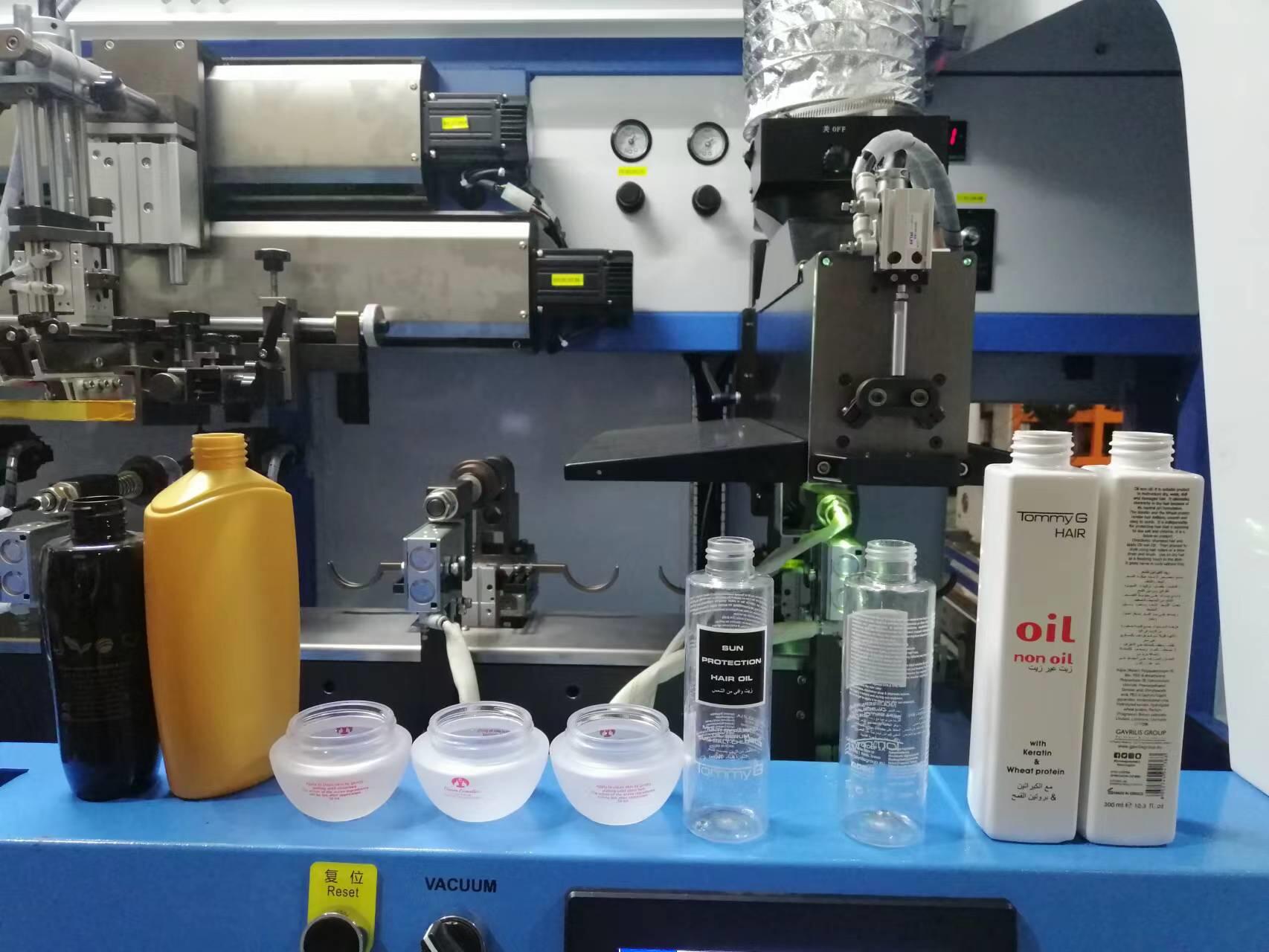

Applicable Product shape	Round, oval, square
Maximum printing area	diameter 100mm, length 300mm
Voltage	380V AC 50HZ
Main motor drive	Servo motor
Total power	25KW
Printing speed	2700-3600pcs/hour (subject to the actual pattern)

Product Description

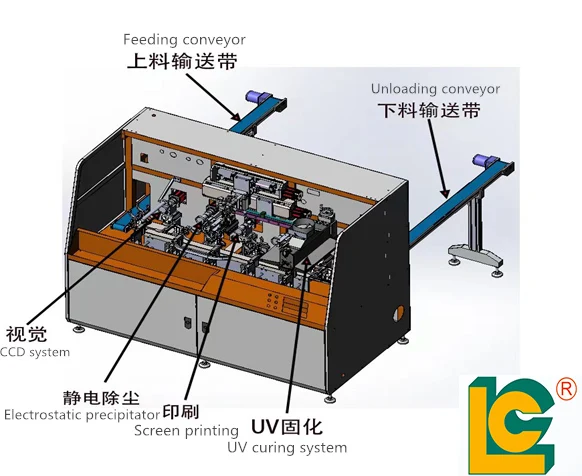

1.Auto loading and unloading with multi axis servo robot.
2.Dust clean

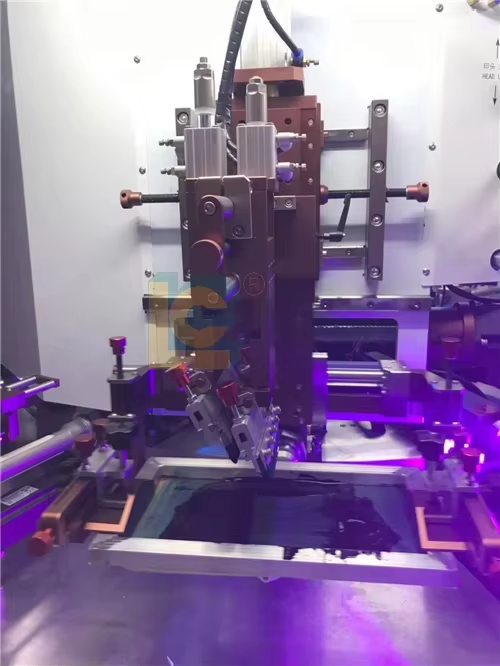

3.Auto flame treatment before printing and UV LED curing after printing .
UV LED lamps and high-efficiency engines assure reduced energy consumption, Zero ozone emission and reduced CO2 production.

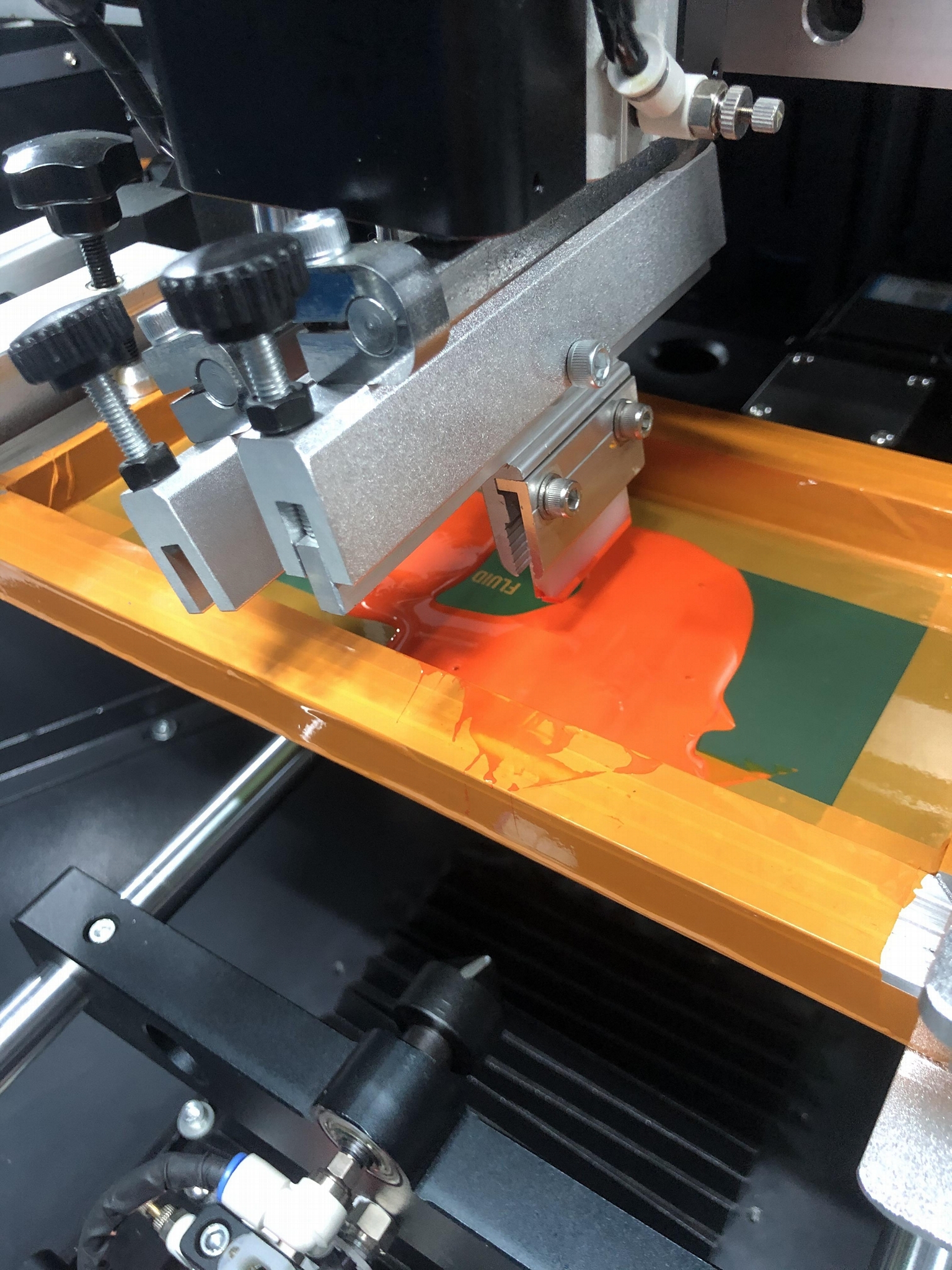

4.Auto printing system with all servo driven:printing heat ,mesh screen frame ,rotation etc.
all jigs installed with servo motors for rotation (no need gears, easy and fast products changeover)
5. Quick and easy change over from one product to another. All parameters automatic setting simply in touch screen. it only takes 20 minutes to debug each color.
6.All ethercat servo motors with industrial PLC control&touch screen operation system,internet cable connection available,easy for fucture maintenance and ungrading.

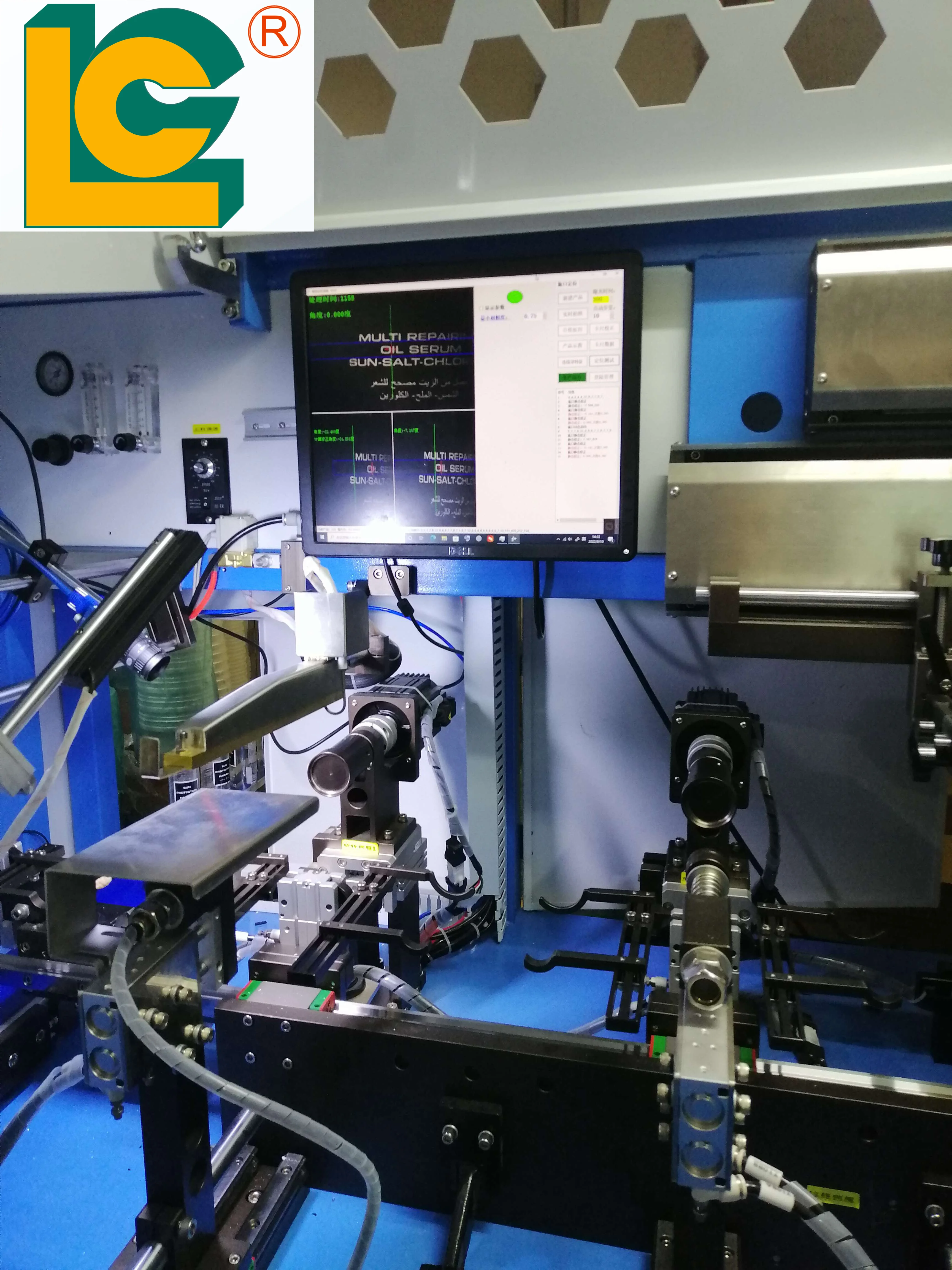

7.Adopt linear high-speed precision CCD scanning : for cylindrical products without registration point, repeat print to be double colors.
8. Well built machine house with CE standard safety design.
9.Can use UV ink or thermoplastic ink.
