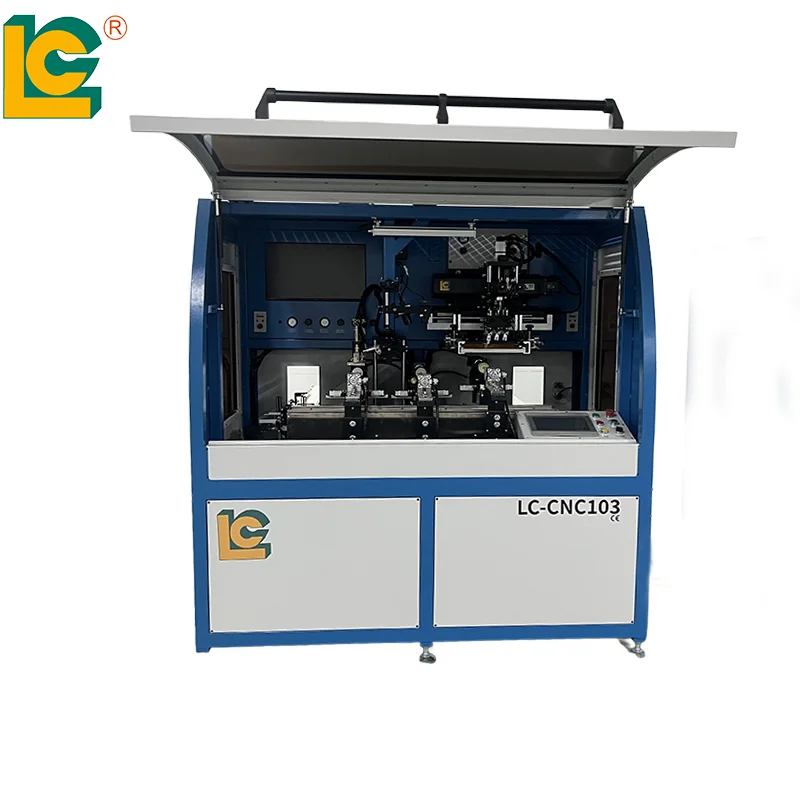

LC Industrial Single-Color Screen Printer Full Automatic

Model: LC-CNC103
Brand Name: LC
Place of Origin: China
Minimum Order Quantity (MOQ): 1 Unit
Product
Contect Us

Product Details

Product Description



Full automatic screen printing machine for glass bottle
1.This machine is suitable for screen printing of round, oval, square, special-shaped bottles (radians on both sides are
different) and double-sided two colors and other special-shaped containers
2.It has the advantages of convenient debugging and installation, stable and reliable operation, strong versatility and high
printing efficiency.
3.This machine can be equipped with screen heating, ink scraper heating function and UV light fixing furnace at any time, can use ordinary self-drying ink printing, UV ink printing, high temperature solid ink printing brush, with high adaptability.

Outstanding advantages for the following bottle shapes and situations:

* The elliptical bottle can be printed on both sides of the same color at the same time, greatly improving the printing speed, and can also be printed on one side.
* The square plane bottle can realize one side to four sides of the same color one-time printing, can also choose one side to four sides of any printing surface.
* The triangular bottle can be printed one time from one side to three sides of the same color, or choose one side of any
printing surface from one side to three sides. 4. Bottles with hexagons, octagons and other polygons can be printed in one time with the same color from one side to eight sides, or one side of any printing surface from one side to eight sides.

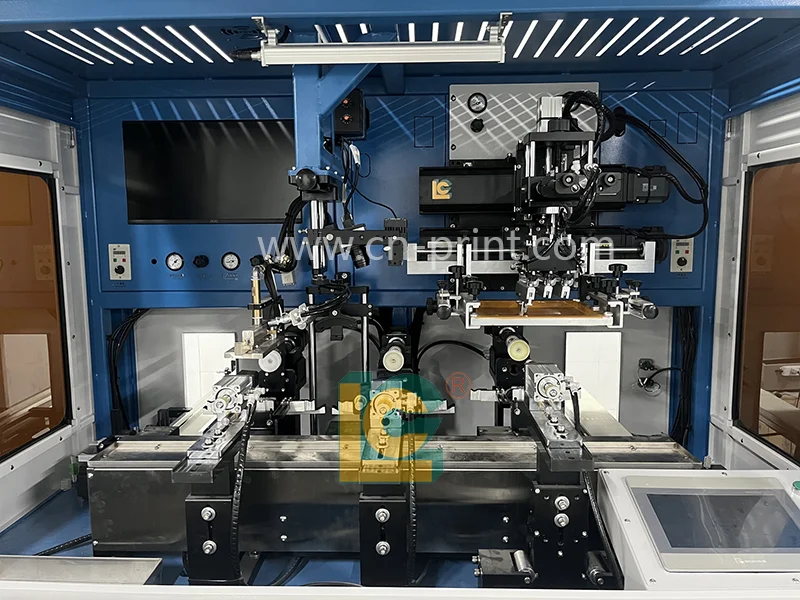

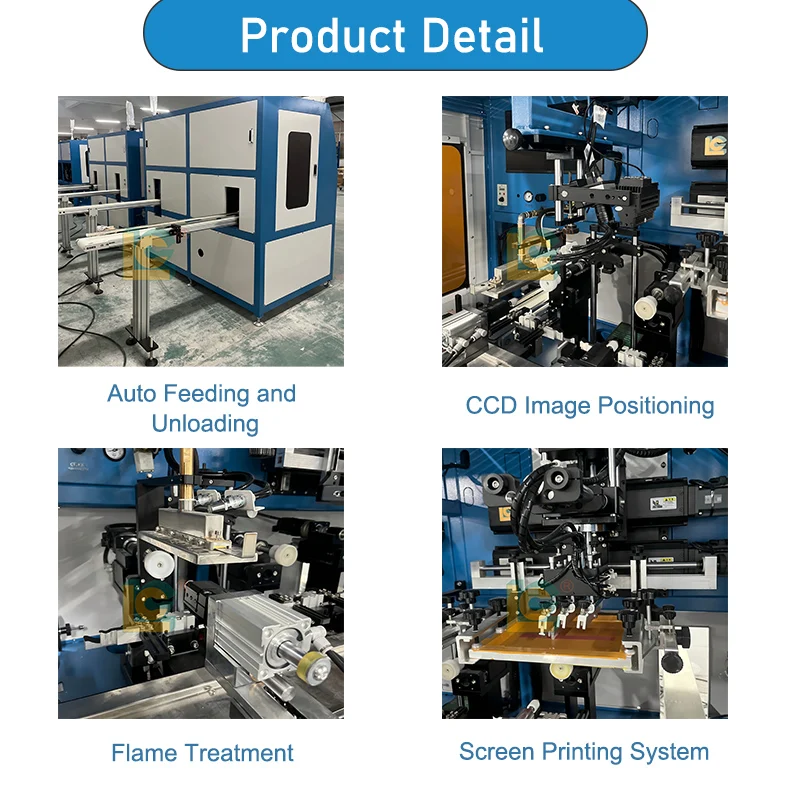

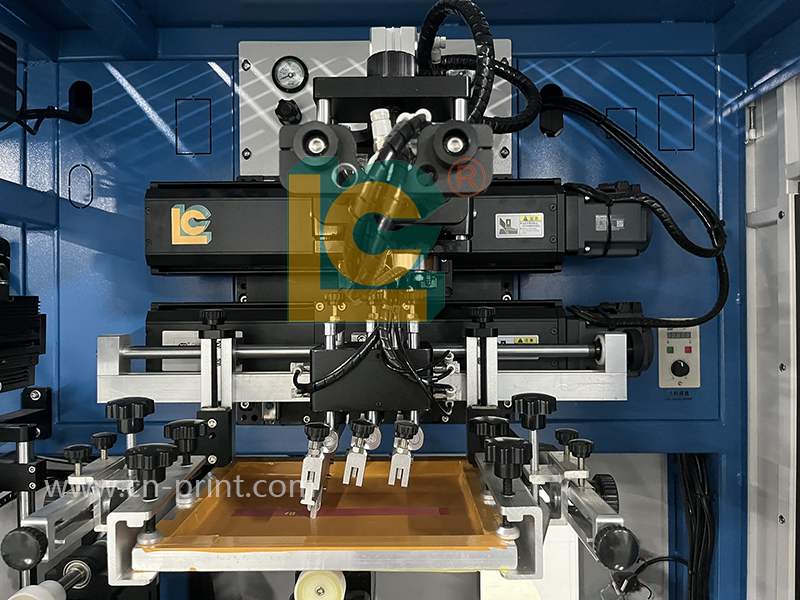

* It is mainly composed of automatic bottle feeding structure, automatic dust removal device, automatic feeding structure of manipulator, transmission structure of full servo system, automatic printing and brushing main body (printing system).
* Using modular programmable processor and touch screen display control system, running more smoothly.
* The fixture is easy to replace the bottle shape, simple debugging and installation, more convenient operation.
* Machine stability, high precision; You can also choose to install UV light solid treatment system and screen heating system, suitable for UV ink and high temperature ink arbitrary switch.
Specification
Circle printing diameter
ф15mm~ф100mm
Circular printing height
20mm~240mm
Flat printing diameter
R20mm~R180mm
Flat printing height
20mm~240mm
Power requirements
AC220V 1Phase/AC380V 3Phase 50Hz /60Hz
Rated power
7.5KW
Pressure requirements
5 ~ 8bar
* The fastest printing speed: when printing circular products, the fastest printing speed is about 50-60pcs/min, when printing flat bottles, the fastest printing speed is 70Pcs/ min (note: with bronzing function, the fastest printing speed is 40-50pcs/min).​
Printing Sample
application:
This machine is suitable for glass packaging, bottle packaging, cosmetic packaging, medicine and food packaging containers,materials can be glass, plastic, ceramic, metal and so on.
Packing & Delivery
